Page 2: Precaution Before Installation

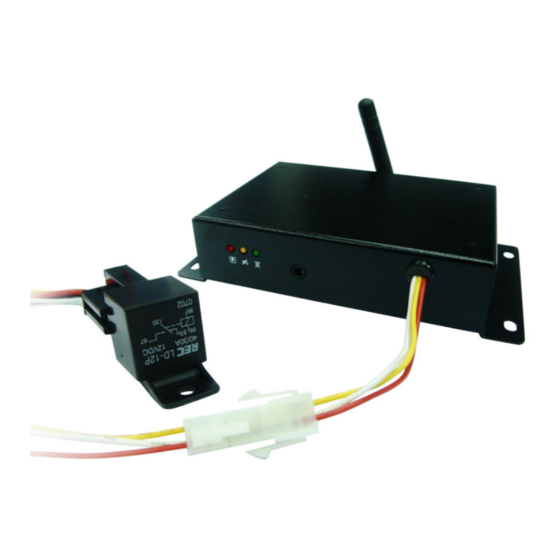

AVL-901(D) Hardware Quick Installation Guide 1. Precaution before Installation Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem. -
Page 3: Installation
3. Installation Step 1: Install GPRS Antenna Connect the GPRS Antenna to the unit. Fasten the connection by turning the screw in the bottom. Please do not swing round the antenna itself. Step 2: Install SIM Card (1) Unscrew and remove the back cover of your locator. Push the holder top upward to loose it. -
Page 4: Power Charging
4. Power Charging ( * This should be done by the professional technician.) The signal cable connecting to car alarm system will enable the device to send an alert SMS to the preset phone number, if car alarm is activated. The cables connecting to the relay box, then to starter motor circuit is for car owner to stop the car engine remotely by sending a SMS command to the AVL. -
Page 5: Orange Led
5. Description of the LED Indicators System State （RED LED） Flash Constant normal Glow Constant in trouble or no power Dark 6. Inspection Items after Installation After connected to the power source, the RED LED indicator should be “constant glow”. The GREEN LED for GSM/GPRS state should “flash”... - Page 6 Track GPS Location by SMS You can get the latitude & longitude data by sending “111#Password” SMS (short message) command code to the GPS Tracker. Input the received latitude & longitude data to Google Earth (from earth.google.com) fix in the map. Please find below the example. Step1.
- Page 7 GooTrac Software Quick Installation Guide 1. Requirements (1) Make sure you did have installed a GSM SIM Card to AVL; and its GPRS function had been enabled. (2) FIX IP Address is required for GooTrac Server (the computer to receive the GPS data sent by GPRS from the vehicle trackers);...
- Page 8 3. Set Up The GPS Tracker First of all, run GooTrac software in your PC. Step1. Set GPRS APN - send SMS command 600# to the tracker. 600#Password #APN#IP#User#APN_Password ex. 600#8888#airtelnet.es#0.0.0.0#vodafone#vodafone (You can find the right command in http://www.gopasstech.com by clicking "send my GPRS APN command".) Step2.
- Page 9 4. Data Switch -> Client After set up the GPS tracker, please go to -> "Add" and key-in the columns as follows. Target IP: 59.120.2.234 Username: iptest Client Activate The default delivery listen port The IP address of the data server "GooTrac”...
- Page 10 5. Get GPS data The position GPRMC data will be displayed in GooTrac main screen; you can start to track over Google Earth. - Press down icon will have the GPS position data forwarded to Google Earth. - Pick “ Select Button”...
- Page 11 How to set GPRS APN? Please check with your telecom company for the following data beforehand. The Access Point Name (APN) of the telecom company. Is the User_Name and APN_Password required for the APN setting? You can refer to http://www.gopass.com.tw/other/APN_Table.pdf for the examples of the GPRS APN set-up.
- Page 12 Why I can’t find the IMEI# of my device in GooTrac main screen? It is because the position data of your device still can not be sent back to GooTrac server by GPRS. There must be some problem with the SIM card, or the GPRS APN settings, or some other telecom problem.
- Page 13 For software update or technique support, please contact your local distributor or contact: http://www.gopasstech.com E-mail: support@gopasstech.com...
