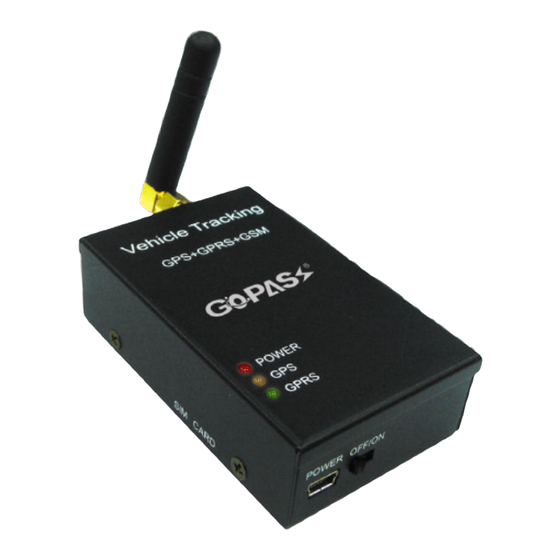

GoPass AVL-900M Quick Start Manual

Tracking kit
Hide thumbs Also See for AVL-900M:
Table of Contents

Advertisement

Quick Links

Download this manual

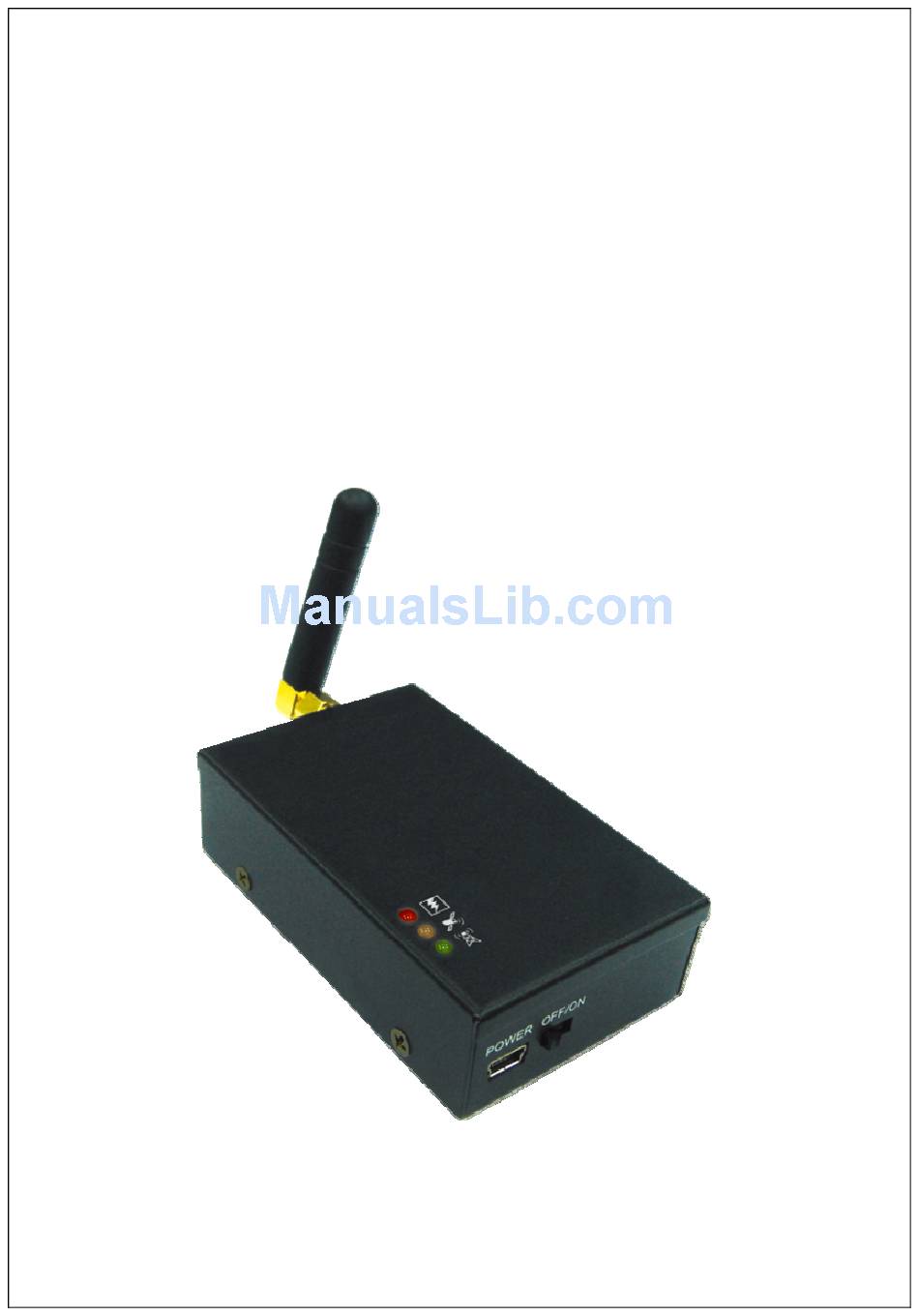

A
V
L
A
V
L
Q
u
i
c
k
Q
u
i
c
k
-
9
0
0
-
9
0
0
S
t
a
r
t
S
t
a
r
t
(
M
)
(
M
)
G
u
i
d
e
G
u
i
d
e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVL-900M and is the answer not in the manual?

Questions and answers

Related Manuals for GoPass AVL-900M

Summary of Contents for GoPass AVL-900M

  • Page 2: Precaution Before Installation

    AVL-900(M) Hardware Quick Installation Guide 1. Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem.
  • Page 3 3. Installation Step 1: Install GPRS Antenna Connect the GPRS Antenna to the unit. Fasten the connection by turning the screw in the bottom. Please do not swing round the antenna itself. Step 2: Install SIM Card (1) Unscrew and remove the back cover of the device. Push the holder top upward to loose it.

  • Page 4: Power Charging

    4. Power Charging Note: Microphone jack will be LOCK once connecting to Vehicle Tracker. Method 1: Connect car charger to the car cigarette lighter directly. Method 2: Connect the USB cable to the back-up battery. Method 3: Connect to the wire with permanent power, such as the wire for turning lights...

  • Page 5: Description Of The Led Indicators

    5. Description of the LED Indicators System State （RED LED） Flash Constant normal Glow Constant in trouble or no power Dark 6. Inspection Items after Installation After connected to the power source, the RED LED indicator should be “constant glow”. The GREEN LED for GSM/GPRS state should “flash”...
  • Page 6 7. Operating Instructions (1) Geo-fence (Park) Function When park your car or leave your valuable asset at a certain place, you can send a SMS command code “888#Password” to activate “Park” (Geo-fence) function to guard it. The unit will send a SMS message to the preset phone number, when someone moves the car or the asset without permission over a preset distance.
  • Page 7 Track GPS Location by SMS You can get the latitude & longitude data by sending “111#Password” SMS (short message) command Code to the GPS Tracker. Input the received latitude & longitude data to Google Earth then you can find the position fix in the map. Please find below the example. Step1.

  • Page 8: Installation

    SMS Track Software Quick Installation Guide 1. Requirements (1) A PDA Phone with Windows CE or Mobile 5.0 OS. (2) A navigation map installed in the PDA Phone. (3) A GSM SIM card installed in the GPS Tracker. 2. Installation Step1.
  • Page 9 Step4. The following screen will prompt. The left column is for the name of the Step5. If your set up of the Virtual COM Port is successful, the system will ask you to reboot your PDA Phone. Please click “Yes” to reboot the device, and complete the installation of Virtual COM Port.
  • Page 10 3. Get GPS Position Data Step1. Go to Tools the name you want to track, and click OK to close this screen. Then go to Track screen. like to track) Step2. Then go to “Track” screen. Send the command to the tracker; you will receive the position data from the tracker in a few seconds.
  • Page 11 Step3. Then, open the mapping software. The image of appear as a following figure. This figure is to set the source of GPS data. Set the GPS Port is to be the same as the Virtual COM Port. We set SMS Track in COM8;...
  • Page 12 For software update or technique support, please contact your local distributor or contact: http://www.gopasstech.com E-mail: support@gopasstech.com...

This manual is also suitable for:

Avl-900
