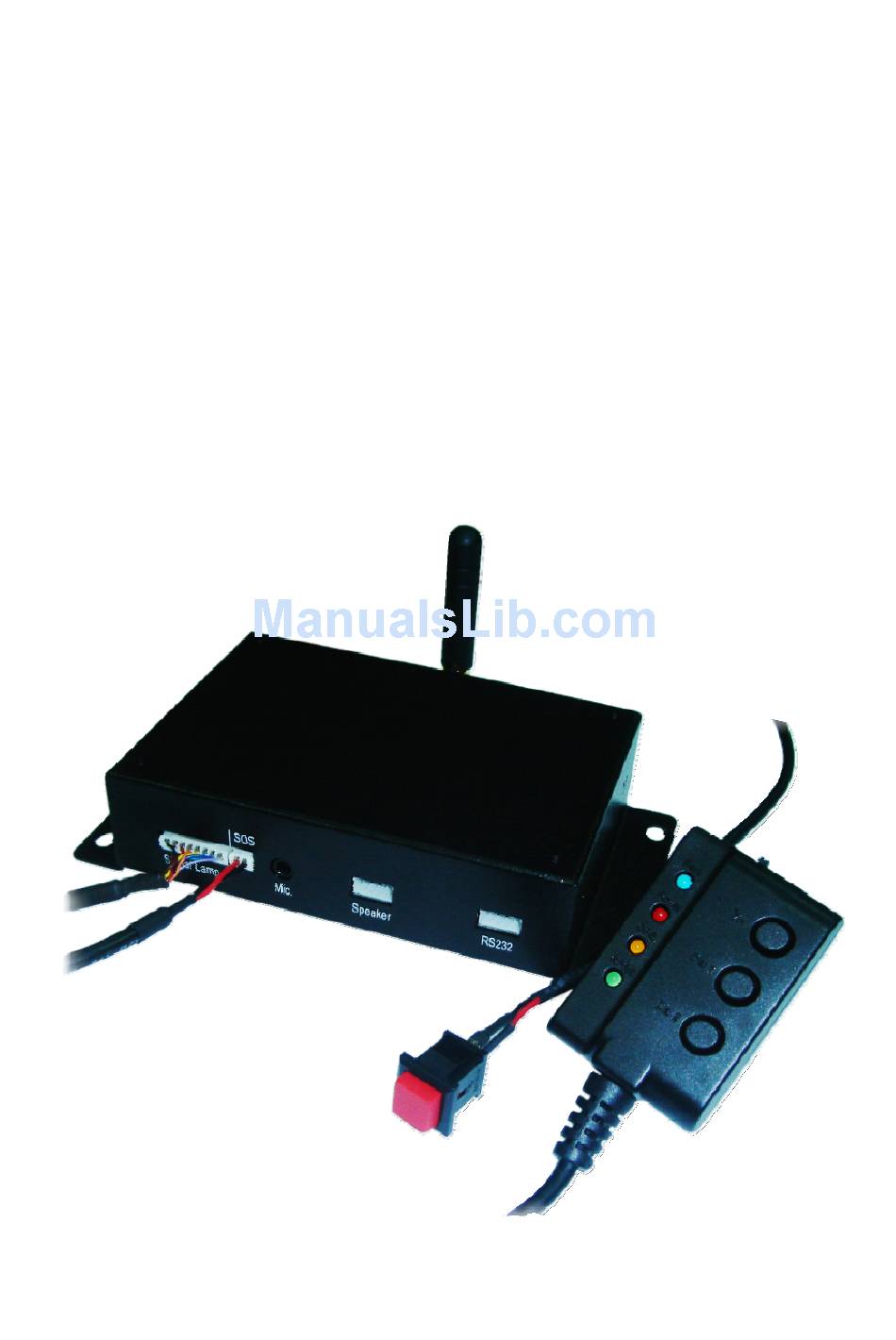

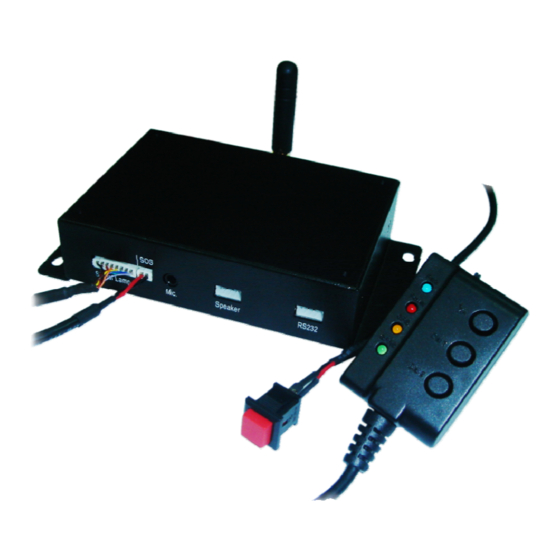

GoPass AVL-901C Quick Start Manual

Tracking kit
Hide thumbs Also See for AVL-901C:

Advertisement

Quick Links

Download this manual
A
V
A
V
Q
u
i
c
Q
u
i
c
L
-
9
L
-
9
k
S
t
a
k
S
t
a
0
1
(
0
1
(
r
t
G
r
t
G
C
)
C
)
u
i
d
e
u
i
d
e

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVL-901C and is the answer not in the manual?

Questions and answers

Related Manuals for GoPass AVL-901C

Summary of Contents for GoPass AVL-901C

  • Page 2: Precaution Before Installation

    Hardware Quick Installation Guide 1. Precaution before Installation Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem.

  • Page 3: Installation

    3. Installation Step 1: Install GPRS Antenna Connect the GPRS Antenna to the unit. Fasten the connection by turning the screw in the bottom. Please do not swing round the antenna itself. Step 2: Install SIM Card (1) Unscrew and remove the back cover of your locator. Push the holder top upward to loose it.
  • Page 4 4. Operating Instructions (1) Geo-fence (Park) Function Slide the Park switch to the left to activate Geo-fence function, the PARK LED will be “constant glow”. AVL-901(C) will send a SMS alert message to the preset phone numbers, if the car is moved beyond the preset distance range. Slide the Park switch back to the right, the PARK LED will shut off;...

  • Page 5: Power Charging

    5. Power Charging * This should be done by the professional technician. 6. Description of the LED Indicators PARK (BLUE LED) Flash Geo-fence function Constant has been activated Glow Go-fence function Constant not yet activated Dark 7. Inspection Items after Installation After connected to the power source, the RED LED Indicator should be “constant glow”.
  • Page 6 Track GPS Location by SMS You can get the latitude & longitude data by sending “111#Password” SMS (short message) command code to the GPS Tracker. Input the received latitude & longitude data to Google (from earth.google.com) Earth Step1. Send a SMS Command Code“111#8888＂to the GPS Tracker. Step2.
  • Page 7 GooTrac Software Quick Installation Guide 1. Requirements (1) Make sure you did have installed a GSM SIM Card to AVL; and its GPRS function had been enabled. (2) FIX IP Address is required for GooTrac Server (the computer to receive the GPS data sent by GPRS from the vehicle trackers);...
  • Page 8 3. Set Up The GPS Tracker First of all, run GooTrac software in your PC. Step1. Set GPRS APN - send SMS command 600# to the tracker. 600#Password #APN#IP#User#APN_Password ex. 600#8888#airtelnet.es#0.0.0.0#vodafone#vodafone (You can find the right command in http://www.gopasstech.com by clicking "send my GPRS APN command".) Step2.
  • Page 9 4. Data Switch -> Client After set up the GPS tracker, please go to -> "Add" and key-in the columns as follows. Target IP: 59.120.2.234 Username: iptest Client Activate The default delivery listen port The IP address of the data server "GooTrac”...
  • Page 10 5. Get GPS data The position GPRMC data will be displayed in GooTrac main screen; you can start to track over Google Earth. - Press down icon will have the GPS position data forwarded to Google Earth. - Pick “ Button”...
  • Page 11 How to set GPRS APN? Please check with your telecom company for the following data beforehand. The Access Point Name (APN) of the telecom company. Is the User_Name and APN_Password required for the APN setting? You can refer to http://www.gopass.com.tw/other/APN_Table.pdf for the examples of the GPRS APN set-up.
  • Page 12 Why I can’t find the IMEI# of my device in GooTrac main screen? It is because the position data of your device still can not be sent back to GooTrac server by GPRS. There must be some problem with the SIM card, or the GPRS APN settings, or some other telecom problem.
  • Page 13 SMS Command Code Setting Code Explanation of the Functions Get version data Set the name of the device Get the data set in 003# Restore the password to the default value “8888” Reset to the default setting Reboot the device Read the volt data Send mobile station data or not, if GPS can not get a position fix...
  • Page 14 Get the data set in 050# command Enable data log function (record the GPS position data, if GSM signal can not be received). Get the data set in 053# command Send back current position data by SMS; and then call back for voice monitoring Send back current position data by SMS;...
  • Page 15 Activate or shut off the function for getting position data thru phone call Phone numbers should either country code + area code + phone number ; or area code w/o the prefix “o” + phone number. Ex. +886 4 12345678 4 12345678 (without prefix 0) DTMF Enable Set the present time...
  • Page 16 Send back GPS data in GPRMC format Send back position data in GPRMC format for one time only. Set the phone numbers for 200#, 204# and 213# to send back data command to send back data Get the phone numbers set by 202# Send back GPS data in NMEA format for the tag set in 212#, with CallerID (reply message format:...
  • Page 17 Send back GPS data in NMEA format Send back IMEI (International Mobile Equipment Identity) number of the device Send back IMSI code of the SIM card put in the device Set the extra column data (Machine Name and IMEI, IMSI) to be added & sent back, in response to all commands Get the setting value for #232 Not to send back data if the speed is...
  • Page 18 Set auto answering phone call mode (SMS/ GPRS) Set how to send back SOS data Set the phone numbers for the device to send back the SMS message, when SOS button is pressed down cancel SOS status and return to normal condition Get the phone number list of the ones who receive the SOS emergency calls...
  • Page 19 Set the time interval for the device to send back the SMS message, if the car has been moved over the preset geo-fence range Set Geo-fence range in meters. The device will send SMS message to the preset mobile number if the range is over the preset distance Set the mode for Geo-fence Park function There are 2 modes: SMS or TEL Get the setting details about Geo-fence...
  • Page 20 For software update or technique support, please contact your local distributor or contact: http://www.gopasstech.com E-mail: support@gopasstech.com...
