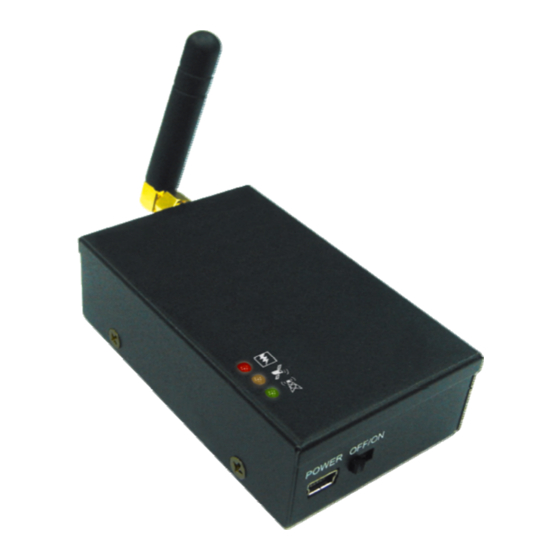

GoPass AVL-900R Quick Start Manual

Tracking kit
Hide thumbs Also See for AVL-900R:
Table of Contents

Advertisement

Quick Links

Download this manual

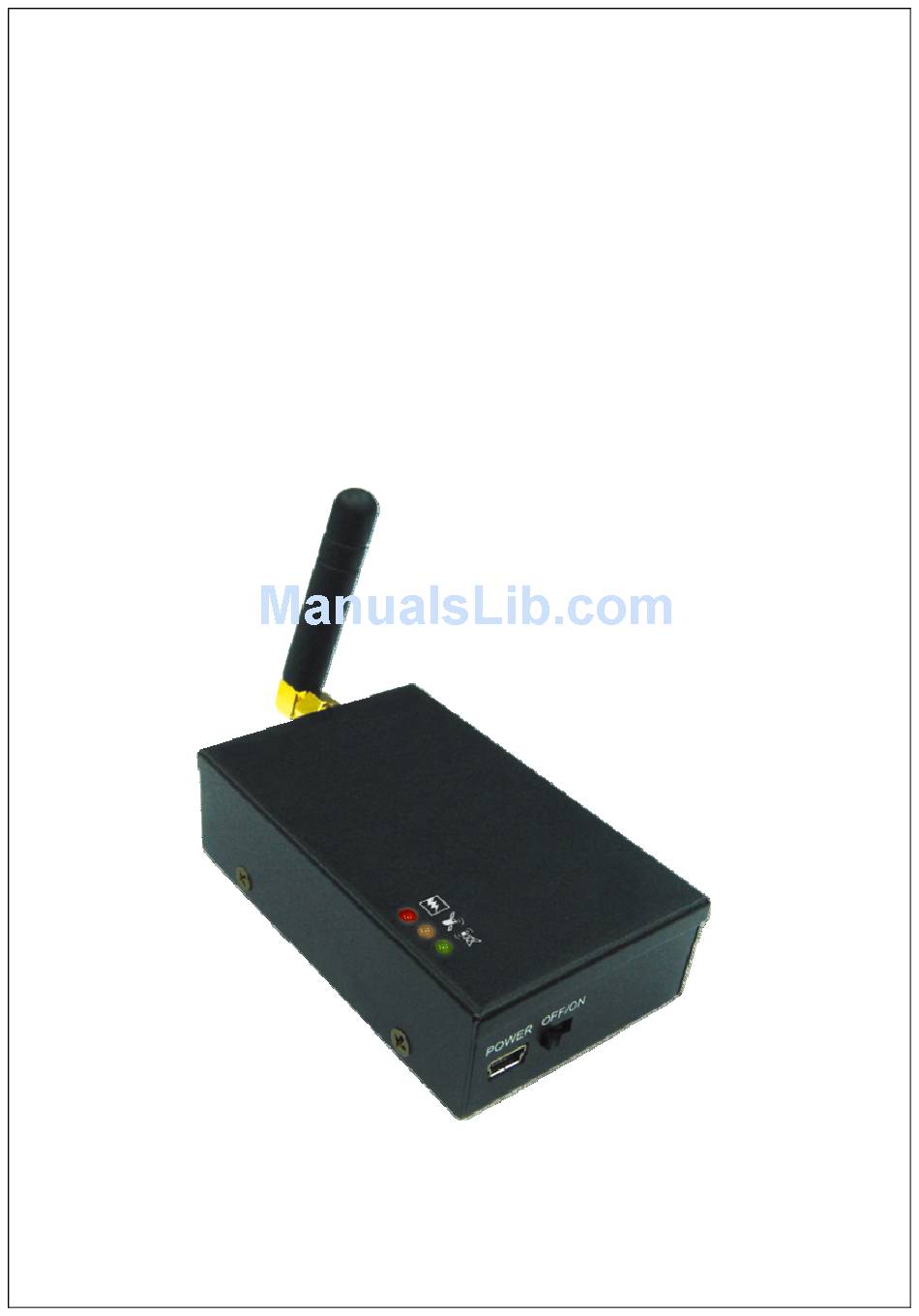

A
V
L
-
9
0
0
(
R
)
A
V
L
-
9
0
0
(
R
)
Q
u
i
c
k
S
t
a
r
t
G
u
i
d
e
Q
u
i
c
k
S
t
a
r
t
G
u
i
d
e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVL-900R and is the answer not in the manual?

Questions and answers

Related Manuals for GoPass AVL-900R

Summary of Contents for GoPass AVL-900R

  • Page 2: Precaution Before Installation

    AVL-900(R) Hardware Quick Installation Guide 1. Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem.

  • Page 3: Installation

    3. Installation Step 1: Install GPRS Antenna Connect the GPRS Antenna to the unit. Fasten the connection by turning the screw in the bottom. Please do not swing round the antenna itself. Step 2: Install SIM Card (1) Unscrew and remove the back cover of the device. Push the holder top upward to loose it.

  • Page 4: Power Charging

    4. Power Charging Note: Microphone jack will be LOCK once connecting to Vehicle Tracker. Method 1: Connect car charger to the car cigarette lighter directly. Method 2: Connect the USB cable to the back-up battery. Method 3: Connect to the wire with permanent power, such as the wire for turning lights...

  • Page 5: Description Of The Led Indicators

    5. Description of the LED Indicators System State （RED LED） Flash Constant normal Glow Constant in trouble or no power Dark 6. Inspection Items after Installation After connected to the power source, the RED LED indicator should be “constant glow”. The GREEN LED for GSM/GPRS state should “flash”...
  • Page 6 Track GPS Location by SMS You can get the latitude & longitude data by sending “111#Password” SMS (short message) command Code to the GPS Tracker. Input the received latitude & longitude data to Google Earth then you can find the position fix in the map. Please find below the example. Step1.
  • Page 7 GooTrac Software Quick Installation Guide 1. Requirements (1) Make sure you did have installed a GSM SIM Card to AVL; and its GPRS function had been enabled. (2) FIX IP Address is required for GooTrac Server (the computer to receive the GPS data sent by GPRS from the vehicle trackers);...
  • Page 8 3. Set Up The GPS Tracker First of all, run GooTrac software in your PC. Step1. Set GPRS APN 600#Password #APN#IP#User#APN_Password ex. 600#8888#airtelnet.es#0.0.0.0#vodafone#vodafone (You can find the right command in http://www.gopasstech.com by clicking "send my GPRS APN command".) Step2. Set IP Address 999#Password#ServerIP#Port ex.999#8888#59.120.2.234#3000 - send the data to GoPass server (Go to http://www.gopasstech.com;...
  • Page 9 4. Data Switch -> Client After set up the GPS tracker, please go to "Add" and key-in the columns as follows. Target IP: 59.120.2.234 Username: iptest Client Activate The default delivery listen port The IP address of the data server "Tool"...
  • Page 10 5. Get GPS data The position GPRMC data will be displayed in GooTrac main screen; you can start to track over Google Earth. - Press down icon will have the GPS position data forwarded to Google Earth. - Pick “ Select Button”...
  • Page 11 Why I can’t find the IMEI# of my device in GooTrac main screen? It is because the position data of your device still can not be sent back to GooTrac server by GPRS. There must be some problem with the SIM card, or the GPRS APN settings, or some other telecom problem.
  • Page 12 For software update or technique support, please contact your local distributor or contact: http://www.gopasstech.com E-mail: support@gopasstech.com...
