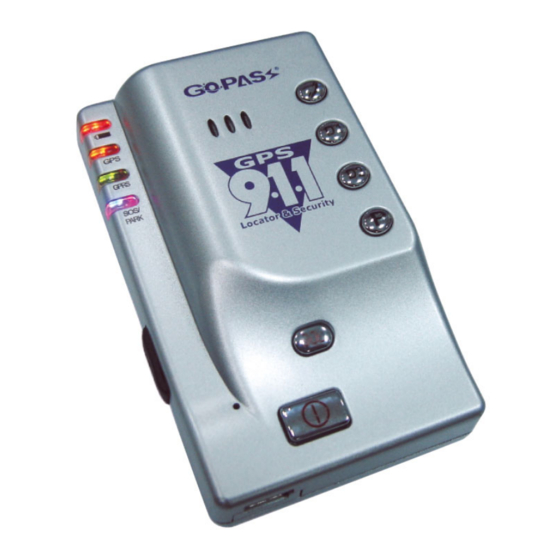

GoPass GPS-911R Quick Start Manual

Tracking kit
Hide thumbs Also See for GPS-911R:
Table of Contents

Advertisement

Quick Links

Download this manual
G
P
G
P
Q
u
i
c
k
Q
u
i
c
k
S
-
9
1
S
-
9
1
S
t
a
S
t
a
1
(
R
1
(
R
r
t
G
u
r
t
G
u
)
)
i
d
e
i
d
e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS-911R and is the answer not in the manual?

Questions and answers

Related Manuals for GoPass GPS-911R

Summary of Contents for GoPass GPS-911R

  • Page 2: Precaution Before Installation

    GPS-911 Hardware Quick Installation Guide 1. Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem.

  • Page 3: Installation

    3. Installation Step1. Fully charge the battery for at least 8 hours before your first use. Step2. Install SIM Card: (1) Remove the back cover of the device as illustrated. (2) Push the holder top (with an ellipse hole) leftward to loose it. (3) Pull the holder top up.

  • Page 4: Operating Instructions

    4. Operating Instructions (1) Power On/Off Power On: Step1. When it is off, press the power button for 2 seconds to switch on the power. Step3. Some 15 seconds later, GPRS LED starts to flash swiftly for 10 times. Power Off: When it is on, press the power button for 2 seconds to switch off the power;...
  • Page 5 (2) SOS Emergency Help Function When SOS button is pressed, SOS LED will flash; GPS-911 will send a SMS message for emergency help. The ones receive the message can activate the voice monitoring function, and offer assistance in time. The phone numbers list can be set by the users. (3) Conversation Function Call In: One can make phone call to GPS-911 by simply dialing the SIM card number.

  • Page 6: Battery Charging

    5. Battery Charging Method 1: Connect the USB cable Method 2: Connect car charger to the car cigarette lighter directly. Method 3: Connect the USB cable 6. Description of the LED Indicators Charge (RED LED) Flash Constant Battery charging Glow Constant not charging;...
  • Page 7 Track GPS Location by SMS You can get the latitude & longitude data by sending “111#Password” SMS (short message) command Code to the GPS Tracker. Input the received latitude & longitude data to Google Earth then you can find the position fix in the map. Please find below the example. Step1.
  • Page 8 GooTrac Software Quick Installation Guide 1. Requirements (1) Make sure you did have installed a GSM SIM Card to AVL; and its GPRS function had been enabled. (2) FIX IP Address is required for GooTrac Server (the computer to receive the GPS data sent by GPRS from the vehicle trackers);...
  • Page 9 3. Set Up The GPS Tracker First of all, run GooTrac software in your PC. Step1. Set GPRS APN 600#Password #APN#IP#User#APN_Password ex. 600#8888#airtelnet.es#0.0.0.0#vodafone#vodafone (You can find the right command in http://www.gopasstech.com by clicking "send my GPRS APN command".) Step2. Set IP Address 999#Password#ServerIP#Port ex.999#8888#59.120.2.234#3000 - send the data to GoPass server (Go to http://www.gopasstech.com;...
  • Page 10 4. Data Switch -> Client After set up the GPS tracker, please go to "Add" and key-in the columns as follows. Target IP: 59.120.2.234 Username: iptest Client Activate The default delivery listen port The IP address of the data server "Tool"...
  • Page 11 5. Get GPS data The position GPRMC data will be displayed in GooTrac main screen; you can start to track over Google Earth. - Press down icon will have the GPS position data forwarded to Google Earth. - Pick “ Select Button”...
  • Page 12 Why I can’t find the IMEI# of my device in GooTrac main screen? It is because the position data of your device still can not be sent back to GooTrac server by GPRS. There must be some problem with the SIM card, or the GPRS APN settings, or some other telecom problem.
  • Page 13 For software update or technique support, please contact your local distributor or contact: http://www.gopasstech.com E-mail: support@gopasstech.com...
