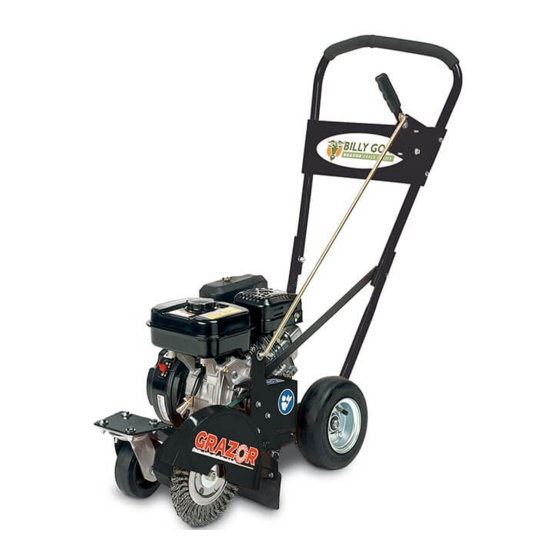

GRAZOR Owner's Manual
8" PREMIUM HEAVY
DUTY REPLACEMENT
BRUSH
OEM quality
replacement wire
brush.
P/N 600172
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Part No 610501
®
GRAZOR
Owner's Manual
GZ550H
Accessories
8" STANDARD
DRIVE BELT
REPLACEMENT
BRUSH
Standard
Original
replacement wire
equipment belt
brush.
for replacement.
P/N 610140
P/N 610420
Original Instructions
ENGINE
PULLEY
Original
equipment pulley
for replacement.
P/N 610417
1
BRUSH DRIVE
PULLEY
Original
equipment pulley
for replacement.
P/N 610403
610501_A_HI

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRAZOR GZ550H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Billy Goat GRAZOR GZ550H

  • Page 1 GRAZOR Owner’s Manual ® GRAZOR Owner's Manual GZ550H Accessories 8" PREMIUM HEAVY 8" STANDARD ENGINE BRUSH DRIVE DRIVE BELT DUTY REPLACEMENT REPLACEMENT PULLEY PULLEY BRUSH BRUSH OEM quality Standard Original Original Original replacement wire replacement wire equipment belt equipment pulley equipment pulley brush.
  • Page 2: Table Of Contents

    GRAZOR Owner’s Manual CONTENTS SPECIFICATIONS AND SAFETY INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING ILLUSTRATED PARTS & PART LISTS 10-11 Go to http://www.billygoat.com for translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits. Part No 610501 610501_A_HI...
  • Page 3: Specifications And Safety

    GRAZOR Owner’s Manual SPECIFICATIONS GZ550H Engine HP 4.8 (3.6 kW) Engine model GX160UT2QA2 Engine type HONDA OHV Engine fuel capacity 3.3 qt. (3.1 L) Engine oil capacity 0.63 qt. (0.6 L) Total unit weight: 89# (38.6 kg) Max. operating slope SAFETY WARNING This product can expose you to chemicals including gasoline engine exhaust, which is known to the State...
  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Grazor. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List.The correct position for each label may be determined by referring to the Figure and Item numbers shown.
  • Page 5: Packing Checklist & Assembly

    GRAZOR Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled except for the upper handle assembly, lower handles, handle brace, brush lift rod, and brush. READ all safety instructions before assembling unit.
  • Page 6: Operation

    GRAZOR Owner’s Manual OPERATION 1. Do not operate product when barefoot or wearing open sandals. Always wear safety footwear, pants or slacks that cover your legs. 2. DO NOT use product on graveled surfaces. 3. Never operate this product without good visibility or light. 4.
  • Page 7 GRAZOR Owner’s Manual *****TIPS***** OPERATION A side-to-side sweeping motion is the quickest way to remove surface vegetation from crevices, even if deeper crevice cleaning is desired. After removing surface vegetation, the crevice will be more visible for a deeper cleaning. Power Brush Safety Requirements WARNING: In normal power brushing operations, the material being removed such as burrs, scale, dirt, weld slat, or other residue, will fly off the brush with considerable force along with brush filaments, which break off due to fatigue.
  • Page 8: Maintenance

    4. Slide the brush (item 6) sideways off of the bearing shaft. 5. Install new brush over the shaft. NOTE: Be sure to use the nylon bushing that comes with the Billy Goat replacement brush to insure proper fit between the brush and the shaft.
  • Page 9: Troubleshooting

    GRAZOR Owner’s Manual TIRE AIR PRESSURE Check at regular intervals and maintain. Rear Tires - 24 Psi (17 kPa). TROUBLESHOOTING Problem Possible Cause Solution Engine will not start Stop switch off. Throttle in off position. Engine Check stop switches, throttle, choke not in full choke position.
  • Page 10: Illustrated Parts & Part Lists

    GRAZOR Owner’s Manual GZ PARTS DRAWING Part No 610501 610501_A_HI...
  • Page 11 GRAZOR Owner’s Manual GZ PARTS LIST item PARTS GZ550H LIST Part No. Bushing Pivot Frame 360183 Label Hot Engine EN/SP Grip Handle 1" X 13" 400570 Screw self tap 1/4-20 x 5/8 type F 890359 Label Danger 600117 Brush 8" Wire Heavy Duty Premium* 600172 Caster 5"...
