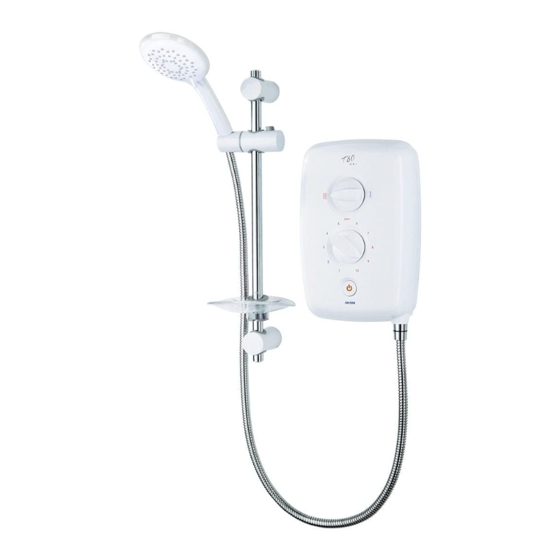

T80 GSI
electric shower
Installation and
operating
instructions
I
nstallers please note these InstructIons
are to be left wIth the user
The showerhead and hose supplied with this product are an integral
part of the safety of your shower. Failure to use genuine Triton
parts may cause injury and will invalidate your warranty
1
2181057I - January 2016
Advertisement
Table of Contents
Related Manuals for Triton T80 GSI
Summary of Contents for Triton T80 GSI
- Page 1 The showerhead and hose supplied with this product are an integral part of the safety of your shower. Failure to use genuine Triton parts may cause injury and will invalidate your warranty 2181057I - January 2016...
- Page 2 INTRODUCTION - PLEASE READ PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using.
- Page 3 DO NOT operate the shower if water ceases to flow during use or if water has entered inside the unit because of an incorrectly fitted cover. WARNING: If restarting the shower immediately after stopping, be aware that a slug of IMPORTANT - GENERAL GUIDANCE NOTES hot water will be expelled for the first few seconds.
- Page 4 GENERAL ADVICE TO USERS IMPORTANT ADVICE TO USERS The following points will help you understand how the shower operates: a. The electric heating elements operate at a COMISSIONING ADVICE constant rate at your chosen power setting. When first installed the unit will be empty. It is the rate of the water passing through the heater can which determines the water It is essential the unit should contain water...
-
Page 5: Table Of Contents
The shower installation MUST be carried out by a suitably qualified person, in the sequence of this instruction book. To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Telephone:... -
Page 6: Specifications
SECTION check list SPECIFICATIONS ELECTRICAL Nominal power - rating at 240V Nominal power - rating at 230V 8.5kW – (40A MCB rating) 7.8kW – (40A MCB rating) 9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating) 10.5kW – (45A MCB rating) 9.6kW –... -
Page 7: Dimensions & Cable/Water Entry Points
SECTION DIMENSIONS & ENTRY POINTS check list Fig.1 DIMENSIONS 208mm 108mm Fig.2 ENTRY POINTS = Back = Others WATER Left: Bottom, Back, Top & Side. Right: Bottom, Back & Side. = Back = Others CABLE Left: Bottom, Back, Top & Side. Right: Bottom, Back &... -
Page 8: Electrical Requirements
SECTION ELECTRICAL REQUIREMENTS check list ELECTRICAL REQUIREMENTS Triton Showers, Fig.3 Triton Road, Nuneaton, Warwickshire, CV11 4NR WARNING! W-006-A xxxx THIS APPLIANCE MUST BE EARTHED The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be suf cient for the amperage required. - Page 9 SECTION Continued A 45 amp double pole isolating switch with 9.3 In any event, it is essential that individual a minimum contact gap of 3 mm in both site conditions are assessed by a competent electrician in order to determine the correct poles must be incorporated in the circuit.
-
Page 10: Installing The Shower
SECTION check list Installation - SITING OF THE SHOWER SITING OF THE SHOWER The installation must be in accordance with Mains electric supply Water Regulations/Bylaws - see page 2 for (via double pole switch) water specifications • If it is intended to operate the shower at pressures above the maximum or below the Double minimum stated, contact Customer Service... - Page 11 SECTION Continued IMPORTANT: Water regulations (fig.6) WARNING • It is required that the showerhead be The shower MUST NOT be ‘constrained by a fixed or sliding attachment positioned where it will be so that it can only discharge water at a point subjected to freezing conditions.
-
Page 12: Plumbing Installation
SECTION check list Installation - PLUMBING INSTALLATION PLUMBING INSTALLATION IMPORTANT INFORMATION Plumbing to be carried out before wiring The outlet of the shower acts as a vent • DO NOT use jointing compounds on any and must not be connected to anything pipe fittings for the installation. -
Page 13: Electrical Installation
SECTION check list Installation - ELECTRICAL INSTALLATION ELECTRICAL INSTALLATION NOTE: Deviations from the designated entry IMPORTANT: Switch off the electricity supply at the mains before proceeding. points will invalidate product approvals. The cable entry points are listed on page 3. •... - Page 14 SECTION Continued The shower cover has been designed with four Fig.9 Left hand side “cut out” bottom pipe access points and the top rear of the backplate has been designed with one “cut backplate out” top rear - (fig.9) shows the top access "Cut out"...
- Page 15 SECTION Continued Fitting Procedure Fig.10 • Turn off water supply either at the mains stopvalve or the isolating stopvalve. • Temporarily connect the mains water supply to the inlet of the shower using a 15mm x 15mm compression fitting. Fixing hole •...
- Page 16 SECTION Continued • Route the cable into the shower unit for Fig.11 connection to the terminal block (fig.11) as follows: Earth cable to terminal marked Terminal Neutral cable to terminal marked N block Live cable to terminal marked...
- Page 17 SECTION Continued • (fig.12) shows a schematic wiring diagram. IMPORTANT: When connecting the cable fully tighten the terminal block screws and make sure that no cable insulation is trapped under the screws. Loose connections can result in cable overheating. NOTE: The supply cable earth conductor must be sleeved.
-
Page 18: Fitting The Cover
SECTION check list Installation - FITTING THE COVER FITTING THE COVER Fig.13 IMPORTANT: Before finally fitting the cover, the following steps must be taken: a. Check the plumbing connections are watertight. b. Check the terminal block screws are fully tightened. c. - Page 19 SECTION Continued 1. With the cover off the shower - turn the POWER selector spindle clockwise until the flat section is on the left hand side (fig.14). 2. With the cover off the shower - turn the stabi- liser valve spindle fully clockwise until resistance is felt (fig.15).
-
Page 20: Commissioning Procedure
SECTION check list COMMISSIONING !! IMPORTANT !! Fig.18 Power selector WARNING to COLD Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. COMMISSIONING PROCEDURE The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on. -
Page 21: User Operating Instructions
SECTION USER OPERATING INSTRUCTIONS check list OPERATING THE SHOWER - (fig.20) Fig.20 Make sure the commissioning procedure has been carried out. To start the shower • Press the Start/Stop button and water will flow. Power selector To stop the shower •... - Page 22 SECTION Continued To adjust the shower temperature - Economy and High settings only • The water temperature is altered by increasing or decreasing the flow rate of the water through the shower via the temperature control (fig.20). • After obtaining your showering temperature, the knob can be left as the normal setting and should only need altering to compensate for seasonal changes in ambient water...
-
Page 23: Operating Functions
SECTION Continued OPERATING FUNCTIONS NOTE: In normal use, it is in order to leave the TP – Temperature Protection water supply permanently on to the shower unit, but as with most electrical appliances, the During normal operation if the temperature unit MUST be switched off at the isolating exceeds the showering safety limit the power switch when not in use. -
Page 24: Cleaning The Filter - Installers & Service Engineers Only
CLEANING THE FILTER Instructions for installers and service engineers only INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLEANING THE FILTER It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. -
Page 25: Fault Finding/Troubleshooting
See ‘Water too hot’ causes 2.1, 2.2 and 2.3 and cycling hot/cool at temperature limiter. their appropriate action/cures. If it continues intervals. contact Triton Customer Service. 4 Water too cool 4.1 Too much flow. 4.1.1 Reduce flow rate via temperature control. - Page 26 4 Water too cool 4.4 Electrical 4.4.1 Have unit checked by suitably qualified or cold. (continued) malfunction. electrician or contact Triton Customer Service. 4.5 Safety cut-out 4.5.1 Thermal safety cut-out device has operated. operated. Have the unit checked by a suitably qualified engineer or contact Customer Service.
-
Page 27: Spare Parts
SPARE PARTS Rear of outlet Ref. Description Part No. Model Inlet Filter Assembly ..........P22611004 Solenoid Valve ............P22610801 Stabilising Valve ..........P22640800 Pressure Switch Module ........P22611003 Can & Element Assembly ........83314800 ..(8.5kW) 83314810 ..(9.5kW) 83314820 ..(10.5kW) Outlet Pipe and PRD ...........S23511002 Terminal Block ............S82201250 Power Neon ............P22610903 Live Wire Assembly &... - Page 30 WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:...
-
Page 31: Shower Controls - Quick User Guide
SHOWER CONTROLS - QUICK USER GUIDE To START or STOP your shower. The power light will illuminate. To start the shower, press the Start/Stop button. To STOP the shower - press the Start/Stop button, then turn the Turn the isolator switch OFF. main power isolator switch ON To alter the Power and Temperature of your shower. -
Page 32: Service Policy/Uk Guarantee
Warwickshire CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Extended Warranty AVAILABLE NOW. Call 02476 378495 for more details. 22-09-15 TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2015...
