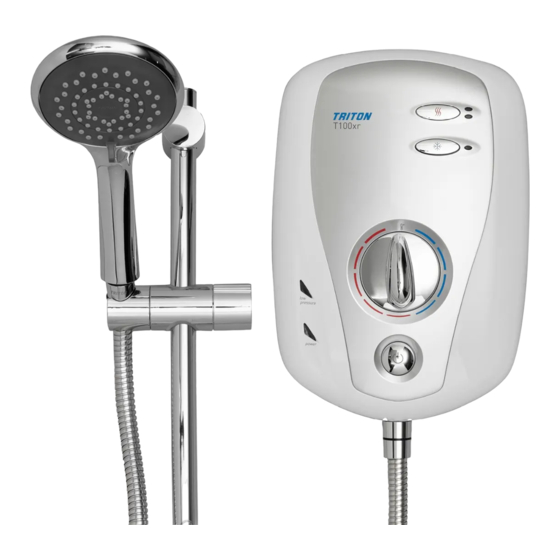

T100XR
electric shower
REGISTER ONLINE
ENTER A PRIZE DRAW
WIN
£100
LOVE2SHOP VOUCHERS
VISIT OUR WEBSITE TODAY
TRITONSHOWERS.CO.UK/REGISTER
PRODUCT REGISTRATION IS ONLY AVAILABLE
THIS OFFER IS NOT VALID OUTSIDE THE UK
TO UNITS PURCHASED & INSTALLED IN THE UK
FOR YOUR SERVICE REFERENCE
NOTE DOWN THE PRODUCT CODE BELOW
(FROM THE FRONT OR TOP OF THE BOX)
ALTERNATIVELY REGISTER BY TEL: 024 7637 8321
INSTALLATION AND OPERATING INSTRUCTIONS
Please read this book thoroughly and familiarise yourself with all instructions before commencing
installation and keep it for future reference.
The shower installation MUST be carried out by a suitably qualified person, in the sequence of
this instruction book.
IMPORTANT SAFETY ADVICE
The shower unit MUST BE switched off at the
isolating switch when not in use. This is a
safety procedure recommended for all
electrical appliances.
The shower head and hose supplied with this
product are a safety critical part of your shower.
Failure to use genuine Triton parts may cause
injury and invalidate your guarantee.
2180463T - October 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T100XR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triton T100XR

Summary of Contents for Triton T100XR

  • Page 1 The shower head and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. ALTERNATIVELY REGISTER BY TEL: 024 7637 8321 INSTALLATION AND OPERATING INSTRUCTIONS Please read this book thoroughly and familiarise yourself with all instructions before commencing installation and keep it for future reference.
  • Page 2 INTRODUCTION - PLEASE READ PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate the appliance if frozen, or suspected of being frozen.
  • Page 3 DO NOT operate the unit if the showerhead or spray hose becomes damaged. DO NOT restrict ow out of shower by placing showerhead in direct contact with your body. DO NOT operate the shower if water ceases to ow during use or if water has entered inside the unit because of an incorrectly tted cover.
  • Page 4 Liquid could seep through the joint between the cover and backplate. To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information.

  • Page 5: Table Of Contents

    PLEASE USE THE FOLLOWING CHECK LIST TO AID YOUR INSTALLATION Tick off as you complete SECTION SECTION Check that the water supply will satisfy requirements ..........SECTION SECTION Check that water & cable entry points of the unit meet requirements ..... SECTION SECTION Check that the electric supply will satisfy requirements ..........
  • Page 6 CONTENTS Page INTRODUCTION IMPORTANT SAFETY INFORMATION & GENERAL GUIDANCE NOTES (please read) GENERAL ADVICE TO USERS - CLEANING ADVICE INSTALLATION CHECK LIST (PLEASE FOLLOW & COMPLETE) SPECIFICATIONS ...................... 7 DIMENSIONS & CABLE/WATER ENTRY POINTS ............8 ELECTRICAL REQUIREMENTS ................9 - 10 INSTALLING THE SHOWER ..............11 - 19 Siting of the shower ...................

  • Page 7: Specifications

    SECTION SECTION check list SPECIFICATIONS ELECTRICAL Nominal power - rating at 240V Nominal power - rating at 230V 8.5kW – (40A MCB rating) 7.9kW – (40A MCB rating) 9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating) 10.5kW – (45A MCB rating) 9.6kW –...

  • Page 8: Dimensions & Cable/Water Entry Points

    SECTION SECTION DIMENSIONS & ENTRY POINTS check list Fig.1 DIMENSIONS 212mm 95mm ENTRY POINTS = Back = Others WATER Right: Bottom back, Bottom, Bottom side Left: None. = Back = Others CABLE Right: Middle back, Top. Left: None. PLEASE NOTE: Deviation from the approved entry points will invalidate product specifications and warranty.

  • Page 9: Electrical Requirements

    Fig.3 - Illustrative purposes only WARNING! W-006-A Triton Showers, THIS APPLIANCE MUST BE EARTHED Triton Road, Nuneaton, Warwickshire, CV11 4NR xxxx The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be suf cient for the amperage required.
  • Page 10 SECTION SECTION Continued A 45 amp double pole isolating switch with 9.3 In any event, it is essential that individual a minimum contact gap of 3mm in both site conditions are assessed by a competent poles must be incorporated in the circuit. electrician in order to determine the correct cable size and permissible circuit length.

  • Page 11: Siting Of The Shower

    SECTION SECTION check list Installation - SITING OF THE SHOWER SITING OF THE SHOWER Mains electric supply The installation must be in accordance with (via double pole switch) Water Regulations/Bylaws - see page 7 for water specifications • If it is intended to operate the shower at pressures above the maximum or below Double the minimum stated, contact Customer...
  • Page 12 SECTION SECTION Continued IMPORTANT: Water regulations (fig.6) WARNING • It is required that the shower head be The shower MUST NOT be ‘constrained by a fixed or sliding attachment positioned where it will be so that it can only discharge water at a point subjected to freezing conditions.

  • Page 13: Plumbing Installation

    SECTION SECTION check list Installation - PLUMBING INSTALLATION PLUMBING INSTALLATION Plumbing to be carried out before wiring • DO NOT use jointing compounds on any pipe fittings for the installation. • DO NOT solder fittings near the shower unit as heat can transfer along the pipework and damage components.

  • Page 14: Electrical Installation

    SECTION SECTION Installation - ELECTRICAL INSTALLATION check list ELECTRICAL INSTALLATION NOTE: Deviations from the designated entry IMPORTANT: Switch off the electricity supply at the mains before proceeding. points will invalidate product approvals. The cable entry points are listed on page 8. •...
  • Page 15 SECTION SECTION Continued • Temporarily connect the mains water supply Fig.9 to the inlet of the shower using a Area to be 15mm x 15mm compression fitting. cut away • Use the backplate as a template making sure it is level and mark the fixing holes (fig.10). •...
  • Page 16 SECTION SECTION Continued • Route the cable into the shower unit for Fig.11 connection to the terminal block (fig.11) as follows: Earth cable to terminal marked Neutral cable to terminal marked N Live cable to terminal marked • Fig.12 shows a schematic wiring diagram. Terminal IMPORTANT: When connecting the cable fully block...

  • Page 17: Fitting The Cover

    SECTION SECTION check list Installation - FITTING THE COVER Fig.13 PLEASE NOTE Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. Valve spindle IMPORTANT DO NOT connect the 10-way ribbon cable before the commissioning procedure >POM-GF30<...

  • Page 18: Commissioning Procedure

    SECTION SECTION !! IMPORTANT !! COMMISSIONING check list WARNING Fig.15 Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. COMMISSIONING PROCEDURE Temperature control at The first operation of the shower is intended minimum to flush out any remaining unit debris and ow setting to make sure the heater unit contains water...

  • Page 19: Connecting The Pcb Cable

    SECTION SECTION check list CONNECTING THE PCB CABLE CONNECTING THE PCB CABLE Fig.17 & REFITTING THE COVER IMPORTANT: After connecting the PCB cable, please check the following before refitting the cover: 1. All plumbing connections are watertight. 2. Terminal block screws are fully tightened. 3.

  • Page 20: User Operating Instructions & Functions

    SECTION SECTION USER OPERATING INSTRUCTIONS check list OPERATING THE SHOWER (fig.18) Fig.18 • When the electricity supply to the shower is switched on at the isolating switch, the power indicator will light. To start the shower High & • Press the START/STOP button and water will Economy begin to flow.
  • Page 21 SECTION SECTION Continued To adjust the shower temperature - Fig.19 Economy and High settings only • The water temperature is altered by increasing or decreasing the flow rate of the water through the shower via the temperature control (fig.19). • After obtaining your showering temperature, the knob can be left as the normal setting and should only need altering to compensate for seasonal changes in ambient water...
  • Page 22 SECTION SECTION Continued OPERATING FUNCTIONS Power on indicator • When the electricity supply to the shower is switched on at the isolating switch, the power indicator will light up. Low pressure indication (fig.20) If the water pressure has fallen below the minimum required for correct operation of the shower, resulting in the low pressure cut-out Low pressure...

  • Page 23: Cleaning The Filter - Installers & Service Engineers Only

    Instructions for installers and service engineers only INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLEANING THE FILTER It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower.

  • Page 24: Fault Finding/Troubleshooting

    FAULT FINDING/TROUBLESHOOTING FAULT FINDING Important: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem Cause Action Problem/Symptom Cause Action/Cure 1 Shower inoperable, 1.1 Interrupted power 1.1.1 Blown fuse or circuit breaker. Check supply no water flow.
  • Page 25 FAULT FINDING/TROUBLESHOOTING FAULT FINDING Important: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem Cause Action Problem/Symptom Cause Action/Cure 3 Water too cool 3.3 Reduction in ambient 3.3.1 Readjust flow rate to give reduced flow.

  • Page 26: Spare Parts

    Please have your model name available. WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and compliance with the WEEE directive.

  • Page 27: Shower Controls - Quick User Guide

    SHOWER CONTROLS - QUICK USER GUIDE To START or STOP your shower. The power light will illuminate. To START the shower - press the Start/Stop button. To STOP the shower - press Turn the the Start/Stop button, then main power turn the isolator switch off.

  • Page 28: Service Policy/Uk Guarantee

    Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2022...
