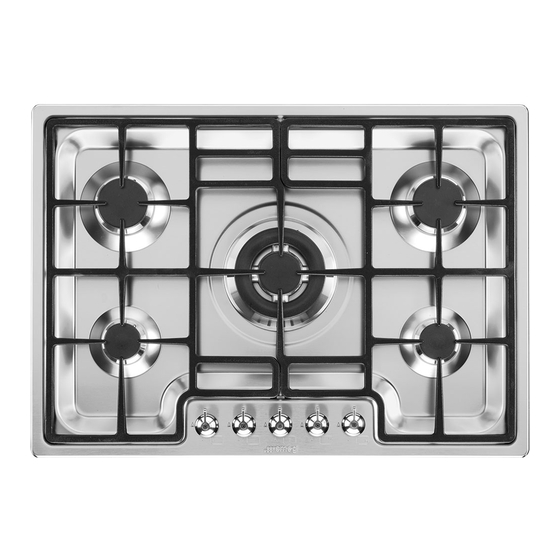

Smeg PGF75-4 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
1
2
POSITIONING OF THE HOB _______________________________ 22
3
4
FINAL OPERATIONS _____________________________________ 30
5
USING THE HOB ________________________________________ 31
6
CLEANING AND MAINTENANCE ___________________________ 33
THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE
IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified
technician who must carry out a suitable check of the gas system,
install the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER : these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
Contents
19

Advertisement

loading

Related Manuals for Smeg PGF75-4

Summary of Contents for Smeg PGF75-4

  • Page 1: Table Of Contents

    Contents INSTRUCTIONS FOR SAFE AND PROPER USE _______________ 20 POSITIONING OF THE HOB _______________________________ 22 ADJUSTMENT TO DIFFERENT TYPES OF GAS _______________ 28 FINAL OPERATIONS _____________________________________ 30 USING THE HOB ________________________________________ 31 CLEANING AND MAINTENANCE ___________________________ 33 THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

  • Page 2: Instructions For Safe And Proper Use

    Introduction INSTRUCTIONS FOR SAFE AND PROPER USE THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE HOB. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE HOB.
  • Page 3 Introduction THE APPLIANCE DATA PLATE, WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME, IS POSITIONED AT A VISIBLE POINT UNDER THE SAFETY COVER. THE DATA PLATE ON THE PROTECTIVE COVER MUST NEVER BE REMOVED. DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS ON THE HOB PANSTAND GRIDS.

  • Page 4: Positioning Of The Hob

    Instructions for the installer POSITIONING OF THE HOB The following operation requires building and/or carpentry work so must be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood, as long as they are heat- resistant (T 90°C).
  • Page 5 Instructions for the installer Attachment to support structure, flush-mounting model Create an opening with the dimensions shown in the figure. A (mm) B (mm) C (mm) D (mm) E (mm) L (mm) X (mm) Y (mm) min 110 min 460 min 750 20÷40 min 50...
  • Page 6 Instructions for the installer Apply a layer of “waterproof primer” to the milled surface. Important: Other types of installation will only be possible under the manufacturer's supervision. Overall dimensions: location of gas and electrical connection points (all measures in mm). Warning: the bottom surface of the hob can become very hot.
  • Page 7 Instructions for the installer IMPORTANT: when installing the appliance above a cupboard, a dividing shelf, as shown above, must be installed. If installed above an under-bench oven, this is not required. Installation of an oven without cooking fan underneath the hob is forbidden.
  • Page 8 Instructions for the installer If the power cable is to be replaced, the wire section on the new cable must not be less than 0.75 mm (3 x 0.75 cable), bearing in mind that the end to be connected to the appliance must have the earth wire (yellow-green) at least 20 mm longer.
  • Page 9 Instructions for the installer Gas connection Connection to the gas mains may be made with a rigid copper pipe or with a flexible pipe conforming to the provisions defined by standard regulations in force. After connection operations, check for leaks using a soapy solution. The hob has been inspected for G20 natural gas (2H) at a pressure of 20 mbar.

  • Page 10: Adjustment To Different Types Of Gas

    Instructions for the installer 3 ADJUSTMENT TO DIFFERENT TYPES OF GAS Before performing any cleaning or maintenance work, unplug the appliance from the mains. The hob is set for natural gas G20 (2H) at a pressure of 20 mbar. In the case of functioning with other types of gas the burner nozzles must be changed and the minimum flame adjusted on the gas taps.
  • Page 11 Instructions for the installer Burner and nozzle characteristics table Rated Burner heating LPG – G30/G31 30/37 mbar capacity (kW) Nozzle By-pass Reduced Flow rate Flow rate diameter flow rate g/h G30 g/h G31 1/100 mm 1/100 Auxiliary (1) 1.05 30 * 27/28 ** Semi rapid (2) 1.75...

  • Page 12: Final Operations

    Instructions for the installer 4 FINAL OPERATIONS After carrying out the above adjustments, remount in reverse order to the instructions given in paragraph “3.1 Replacement of nozzles on the hob”. After having regulated the device with gas other than the one tested, replace the label located on the guard with the one that corresponds to the new gas.

  • Page 13: Using The Hob

    Instructions for the user USING THE HOB Ignition of the burners Before turning on the burners, make sure that the flame-spreader crowns and respective caps are properly fitted in their housings. Ensure the flame-spreader holes A are aligned with the ignition plugs and the thermocouples.
  • Page 14 Instructions for the user 5.2 Practical advice for using the burners For better use of the burners and lower gas consumption, use covered cooking receptacles that have a flat, smooth bottom and are proportional in size to the burner to prevent the flame from licking the sides (see paragraph “5.3 Pan diameters”).

  • Page 15: Cleaning And Maintenance

    Instructions for the user CLEANING AND MAINTENANCE Before any intervention, disconnect the appliance from the mains. Never use a steam jet to clean the appliance. 6.1 Cleaning the stainless steel To keep stainless steel in good condition it should be cleaned regularly after use.
  • Page 16 Instructions for the user In models with central pan stand, fit this piece, taking care that its centre is perfectly aligned with the centre of the burner...
