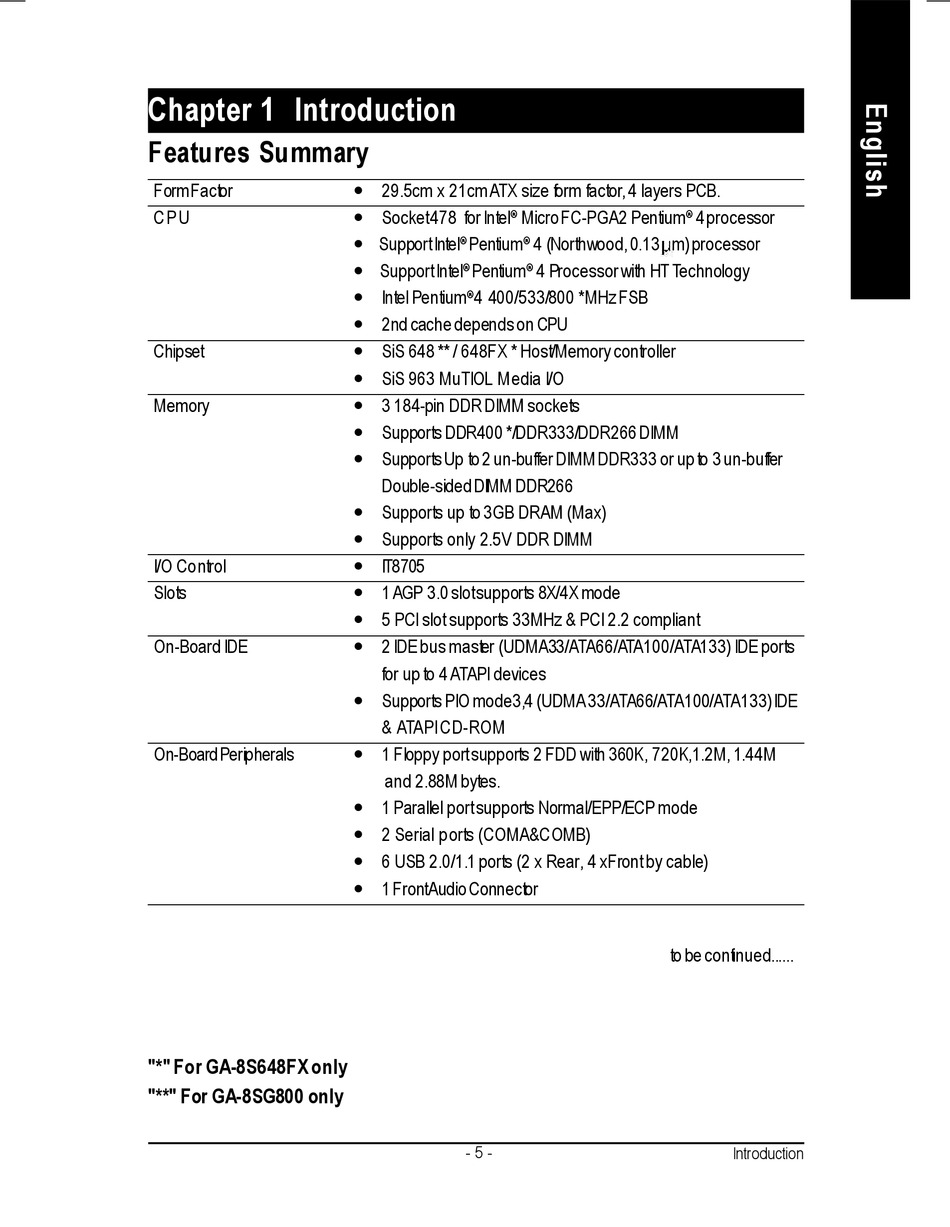

Chapter 1 Introduction

Features Summary

Form Factor
CPU
Chipset
Memory
I/O Control
Slots
On-Board IDE
On-Board Peripherals
"*" For GA-8S648FX only
"**" For GA-8SG800 only
— 29.5cm x 21cm ATX size form factor, 4 layers PCB.
— Socket 478 for Intel
®
— Support Intel Pentium
®
— Support Intel Pentium
®
— Intel Pentium 4 400/533/800 *MHz FSB
®
— 2nd cache depends on CPU
— SiS 648 ** / 648FX * Host/Memory controller
— SiS 963 MuTIOL Media I/O
— 3 184-pin DDR DIMM sockets
— Supports DDR400 */DDR333/DDR266 DIMM
— Supports Up to 2 un-buffer DIMM DDR333 or up to 3 un-buffer
Double-sided DIMM DDR266
— Supports up to 3GB DRAM (Max)
— Supports only 2.5V DDR DIMM
— IT8705
— 1 AGP 3.0 slot supports 8X/4X mode
— 5 PCI slot supports 33MHz & PCI 2.2 compliant
— 2 IDE bus master (UDMA33/ATA66/ATA100/ATA133) IDE ports
for up to 4 ATAPI devices
— Supports PIO mode3,4 (UDMA 33/ATA66/ATA100/ATA133) IDE
& ATAPICD-ROM
— 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
— 1 Parallel port supports Normal/EPP/ECP mode
— 2 Serial ports (COMA&COMB)
— 6 USB 2.0/1.1 ports (2 x Rear, 4 xFront by cable)
— 1 Front Audio Connector
- 5 -
Micro FC-PGA2 Pentium
4 (Northwood, 0.13 m) processor
®
4 Processor with HT Technology
®
to be continued......
4 processor
®
