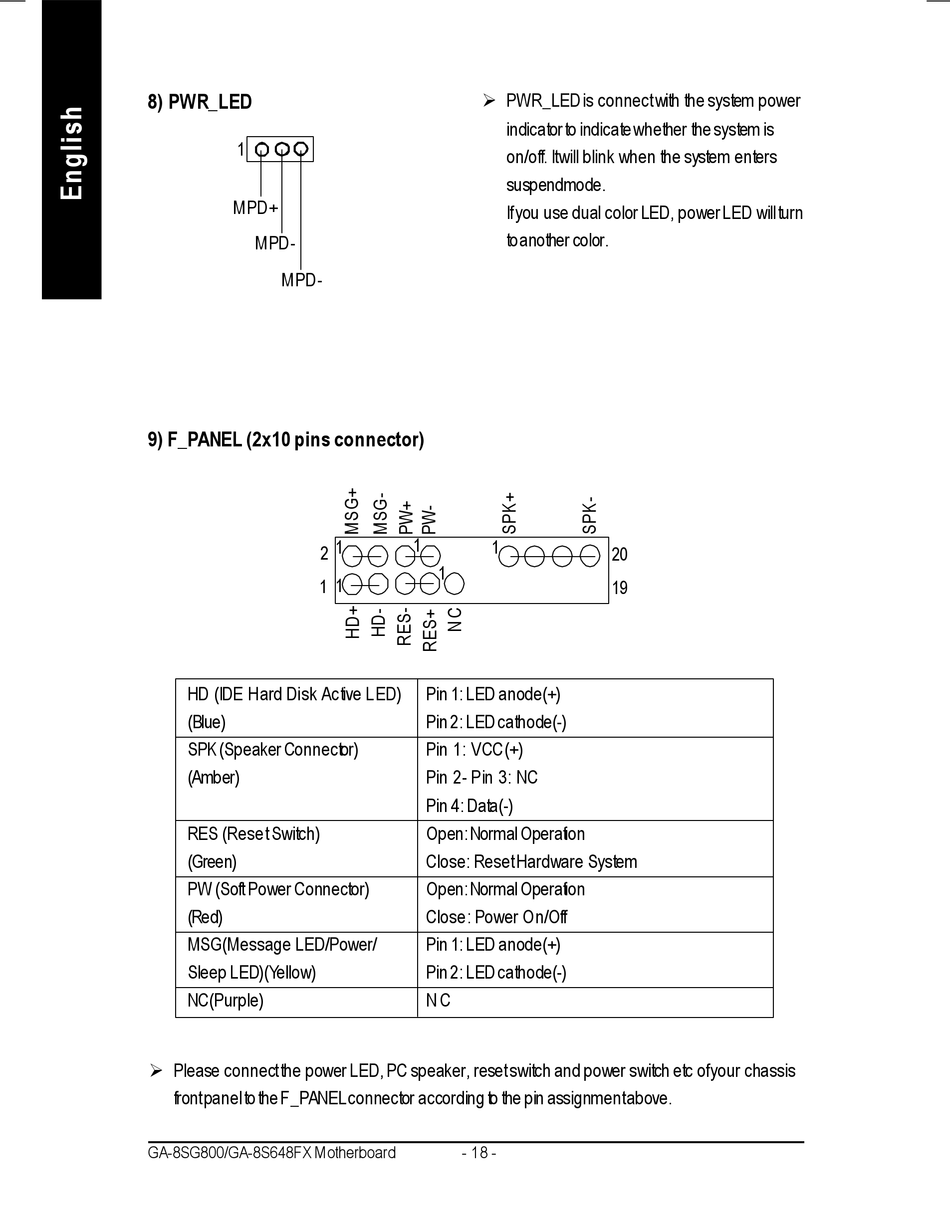

8) PWR_LED
1
MPD+
MPD-
MPD-
9) F_PANEL (2x10 pins connector)
HD (IDE Hard Disk Active LED)
(Blue)
SPK (Speaker Connector)
(Amber)
RES (Reset Switch)
(Green)
PW (Soft Power Connector)
(Red)
MSG(Message LED/Power/
Sleep LED)(Yellow)
NC(Purple)
Ø Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment above.
GA-8SG800/GA-8S648FX Motherboard
Ø PWR_LED is connect with the system power
1
1
2
1
1
1
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Open: Normal Operation
Close: Reset Hardware System
Open: Normal Operation
Close: Power On/Off
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
N C
- 18 -
indicator to indicate whether the system is
on/off. It will blink when the system enters
suspend mode.
If you use dual color LED, power LED will turn
to another color.
