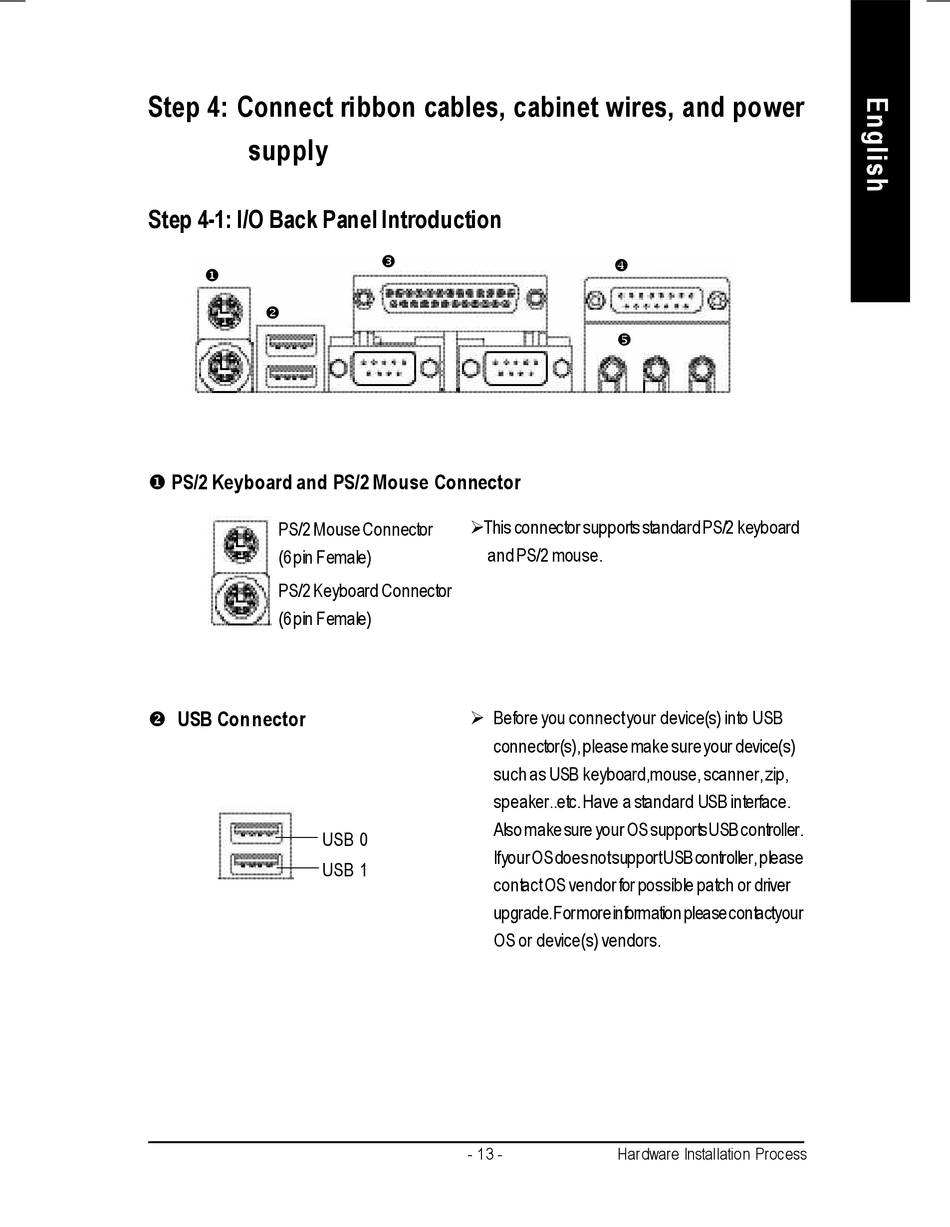

Step 4: Connect ribbon cables, cabinet wires, and power
supply

Step 4-1: I/O Back Panel Introduction

u
v
u PS/2 Keyboard and PS/2 Mouse Connector
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
v USB Connector
w
ØThis connector supports standard PS/2 keyboard
Ø Before you connect your device(s) into USB
USB 0
USB 1
- 13 -
x
y
and PS/2 mouse.
connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker..etc. Have a standard USB interface.
Also make sure your OS supports USB controller.
If your OS does not support USB controller, please
contact OS vendor for possible patch or driver
upgrade. For more information please contact your
OS or device(s) vendors.
Hardware Installation Process
