Integrated Peripherals

CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are
IDE1 Conductor Cable
IDE2 Conductor Cable
On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE
AC97 Audio
USB Controller
USB Legacy Support
Onboard Serial Port 1
Onboard Serial Port 2
Onboard Parallel Port
Parallel Port Mode
x ECP Mode Use DMA
Game Port Address
Midi Port Address
Midi Port IRQ
higf: Mov e Enter:Select +/-/PU/PD:Value
F5:Prev ious Values
Integrated Peripherals
[Auto]
[Auto]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Disabled]
[3F8/IRQ4]
[2F8/IRQ3]
[378/IRQ7]
[SPP]
3
[201]
[330]
[10]
F10:Sav e
F6:Fail-Safe Defaults

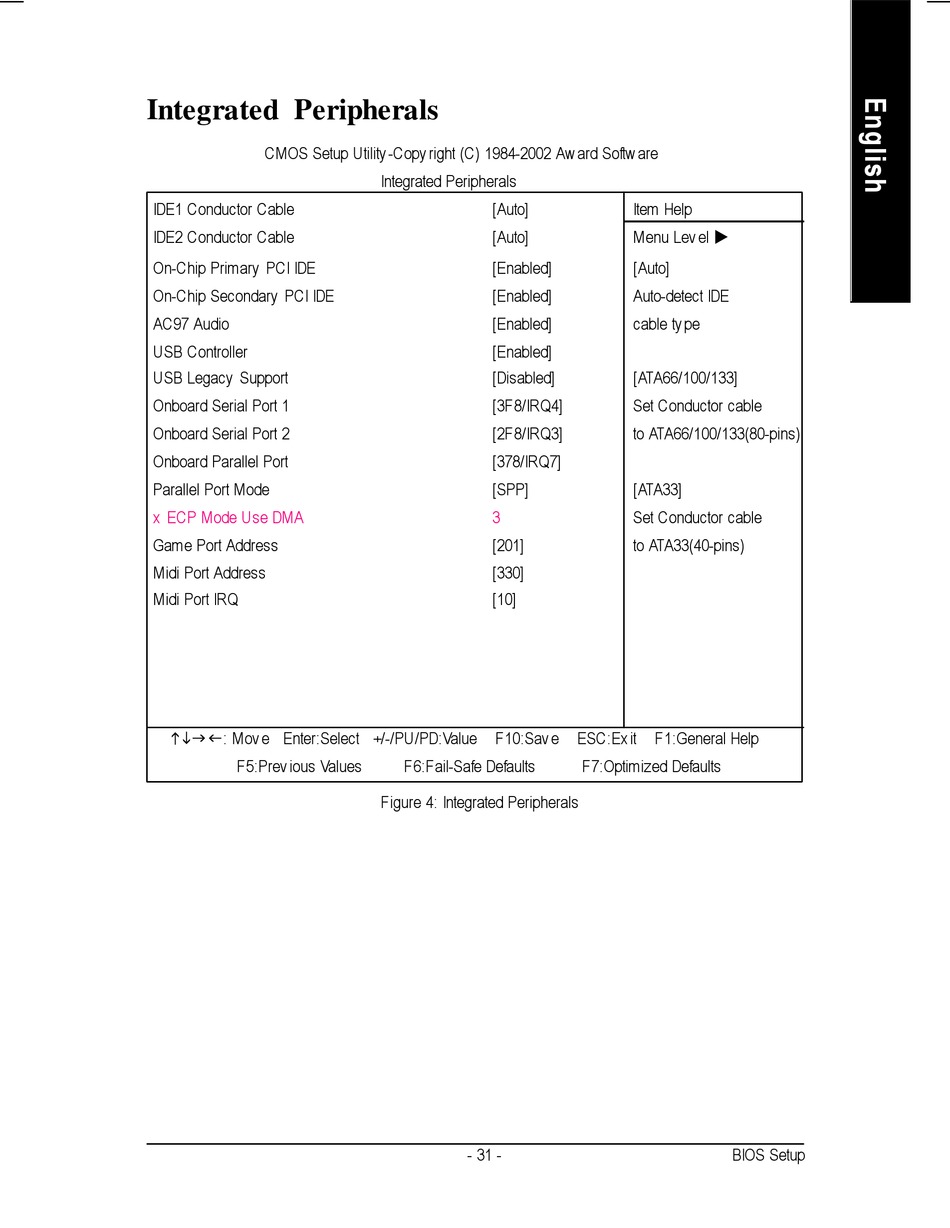

Figure 4: Integrated Peripherals
- 31 -
Item Help
Menu Lev el u
[Auto]
Auto-detect IDE
cable ty pe
[ATA66/100/133]
Set Conductor cable
to ATA66/100/133(80-pins)
[ATA33]
Set Conductor cable
to ATA33(40-pins)
