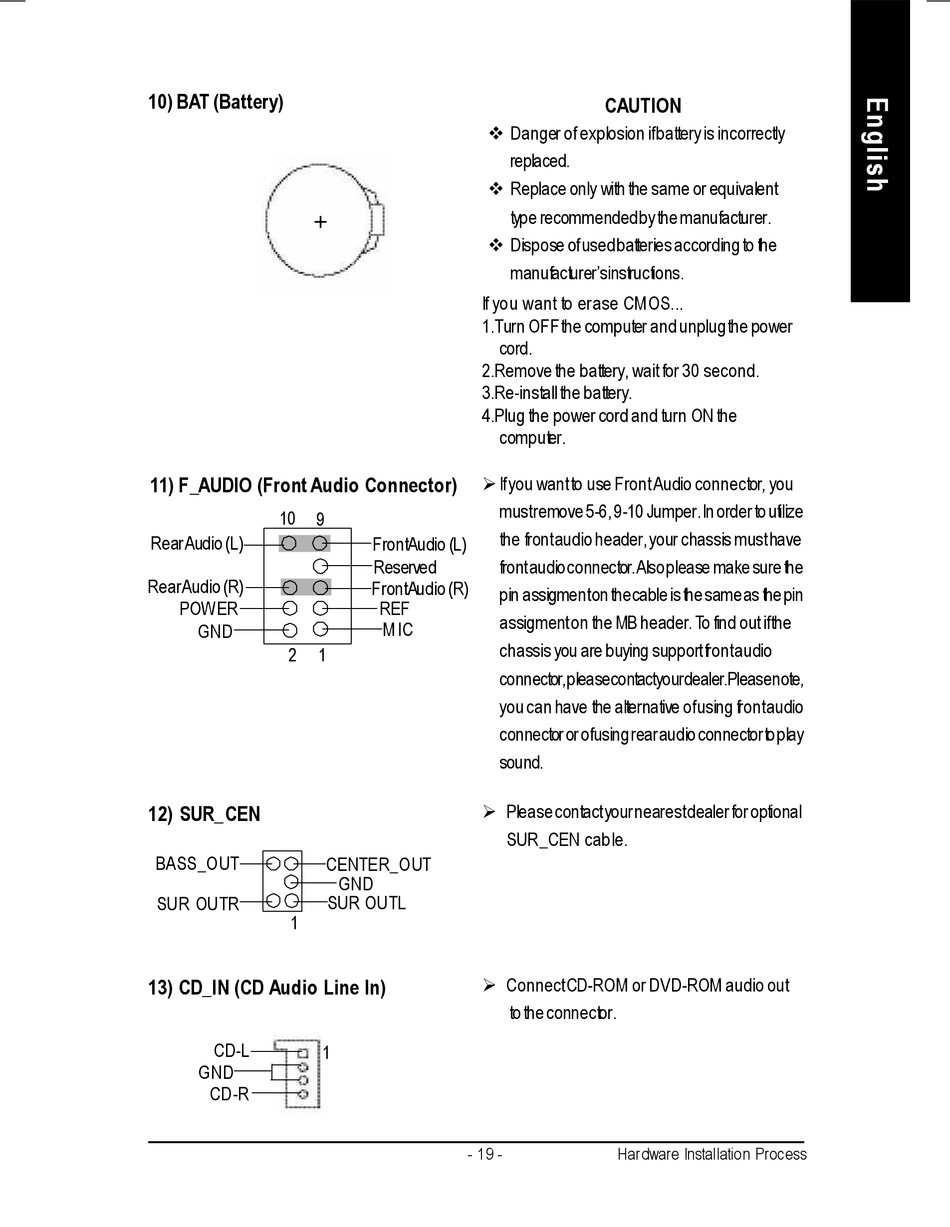

10) BAT (Battery)
11) F_AUDIO (Front Audio Connector)
10
Rear Audio (L)
Rear Audio (R)
POWER
GND
2
12) SUR_CEN
BASS_OUT
SUR OUTR
1
13) CD_IN (CD Audio Line In)
CD-L
GND
CD-R
+
9
Front Audio (L)
Reserved
Front Audio (R)
REF
M IC
1
CENTER_OUT
GND
SUR OUTL
1
- 19 -
CAUTION
v Danger of explosion if battery is incorrectly
replaced.
v Replace only with the same or equivalent
type recommended by the manufacturer.
v Dispose of used batteries according to the
manufacturer' s instructions.
If you want to erase CMOS...
1.Turn OFF the computer and unplug the power
cord.
2.Remove the battery, wait for 30 second.
3.Re-install the battery.
4.Plug the power cord and turn ON the
computer.
Ø If you want to use Front Audio connector, you
must remove 5-6, 9-10 Jumper. In order to utilize
the front audio header, your chassis must have
front audio connector. Also please make sure the
pin assigment on the cable is the same as the pin
assigment on the MB header. To find out if the
chassis you are buying support front audio
connector, please contact your dealer.Please note,
you can have the alternative of using front audio
connector or of using rear audio connector to play
sound.
Ø Please contact your nearest dealer for optional
SUR_CEN cable.
Ø Connect CD-ROM or DVD-ROM audio out
to the connector.
Hardware Installation Process
