Level switch

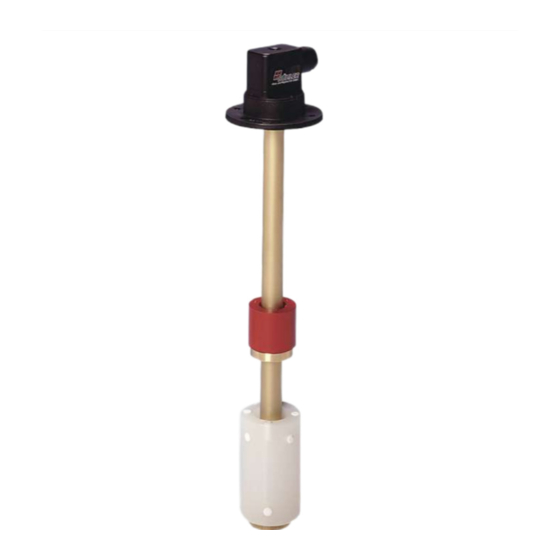

Nivotemp 61-0-WW
Installation and Operation Instructions
Original instructions
BE100007
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
05/2022
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: fluidcontrol@buehler-technologies.com
Internet: www.buehler-technologies.com
Advertisement
Table of Contents
Related Manuals for Bühler technologies Nivotemp 61-0-WW-S6
Summary of Contents for Bühler technologies Nivotemp 61-0-WW-S6
- Page 1 Fluidcontrol Level switch Nivotemp 61-0-WW Installation and Operation Instructions Original instructions BE100007 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 05/2022 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: fluidcontrol@buehler-technologies.com Internet: www.buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: fluidcontrol@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
Nivotemp 61-0-WW Contents Introduction............................................. 2 Intended Use......................................... 2 Functionality......................................... 2 1.2.1 Liquid level monitoring .................................. 2 Ordering instructions ...................................... 2 Scope of Delivery........................................ 2 Safety instructions......................................... 3 Important advice ......................................... 3 General hazard warnings .................................... 4 Transport and storage ........................................ 5 4 Setup and connection ........................................ 6 Installation .......................................... 6 Electrical Connections...................................... -
Page 4: Introduction
Base version (without level and water alarm contacts) Item no. Description Plug Total length 10 30 099 Nivotemp 61-0-WW-S6-Level contacts/water alarm contact L (max. 1350 mm) 10 30 799 Nivotemp 61-0-WW-2xM12-Level contacts/water alarm contact 2xM12 L (max. 1350 mm) 10 30 899 Nivotemp 61-0-WW-C6F-Level contacts/water alarm contact L (max. -
Page 5: Safety Instructions
Nivotemp 61-0-WW 2 Safety instructions 2.1 Important advice Operation of the device is only permitted if: – the product is used under the conditions described in the installation- and operation instruction, the intended application according to the type plate and the intended use. In case of unauthorized modifications done by the user Bühler Technolo- gies GmbH can not be held responsible for any damage, –... -
Page 6: General Hazard Warnings
Nivotemp 61-0-WW 2.2 General hazard warnings The equipment must be installed by a professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent malfunctions and avoid personal injuries and property damage. -
Page 7: Transport And Storage
Nivotemp 61-0-WW 3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. The equipment must be protected from moisture and heat when not in use. It must be stored in a covered, dry, dust-free room at room temperature. -
Page 8: Setup And Connection
Nivotemp 61-0-WW 4 Setup and connection DANGER Electric voltage Risk of electric shock a) De-energise the system. b) The equipment may only be installed, maintained and put into operation by instruc- ted, competent personnel. c) Always observe the applicable safety regulations for the operating site. DANGER Toxic, acidic gases/liquids Protect yourself from toxic, corrosive gasses/liquids when performing any type of work. -
Page 9: Electrical Connections
Nivotemp 61-0-WW 4.2 Electrical Connections The device must be installed by an authorised professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Please refer to the compatibility charts in the appendix for the pin assignment and the electrical data. Proceed as follows: Select the plug type, contact type and number of contacts (per your order). -
Page 10: Adjusting The Level Contacts
Nivotemp 61-0-WW 4.4 Adjusting the level contacts The measurement contacts are mounted on a perforated rail inside the protective tube. These are arranged per order specifica- tions but can be moved if necessary. NOTICE The water alarm contact is fixed to a specific measurement and cannot be adjusted! Depending on the model, the perforated rail will also have electronic assemblies. - Page 11 Nivotemp 61-0-WW NC contact function NO contact function with rising level with rising level i.e. i.e. NC contact function NO contact function with falling level with falling level The contact logic assumes the level switch is installed in an empty tank, i.e. it is only in the operating position once filled. After positioning the contacts, slide the perforated rail back into the protective tube.
-
Page 12: Operation And Control
Nivotemp 61-0-WW 5 Operation and control NOTICE The device must not be operated beyond its specifications. Bühler Technologies GmbH BE100007 ◦ 05/2022... -
Page 13: Cleaning And Maintenance
Nivotemp 61-0-WW 6 Cleaning and Maintenance This device is maintenance-free. The method for cleaning the devices must be adapted to the IP protection class of the devices. Do not use cleaners which could damage the device materials. BE100007 ◦ 05/2022 Bühler Technologies GmbH... -
Page 14: Service And Repair
Nivotemp 61-0-WW 7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent If the equipment is not functioning properly after correcting any malfunctions and switching on the power, it must be inspected by the manufacturer. -
Page 15: Disposal
Nivotemp 61-0-WW 8 Disposal Dispose of parts so as not to endanger the health or environment. Follow the laws in the country of use for disposing of elec- tronic components and devices during disposal. BE100007 ◦ 05/2022 Bühler Technologies GmbH... -
Page 16: Appendices
Nivotemp 61-0-WW 9 Appendices 9.1 Technical Data Base unit Dimensions (mm) Operating pressure max. 1 bar Operating temperature max. 80 °C Rubberised cork seal Fluid density min. 0.8 kg/dm³ Oil density max. 0.86 kg/dm³ first Material/Version contact Float SK 610 (level) Hard PU Float WW (water alarm) PPH Level float... -
Page 17: Standard Pin Assignment
Nivotemp 61-0-WW 9.3 Standard pin assignment Connector 2xM12 circular connector plug A coded Dimensions Number of poles 6-pin + PE 6-pin + PE 4 pin/4 pin DIN EN 175201-804 175301-804 61076-2-101 Voltage max. 230 V AC/DC* 230 V AC/DC* 24 V DC IP rating IP65 IP65... - Page 18 Nivotemp 61-0-WW Connector 2 x M12 (base) Plug Connection schematic Plug A Plug B 1x K10 level contact and 1x K6 water alarm contact 2x K10 level contacts and 1x K6 water alarm contact 3x K10 level contacts and 1x K6 water alarm contact 4x K10 level contacts and 1x K6 water alarm contact 1x W11 level contact and...
-
Page 19: Collecting Basin Dimensions (Optional)
Nivotemp 61-0-WW Connector 2 x M12 (base) 1x K10 level contact and 1x W7 water alarm contact 2x K10 level contacts and 1x W7 water alarm contact 3x K10 level contacts and 1x W7 water alarm contact 1x W11 level contact and 1x W7 water alarm contact K10 contacts (NC/NO*) and W11 (change-over) are the level contacts. -
Page 20: Attached Documents
Nivotemp 61-0-WW 10 Attached documents – Declaration of Conformity KX100023 – RMA - Decontamination Statement Bühler Technologies GmbH BE100007 ◦ 05/2022... - Page 22 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nummer bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service./ You may obtain the RMA number from your sales or service representative. Zu diesem Rücksendeschein gehört eine Dekontaminierungserklärung. Die gesetzlichen Vorschriften schreiben vor, dass Sie uns diese Dekontaminierungserklärung ausgefüllt und unterschrieben zurücksenden müssen.
