MikroTik GPEN11 Quick Start Manual

GPEN11

This device allows powering a PoE capable device over Ethernet, using the same voltage, as provided with the DC

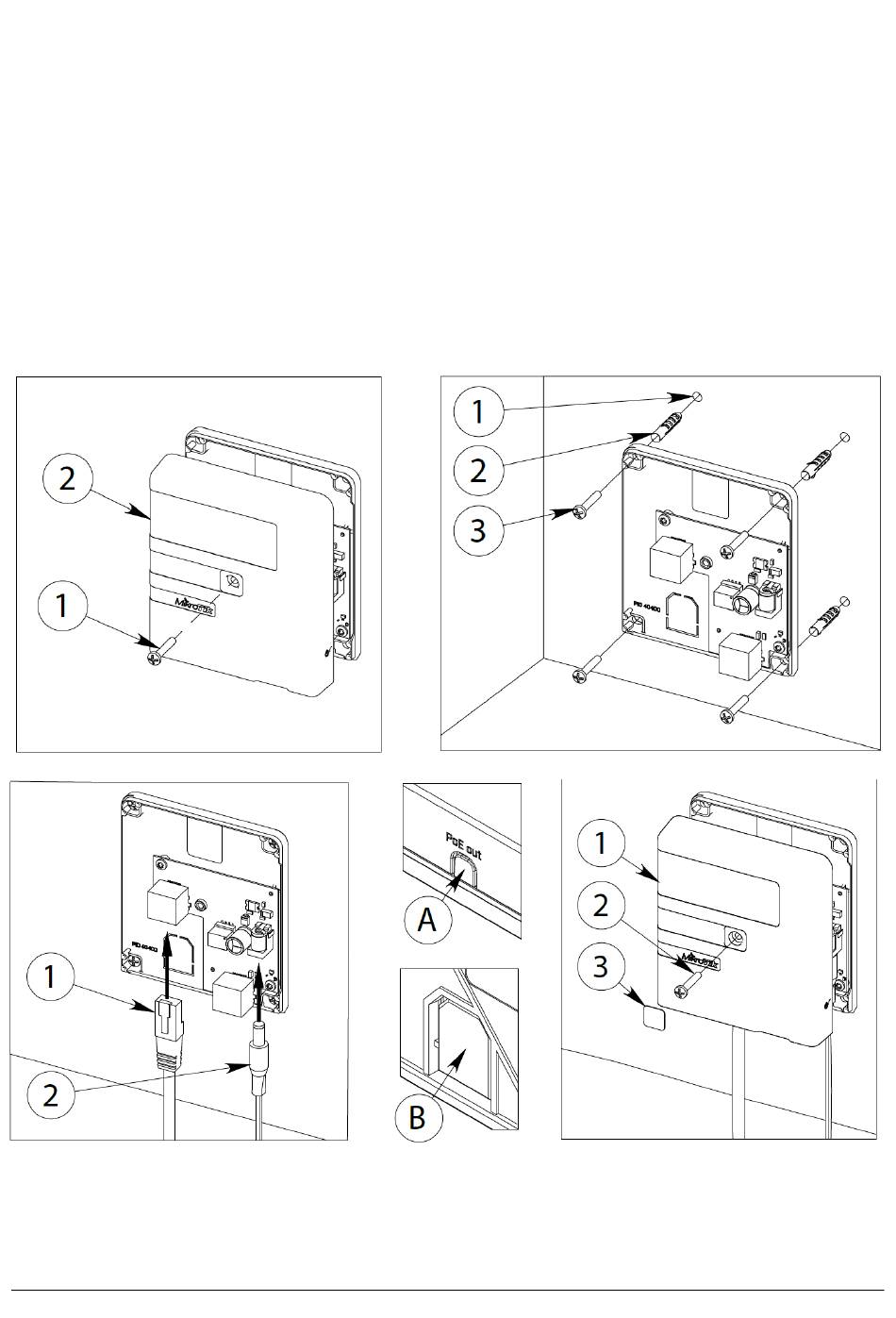

input jack. The device is designed to be mounted on a wall, please follow the below visual guide to do it.

1. Remove the cover screw and the cover.

2. Attach the unit to the wall, using wall anchors and screws.

3. Plug in the Ethernet cable going to the unit that will be powered. Choose cable management position A for

external cable, or B for cable going into the wall.

4. Re-attach cover, secure it using the screw, use the sticker to cover the screw location. Device is ready and

you can plug your local network device into the ETH port to connect to the powered device.

See mikrotik.com for more information.

Document #46507 Modified on 14/01/19
