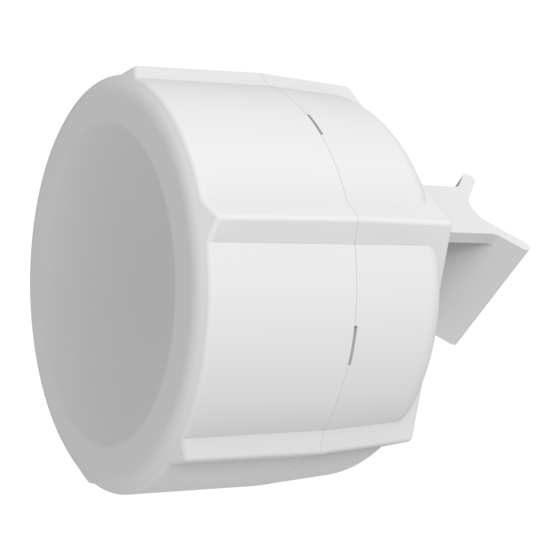

SXT R
The SXT R comes without modem, it has built-in LTE antenna, two 10/100 Ethernet connectors which support MDI-X auto-detection. There are two micro
SIM card slots available, to switch between cell providers.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
All installation methods for mounting an access point on any wall surface is subject to the acceptance of local jurisdiction.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
uncontrolled environment. This MikroTik device should be installed and operated no closer than 45 centimeters from your body, occupational user, or the
general public.

First use

1.
Open the bottom lid.
2.
Install the desired card into miniPCIe slot, please refer to paragraph
3.
Insert the micro-SIM cards into the micro-SIM slots (SIM A slot is a default).
4.
Connect the device to the power source (see "
5.
Once the device is powered on and PC connected to the device, open
configuration.
6.
User name: a
dmin
and there is no password by default you will be logged in automatically to the Quick Set screen.
7.
We recommend clicking the "Check for updates" button on the right side and updating your RouterOS software to the latest version to ensure the
best performance and stability. Must have an internet connection and a valid SIM card.
8.
To manually update the device, please go to our web page and download the latest (MIPSBE) software packages to your PC.
9.
Open Web browser or Winbox and upload packages to the Files menu and reboot the device.
10.
Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm Password", it will be used to login next
time.
11.
Click on the "Apply Configuration" to save changes.

Expansion slots and ports

Two 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for
connecting to other network devices.
miniPCIe slot usage
SXT kit-series#Powering
").
 https://192.168.88.1
.

in your web browser or Winbox to start the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXT R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik SXT R

  • Page 1 SXT R The SXT R comes without modem, it has built-in LTE antenna, two 10/100 Ethernet connectors which support MDI-X auto-detection. There are two micro SIM card slots available, to switch between cell providers. Safety Warnings Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents.
  • Page 2 MiniPCIe slot and two SIM slots (can't be used separately) to be used with a 3G/4G/LTE modems. The Mode button allows you to run any script when the button is pushed. Powering The device accepts 18-57 V DC passive and 802.3af/at PoE power from the Ethernet port ETH1. The package contains a 24 V adapter and a passive PoE injector.
  • Page 3 Removing the top cover, insert plastic tool in one of the six holes, turn slightly to the side and twitch carefully to slightly release the cover from holding into the place. Continue to work around until all of the clamps are released. Remove the top cover by lifting it up.
  • Page 4 Use a PH2 screwdriver to tighten the rings when alignment is complete. Fix the Ethernet cable to the pole using zip ties, less than one meter from the unit, to avoid the cable being pulled out of the port. Check mounting angle and positioning. When mounting outdoors, please ensure that any cable openings are directed downwards.
  • Page 5 Specifications For more information about this product, specification and pictures please visit our web page: https://mikrotik.com/product/sxt_r Operating system support The device supports RouterOS software version 6. The specific factory-installed version number is indicated in the RouterOS menu /system resource. Other operating systems have not been tested.
  • Page 6 Информация о дате изготовления устройства указана в конце серийного номера на его наклейке через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке.
  • Page 7 Продукты MikroTik, которые поставляются в Евразийский таможенный союз, оцениваются с учетом соответствующих требований и помечены знаком EAC, как показано ниже: Norma Oficial Mexicana EFICIENCIA ENERGETICA CUMPLE CON LA NOM-029-ENER-2017. La operacion de este equipo esta sujeta a las siguientes dos condiciones: Es posible que este equipo o dispositivo no cause interferencia perjudicial y.
