2/4/8 Port USB to Serial Adapter Hub with
COM Retention
ICUSB2322I
ICUSB2324I
ICUSB2328I
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/19/2019
*ICUSB2322I Shown
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB2324I
Summary of Contents for StarTech.com ICUSB2324I
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/19/2019...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 ICUSB2322I ....................2 Front View ..............................2 Rear View ..............................2 ICUSB2324I ....................3 Front View ..............................3 Rear View ..............................3 ICUSB2328I ....................4 Front View ..............................4 Rear View ..............................4 Installation ....................5... -
Page 4: Introduction
Introduction The ICUSB2322I / ICUSB2324I / ICUSB2328I 2/4/8 Port Industrial Wall Mountable USB to Serial Hub with DIN Rail Clips converts a single USB port into two/four/eight RS232 serial ports allowing you to connect to, monitor and control your serial devices. -
Page 5: Icusb2322I

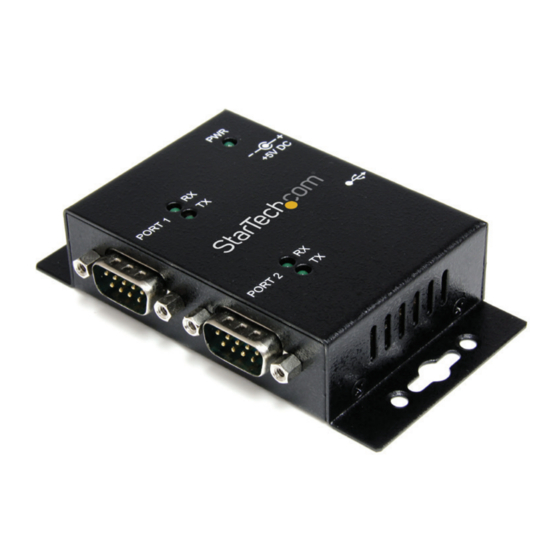

ICUSB2322I Front View Power LED Port Transmit (Tx)/ Receive (Rx) LED DB9 Serial connectors Rear View USB type B DC Power connector connector (Host) (optional) Instruction Manual... -
Page 6: Icusb2324I
ICUSB2324I Front View Power LED Port Transmit (Tx)/ Receive (Rx) LED DB9 Serial connectors Rear View DC Power connector (optional) USB type B connector (Host) Instruction Manual... -
Page 7: Icusb2328I
ICUSB2328I Front View DB9 Serial connectors Rear View Power LED DC Power connector (optional) USB type B connector (Host) Instruction Manual... -
Page 8: Installation
Installation Hardware Installation Windows 2000/ XP/ Server 2003 1. Connect the USB cable from the Serial Adapter to a USB port on the computer. 2. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD/DVD drive. If you are prompted to connect to Windows Update, please select the “No, not this time”... -
Page 9: Verifying Installation
Verifying Installation Windows 2000/ XP/ Vista/ 7 / 8 1. From the main desktop, right-click on “My Computer” (“Computer” in Vista/ 7), then select “Manage”. In the Computer Management window, select “Device Manager” from the left window panel. 2. Double-click on the “Ports (COM & LPT)” option. Additional COM port(s) should be visible. -
Page 10: Specifications
Specifications Number of Ports Host Interface USB 2.0 Chipset ID FTDI FT2232H 8 x -pin DB9 male 2 x 9-pin DB9 male 4 x 9-pin DB9 male External Connectors 1 x USB type B 1 x USB type B 1 x USB type B female female female... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
