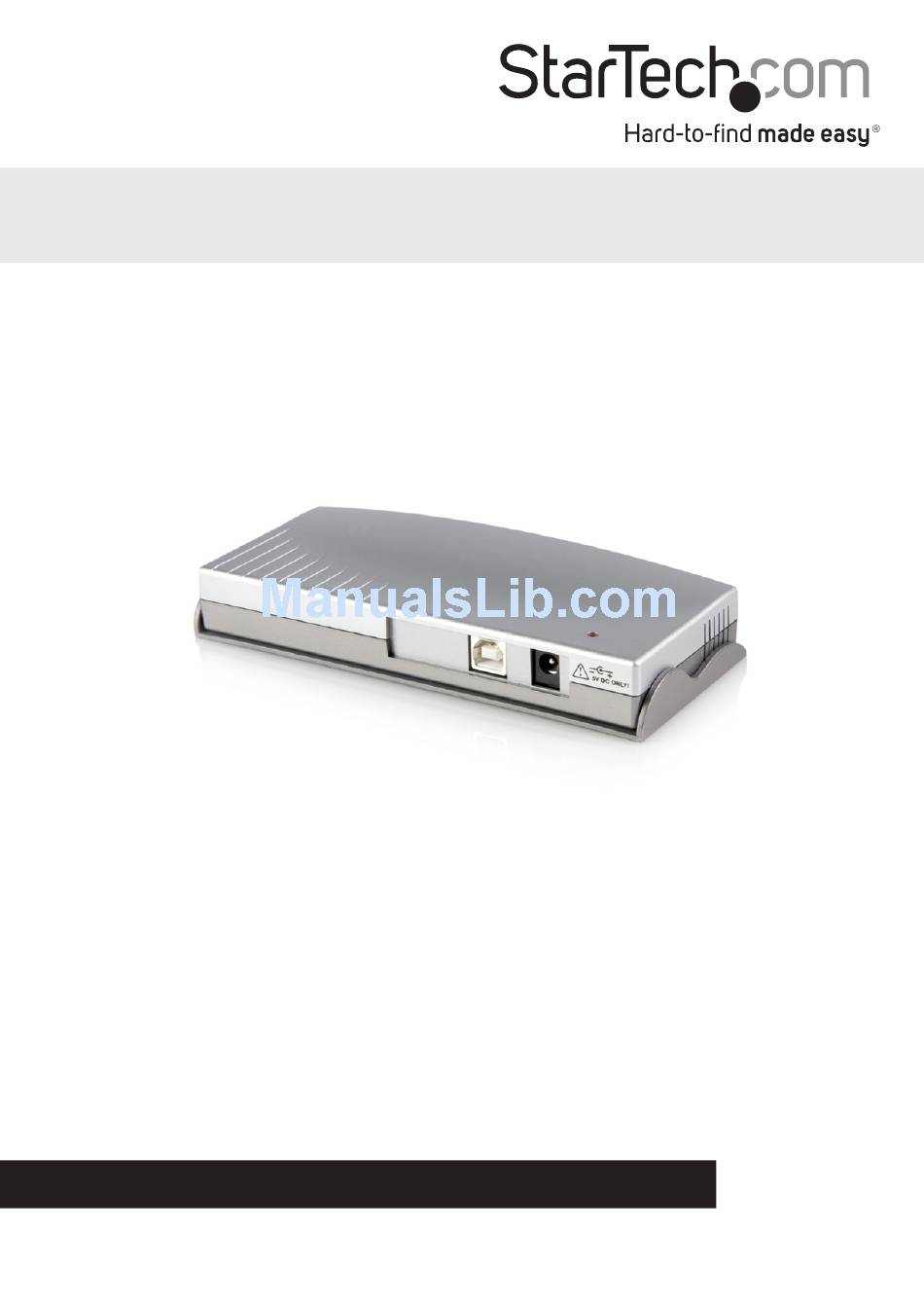

8 Port USB to RS232 Serial DB9 Adapter Hub
ICUSB2328
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/11/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ICUSB2328
Summary of Contents for StarTech.com ICUSB2328
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/11/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Features ................................ 1 Before you begin ............................1 Package contents ............................1 Installation ....................2 Driver Installation ............................2 Specifications ..................3 DB9 Pin Assignments ..........................3 Technical Support ..................4 Warranty Information ................4 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 8 port USB to Serial adapter. Now you can add eight Serial ports to your computer, using a simple USB connection - the ideal solution for adding legacy serial devices to a system with few or no serial ports available. -
Page 5: Installation
Installation 1. Insert the Driver CD that was included with ICUSB2328 into the CD/DVD-ROM drive on the host computer. 2. Connect the Type-B end of the USB cable used in step 1 to the USB type ‘B’ port on the rear panel of ICUSB2324. USB Type ICUSB2328 Rear Panel 3. Connect the type ‘A’ end of the USB cable into an available USB port on the host computer, or an available USB port on a USB hub. -
Page 6: Specifications
Specifications Regulatory Certifications ROHS, FCC, CE Connectors 1 - USB B Male 8 - DB9 Male (using 8 to 1 breakout cable) Power Adapter 5V DC Maximum Baud Rate 115 Kbps OS Support 2000 / XP / Vista / Mac OS 8.6 and Up Operating Temperature 0° to 55°C (32° to 13°F) Operating Humidity 5 to 95% RH DB9 Pin Assignments... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
