Professional USB to Serial Adapter Hub
with COM Retention
ICUSB2321X
ICUSB2322X
ICUSB2324X
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/15/2020
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ICUSB2322X
Summary of Contents for StarTech.com ICUSB2322X
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/15/2020...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Package Contents ............................. 1 System Requirements ..........................1 Hardware Guide ..................2 ICUSB2321X ..............................2 ICUSB2322X ..............................2 ICUSB2324X ..............................3 Installation .....................4 Manual Installation ..........................4 Automatic Installation ..........................9 Verifying Installation ..........................9 Configuration ..................10 Pinout .......................10... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com Professional USB to RS-232 Serial Adapter. This innovative device offers a simple way to utilize serial devices using a USB port, and stores settings that are unique to the connected device in non-volatile memory (COM Port Retention), allowing you to retain the desired settings regardless of the USB Port to which the adapter is connected. -
Page 5: Hardware Guide
Hardware Guide ICUSB2321X USB type A DB9 Male connector Port ICUSB2322X Front Panel DB9 Male Port Rear Panel USB type B DC Power connector Input (optional) DC Terminal Block Input (optional) Instruction Manual... -
Page 6: Icusb2324X

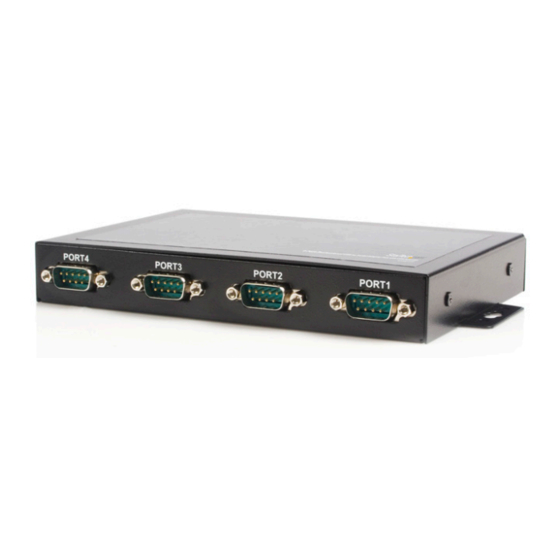

ICUSB2324X Front Panel DB9 Male Port Rear Panel USB type B DC Power connector Input (optional) DC Terminal Block Input (optional) Instruction Manual... -
Page 7: Installation
Installation It is recommended that you download the latest driver installation package for this product from the www.startech.com website and then follow the Manual Installation procedure below. If you are using an older driver (either from an included CD or having downloaded an older version) then please follow the Automatic Installation procedure on the following pages by using the Setup.exe (executable) installation file. - Page 8 7. Expand the Other Devices section, and right-click on the newly detected “StarTech. com Adapter” device and select Update Driver Software, which will start the Update Driver Software Wizard. 8. On the How do you want to search for driver software Window, click Browse my computer for driver software, then Let me pick from a list of device drivers on my computer.
- Page 9 9. From the next screen labeled Select your device’s type from the list below, select Show All Devices (should be highlighted by default), and then click Next. Note: This screen does not appear on all systems, move on to the next step if this does not apply.
- Page 10 Note: If Windows encounters a problem during driver installation, please see the section below titled Manual Installation Troubleshooting. Windows® XP 1. Navigate to http://www.startech.com/Downloads and enter your product ID (ICUSB2321X, ICUSB2322X, or ICUSB2324X). 2. Download the latest driver package listed under Driver(s), once your download has finished, please extract the driver package to a folder location of your choice.
- Page 11 6. Expand the Other Devices section, right-click on the newly detected “StarTech.com Adapter” device and select Update Driver, which will start the Hardware Update Wizard. 7. On the main Hardware Update Wizard window, select Install from a list or specific location (Advanced), then click Next.
-
Page 12: Automatic Installation
3. When the installation progress launches, a welcome screen will appear. Click Next to proceed. 4. You will be asked to select a destination where the StarTech.com Serial Adapter will be installed. Please click on Browse to manually select a location. Otherwise, leave the default destination in place and click Next. -
Page 13: Configuration
Configuration To configure the USB Serial port: 1. In the Device Manager, double-click on “Ports (COM & LPT)” to expand. 2. Right-click on the newly added serial port and select “Properties”. 3. From within the Properties window, the “Setting“ tabs offer configuration options for the USB Serial Adapter functions: Pinout Signal... -
Page 14: Manual Installation Troubleshooting
Manual Installation Troubleshooting If Windows does not successfully install the adapter by following the above steps, please follow the procedure below to successfully install the adapter. 1. On the Windows encountered a problem installing the driver software for your device screen, click the back arrow button. 2. - Page 15 5. At this point of the install, you may receive a message pop-up stating Windows can’t verify the publisher of this driver software, click Install this driver software anyway. Please contact StarTech.com technical support for further troubleshooting or installation support. 1- 800-265-1844...
-
Page 16: Specifications
Specifications ICUSB2321X ICUSB2322X ICUSB2324X Number of Ports Host Interface USB 2.0 1 x USB type B 1 x USB type B (female) (female) 1 x USB type A 2 x DB9 (male) 4 x DB9 (male) (male) Connectors 1 x DC Power... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
