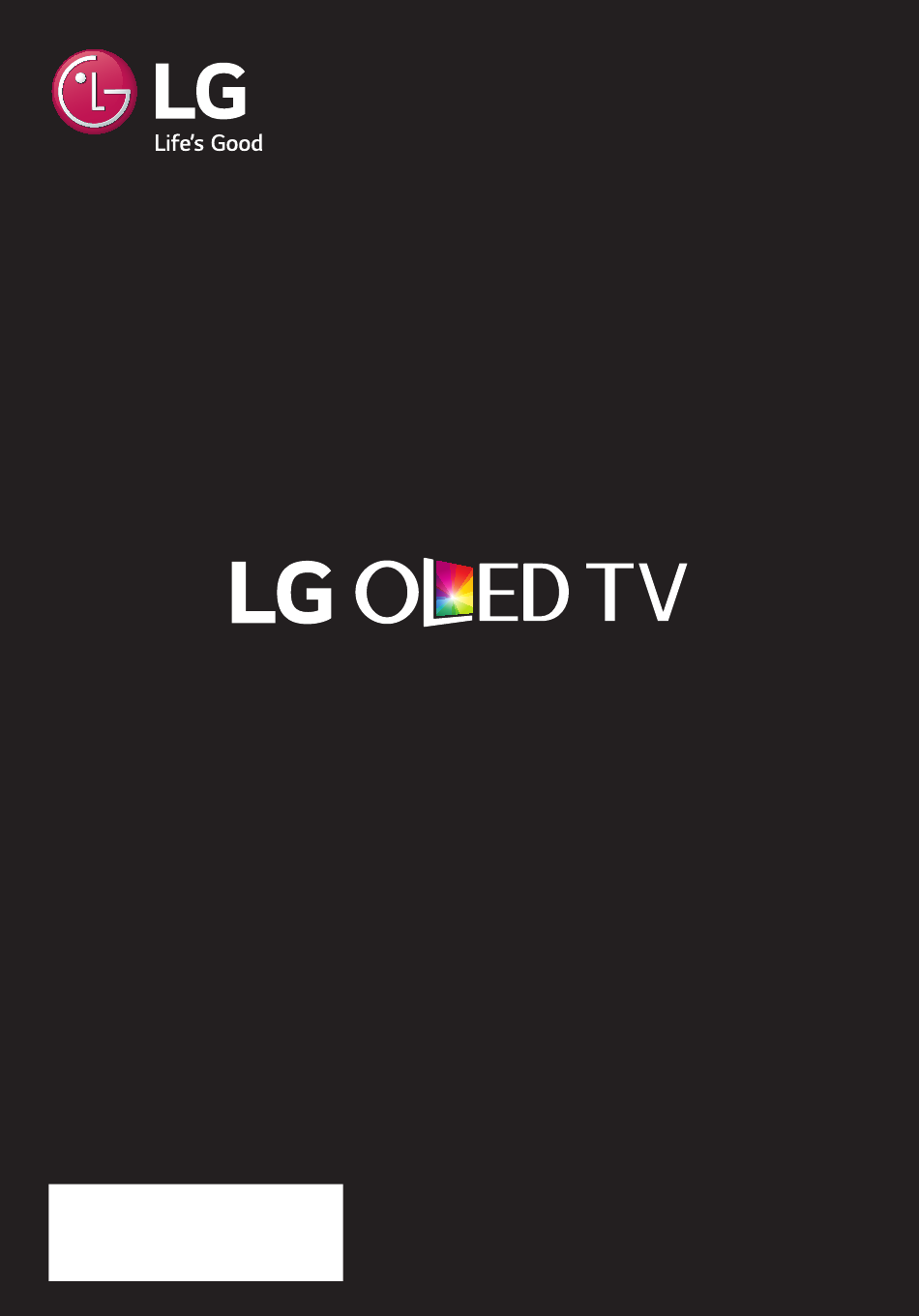

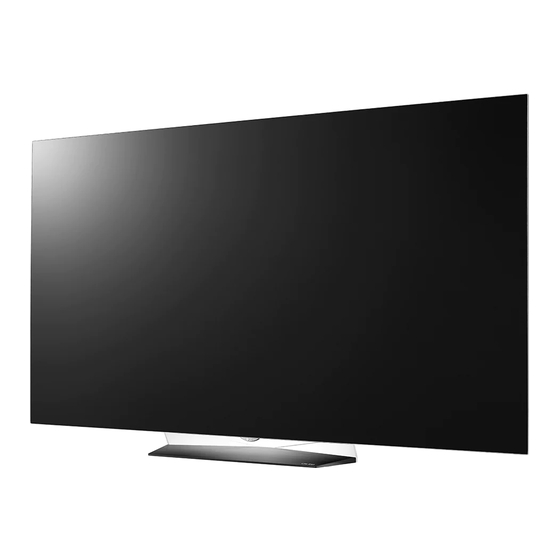

- Page 1 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. OLED55B6P OLED55C6P OLED55E6P OLED65B6P OLED65C6P OLED65E6P www.lg.com *MFL69383602* P/NO : MFL69383602 (1601-REV00)
- Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Always comply with the following precautions Follow all instructions. to avoid dangerous situations and ensure peak performance of your product. • Do not use this apparatus near water. WARNING/CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
- Page 3 • Use only with the cart, stand, tripod, bracket, or • CAUTION concerning the Power Cord table specified by the manufacturer, or sold with (Can differ by country): the apparatus. When a cart is used, use caution Check the specification page of this owner’s when moving the cart/apparatus combination to manual to be certain concerning current avoid injury from tip-over.
- Page 4 • Grounding • Cleaning - (Except for devices which are not grounded.) - When cleaning, unplug the power cord and Ensure that you connect the earth ground wire wipe gently with a soft cloth to prevent to prevent possible electric shock (i.e., a TV scratching.
- Page 5 Viewing 3D Imaging • Do not dispose of batteries in a fire. • Do not short circuit, disassemble, or allow the (For 3D models) batteries to overheat. • Do not use high voltage electrical equipment near the TV, (e.g., a bug zapper). CAUTION This may result in product malfunction.
- Page 6 Preparing CAUTION • Do not use any unapproved items to ensure the safety and product’s lifespan. NOTE • Any damages or injuries by using unapproved • When the TV is turned on for the first time after items are not covered by the warranty. being shipped from the factory, initialization of •...
- Page 7 Lifting and Moving the TV Using the Button When moving or lifting the TV, read the following (Depending upon model) to prevent the TV from being scratched or You can simply operate the TV functions, pressing damaged and for safe transportation regardless of or moving the button.
- Page 8 Mounting on a Table NOTE • Use a platform or cabinet that is strong and large enough to support the TV securely. 1 Lift and tilt the TV into its upright position on a • Brackets, bolts, and ropes are optional. You can table.
- Page 9 • Depending upon the graphics card, some NOTE resolution settings may not allow the image to • Remove the stand before installing the TV on a be positioned on the screen properly. wall mount by performing the stand attachment • Some USB Hubs may not work. If a USB device in reverse.
- Page 10 Other Connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Depending upon the model, a cable may not be provided. NOTE > General > •...
- Page 11 Battery Installation WARNING DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. CAUTION • The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100 °C (212 °F). Replace the battery part no.
- Page 12 Color buttons These access special functions in some menus. Red, Green, Yellow, Blue) Adjusts the volume level. , / , , Control buttons for media (MUTE) Mutes all sounds. contents (Depending upon model) * Video descriptions function will be enabled. You can zoom in on the area where the •...
- Page 13 Open Source Software Notice Specifications Information Product specifications may be changed without prior notice due to upgrade of product functions. To obtain the source code under GPL, LGPL, MPL, Estimated yearly energy consumption indicated on and other open source licenses, that is contained in the FTC label is measured in accordance with the http://opensource.lge.com this product, please visit...
- Page 14 Wireless Module (LGSBWAC61) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 15 dBm 5150 to 5725 MHz 16 dBm 5725 to 5850 MHz 12.5 dBm Bluetooth Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 10 dBm •...
- Page 15 Regulatory FCC RF Radiation Exposure Statement [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled FCC Notice environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter.
- Page 16 WARNING! WARNING (For Canada) Never place a television set in an unstable [For product having the wireless function using 5 location. A television set may fall, causing serious GHz frequency bands] personal injury or death. Many injuries, particularly to children, can be avoided by taking simple 1 The device for operation in the band 5150–5250 precautions such as: MHz is only for indoor use to reduce the...
- Page 19 CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
- Page 20 Declaration of Conformity Trade Name Model OLED55B6P-U, OLED65B6P-U OLED55C6P-U, OLED65C6P-U OLED55E6P-U, OLED65E6P-U Responsible LG Electronics Inc. Party Address 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A 201 - 266 - 2534 LG Customer Information Center For inquires or comments, visit www.lg.com or call;...
- Page 21 OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
- Page 22 KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
- Page 23 EXTERNAL CONTROL DEVICE SETUP EXTERNAL CONTROL DEVICE SETUP • Image shown may differ from your TV. Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. Note: The type of control port on the TV can be different between model series.
- Page 24 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
- Page 25 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 26 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 28 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 29 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 30 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 32 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
- Page 33 webOS TV Quick Setup Guide * Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending upon the Operating System (OS). * Depending upon the version of the software, icon position can be changed. Network Settings Press the (Home) button to access the...
- Page 34 Troubleshooting Network Problems Depending upon the version of the software, icon position can be changed. Press the (Home) button to access the Check the AP (Router) or consult your Internet Smarthome menu. Select (Settings) and press service provider. Wheel (OK). When X appears next to Gateway: Unplug the power cord of the AP (Router) or cable modem, wait 10 seconds.
- Page 35 SmartShare PC SW Installation & Setting Install the SmartShare PC SW program on your PC. www.lg.com Go to . Then, select your region. Select SUPPORT. Select Software & Firmware. Then, search for your model. Then, select SmartShare PC SW. Download the SmartShare PC SW and install it on your PC. You can run the program when installation is complete.
- Page 36 Wi-Fi Direct Setting (Home) (Settings) (All Settings) Network Wi-Fi DIRECT If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct. With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct. WI-FI DIRECT Picture When you open Wi-Fi Direct menu, a list of available devices appears.
- Page 37 Troubleshooting Wi-Fi Network Problems Checkpoints Make sure that you have the latest version of the software. - If you are using a Wi-Fi router, check whether you have the latest firmware installed. - If there are any available updates, update the firmware according to the manufacturer's instructions. - Check the current software version and if there is an available update, install it.
- Page 38 Radio Frequency (RF) Interference and Absorbing Obstructions Interference Interference Interference Type of Barrier Type of Barrier Type of Barrier Potential Potential Potential Wood Water Medium Plaster High Synthetic material Bricks Medium Concrete High Glass Marble Medium Bulletproof glass High Metal Very High...
- Page 39 OLED TV ENGLISH Easy Setup Guide OLED55C6P Please read this manual carefully before operating your set and retain it for future reference. OLED65C6P ESPAÑOL Guía Rápida de Confi guración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas. FRANÇAIS Guide de confi...
- Page 40 ENGLISH Read Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
- Page 41 OLED55C6P...
- Page 42 OLED65C6P...
- Page 46 Thickness / Grosor / Épaisseur Depth / Profundidad / Profondeur ENGLISH OLED55C6P OLED65C6P MODELS (OLED55C6P-U) (OLED65C6P-U) 1,225 x 762 x 191 (mm) 1,446 x 883 x 237 (mm) With stand 48.2 x 30 x 7.5 (inches) 56.9 x 34.7 x 9.3 (inches) Dimensions W x H x T (D) 1,225 x 714 x 48.9 (87.3) (mm)
