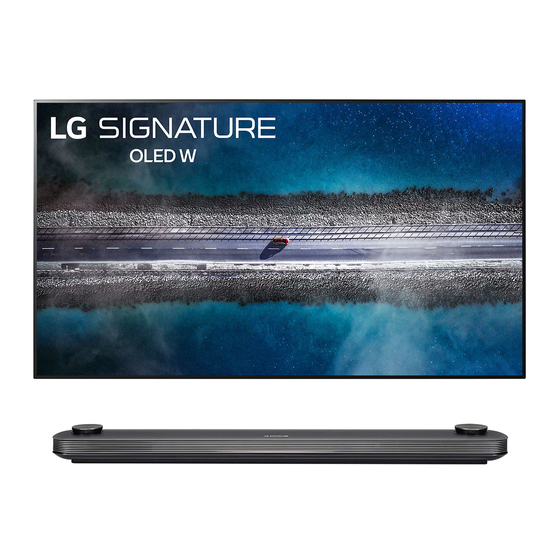

Summary of Contents for LG SIGNATURE SIGNATURE OLED77W9PTA
- Page 1 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. *MFL71182432* www.lg.com Copyright 2019 LG Electronics Inc. All Rights Reserved. (1901-REV00)
- Page 2 India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.) ATTENTION: This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices. When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.
- Page 3 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials CAUTION while unit is plugged in.
- Page 4 • Grounding (Except for devices which are not grounded.) • Batteries - TV with a three-prong grounded AC plug must be connected to - Store the accessories (battery, etc.) in a safe location out of the a three-prong grounded AC outlet. Ensure that you connect the reach of children.
-
Page 5: Separate Purchase
Preparing Separate Purchase • If the TV is turned on for the first time after it was shipped from the Separate purchase items can be changed or modified for quality factory, initialization of the TV may take a few minutes. improvement without any notification. -
Page 6: Lifting And Moving The Tv
Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • When supported cable is not long enough to connect Please note the following advice to prevent the TV from being scratched TV set with Companion Box (AV Box), you can use an or damaged and for safe transportation regardless of its type and size. - Page 7 • When installing the wall mount, check the positions of the wooden Provided item studs using a stud finder. Then, fasten the screws on at least two separate studs before proceeding. Stud Wall mount Punching Guide Wall mount Wall mounting screw Wall mounting anchor Ø5 x L65 •...
- Page 8 How to attach to masonry walls • When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables Please follow the below direction. on the back of the TV. 1 Use a drill bit Ø 8 mm to drill a hole for the anchor location within a •...
-
Page 9: Using The Kensington Security System
Using the kensington security Other connections system Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. (Only OLED65W9*) Some separate cable is not provided. The Kensington security system connector is located at the rear of the Companion Box (AV Box). -
Page 10: Using Button
Using Button • If you connect a gaming device to the TV, use the cable supplied with the gaming device. • In PC mode, there may be noise associated with the resolution, You can simply operate the TV functions, using the button. vertical pattern, contrast or brightness. - Page 11 Using Magic Remote To use the button, press and hold for more than 1 second. Control (POWER) Turns the TV on or off. (STB POWER) You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV. (Depending on model) Number buttons Enters numbers.
-
Page 12: Registering Magic Remote Control
Troubleshooting Registering Magic Remote Control How to register the Magic Remote Control Cannot control the TV with the remote control. • Check the remote control sensor on the product and try again. To use the Magic Remote, first pair it with your TV. •... - Page 13 • A blue light blinks on the front of the Companion Box (AV Box). - The TV may have a problem with the cooling fan or the temperature in the TV may be too high. Contact an authorized service center. •...
-
Page 14: Specifications
Specifications Broadcasting Specifications Analogue TV Digital TV (Depending on country) (Depending on country) PAL B/B, PAL B/G, DVB-T/T2 PAL D/K, PAL-I, Television system DVB-C SECAM B/G, SECAM D/K, DVB-S/S2 NTSC-M DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz UHF IV : 470 ~ 606 MHz Program coverage 46 ~ 862 MHz... - Page 15 (Only Philippines) Wireless module(LGSBWAC92)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output power(Max.) 2400 to 2483.5 MHz 18 dBm 5150 to 5725 MHz 18 dBm 5725 to 5850 MHz 18 dBm Bluetooth Frequency range Output power(Max.) 2400 to 2483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
-
Page 16: Open Source Software Notice Information
Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to... - Page 17 Important Information for Information on Functions Supporting Image Quality in Preventing Image Retention Relation to Temporary Image Retention OLED is a self-emissive technology, which brings many significant benefits to image quality and performance. As with any self-emitting • OLED TV offers a function called Pixel Refresher, which helps to display, it is possible for users of OLED TVs to experience temporary prevent temporary image retention.
- Page 18 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. •...
-
Page 19: Environmental Information
Environmental information (India region only) Disposal of your old appliance (as per e-waste Rules) 1 When this crossed out wheeled bin symbol is depicted on the product and its operator’s manual, it means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to be recycled, dismantled, refurbished or disposed off. - Page 20 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. MODEL SERIAL NO.
-
Page 21: Network Settings
SMART TV Quick Setup Guide * Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending on the OS(Operating System). * App icon positions may vary on the platform, depending on the software version. Network Settings 4 If the connection is successful, the "[Connected 1 Press the... -
Page 22: Troubleshooting Network Problems
Troubleshooting Network Problems 1 Press the (Settings) on the remote to Check the AP (Router) or consult your Internet access the settings menu. Point the ( ) [All service provider. Settings] icon and select by pressing the Wheel (OK) button on the remote. When X appears next to Gateway: Unplug the power cord of the AP (Router) and All Settings... -
Page 23: Updating The Tv Firmware
SmartShare Connection to Smartphone 1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
