Summary of Contents for LG SIGNATURE OLED65WXPUA

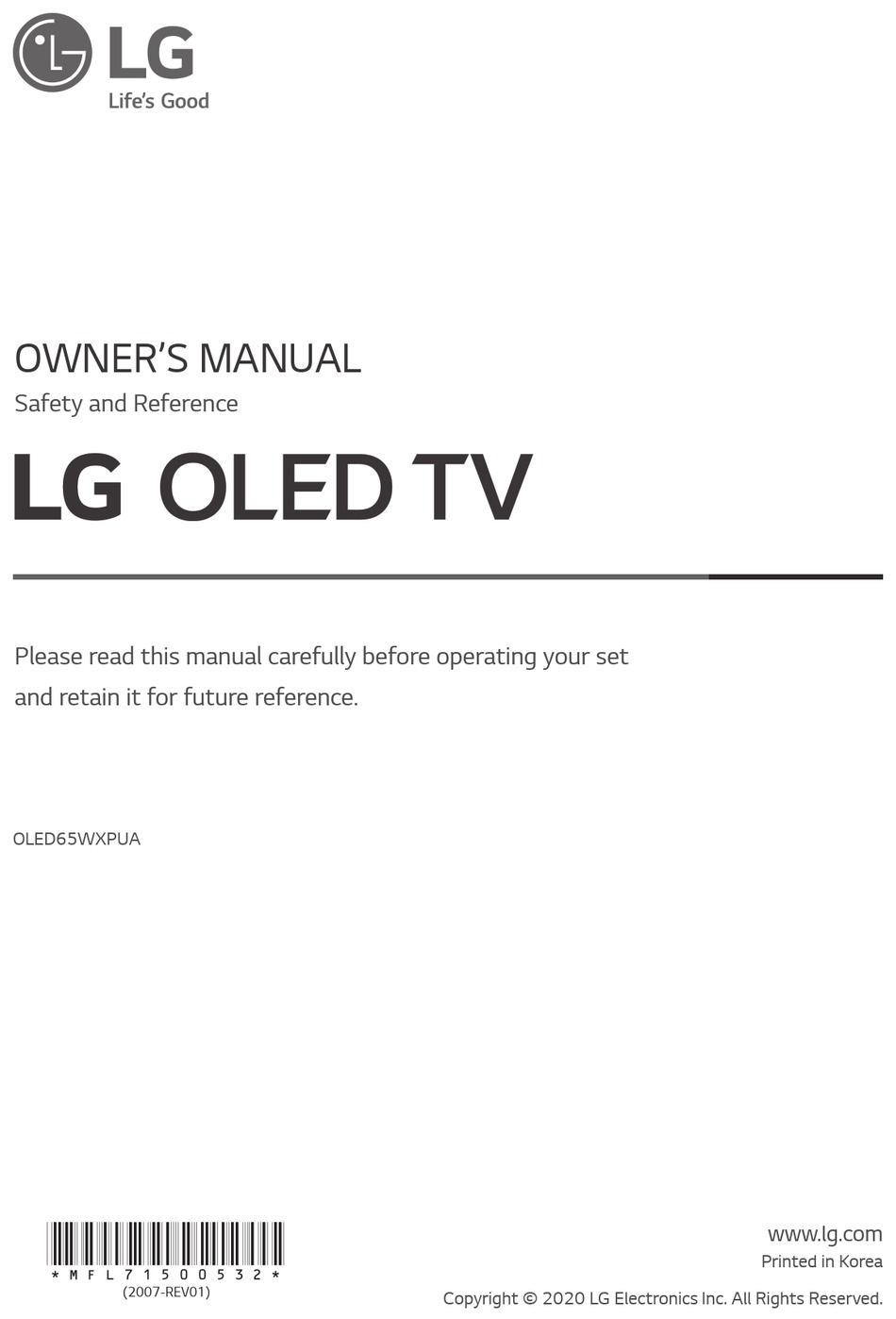

- Page 1 OWNER’S MANUAL Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. OLED65WXPUA www.lg.com *MFL71500532* Printed in Korea (2007-REV01) Copyright © 2020 LG Electronics Inc. All Rights Reserved.
-
Page 2: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 3 Warning! Safety • Ventilation - Install your TV where there is proper ventilation. Do not install in Instructions a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 4 • Grounding (Except for devices which are not grounded.) • Batteries - TV with a three-prong grounded AC plug must be connected to - Store the accessories (battery, etc.) in a safe location out of the a three-prong grounded AC outlet. Ensure that you connect the reach of children.
-
Page 5: Optional Extras
Preparing Optional Extras • When the TV is turned on for the first time after being shipped Optional extras can be changed or modified for quality improvement from the factory, initialization of the TV may take approximately without any notification. Contact your dealer for buying these items. one minute. -
Page 6: Lifting And Moving The Tv
Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not place the product on the floor with its front facing When moving or lifting the TV, read the following to prevent the TV down without padding. -
Page 7: Tools You Will Need
Provided item Wall mount Punching Guide Wall • When installing the wall mount, check the positions of the wooden Wall mounting screw studs using a stud finder. Then, fasten the screws on at least two Wall mounting anchor Ø5 x L65 separate studs before proceeding. -
Page 8: How To Attach To Masonry Walls
How to attach to masonry walls • When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the Please follow the below direction. back of the TV. • Do not install this product on a wall if it could be exposed 1 Use a drill bit Ø... -
Page 9: Other Connections
Connections IR Blaster • Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD You can connect various external devices to the TV. For more player, soundbar, game consoles, etc., using the IR Blaster. - Connect the IR Blaster cable to the TV’s IR Blaster port. information on external device’s connection, refer to the manual - Place both ends (one or two) of the IR Blaster in front of the provided with each device. -
Page 10: Using Button
Remote RS-232C setup Using Button To obtain the RS-232C external control setup information, please You can simply operate the TV functions, using the button. visit www.lg.com . Download and read the manual, (Depending upon model). • Do not drop the product or let it fall over when connecting external devices. - Page 11 Using Magic Remote To use the button, press and hold for more than 1 second. Control (POWER) Turns the TV on or off. (STB POWER) You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV. The descriptions in this manual are based on the buttons on the remote Number buttons Enters numbers.
-
Page 12: Registering Magic Remote Control
Troubleshooting Registering Magic Remote Control How to register the Magic Remote Control Cannot control the TV with the remote control. • Check if anything such as tape has been placed over the receiver. To use the Magic Remote, first pair it with your TV. •... - Page 13 Generated Sound • Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. • Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product.
-
Page 14: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). •... -
Page 15: Open Source Software Notice Information
Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. - Page 16 Important Information for Recommended Measures for Preventing Image Retention Preventing Image Retention • Avoid watching a video displaying an image as previously listed for extended periods of time. OLED is a self-emissive technology, which brings many significant • Adjust your TV settings as below when turning on a video benefits to image quality and performance.
- Page 17 Regulatory...
- Page 18 WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set.
-
Page 19: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 20 Supplier`s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 LG Customer Information Center E-mail lg.environmental@lge.com For inquires or comments, visit www.lg.com or call; The model and serial number of the product are located 1-800-243-0000 USA, Consumer User on the back and on one side of the product.
-
Page 21: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com P/NO : MFL71445401 (1901-REV00) -
Page 22: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 23 EXTERNAL CONTROL DEVICE SETUP EXTERNAL CONTROL DEVICE SETUP • Image shown may differ from your TV. Connect the USB to Serial(RS-232C) converter/RS-232C(Serial) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. Note: The type of control port on the TV can be different between model series.
- Page 24 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
-
Page 25: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 26: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 28 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 29 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 30 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 32 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
