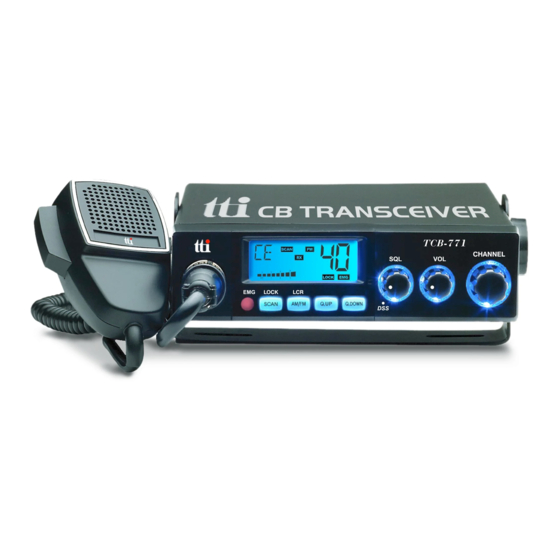

- Page 1 Downloaded from www.cbradio.nl 4W MOBILE CB TRANSCEIVER INSTRUCTION MANUAL www.ttikorea.co.kr...
-
Page 2: Table Of Contents
CONTENTS Introduction Supplied Accessories Installation Transceiver Controls and Functions Microphone Jack LCD Display Emergency Button Scan/Lock Button AM/FM and LCR Button Quick Up Button Quick Down Button Squelch Control knob Volume and Power On/Off Knob Channel Selector Antenna Connector S-Meter Power 12/24V EXT Jack LCD Display... -
Page 3: Introduction
The transceiver should normally be mounted horizontally, but may be mounted vertically. The bracket supplied can be fitted above or below the case allowing the TCB-771 to be cradled by the bracket or suspended from it. TCB-771... - Page 4 Connect the power cable to the transceiver cable. Mount the microphone bracket on one side of the transceiver, or near it using two screws included. Connect the microphone to the transceiver’s microphone receptacle. Now you are ready operate transceiver. TCB-771...
-
Page 6: Transceiver Controls And Functions
Pressing this button will lead you to the emergency channel, "CH 9" and the EMG icon will be displayed. The channel selector and quick up/quick down buttons will not work. To return to the previous operation mode, momentarily press the emergency button again. TCB-771... -
Page 7: Scan/Lock Button
When the transceiver is used in UK, UE, or EC freequency band modes this button activates or deactivates Last Channel Recall function. In all other modes (where national regulations permit this) this button allows user to switch between AM and FM modes by momentarily pressing this button. TCB-771... -
Page 8: Quick Up Button
10) Channel Selector Turn right or left, and this allows you to select the channel one by one that you like to use. 11) Antenna Connector Insert the mail connector of the antenna cable into this female antenna connector. TCB-771... -
Page 9: S-Meter
Connecting a loud speaker to this port makes the built-in speaker turned off. 5. LCD Display Selected Frequency Band Low Power (AM 1 Watt) Scan Transmit FM Mode AM Mode Channel Display Signal Strength Meter Receive Keypad Lock Emergency Channel Display TCB-771... -
Page 10: Menu Setting Mode
Beep Tone ) / Off( Time-out Timer Off( ) and 1~99 Sec. Scan Receive Timer Continue( ) and 1-99 Sec. Scan Delay Timer Off( ) and 1~99 Sec. (after Receiving signal) Backlight Dimmer High( ) / Low( ) / Off( TCB-771... -
Page 11: How To Operate The Transceiver
Turn on the transceiver and control the volume level. Adjust the squelch control knob to the optimum level. Select your desired channel. To transmit, press the PTT button and speak to the microphone. Release the PTT button to receive. TCB-771... -
Page 12: Band Selection
Italy 40 Ch AM / FM 4W Italy 34 Ch AM / FM 4W Germany 80 Ch FM 4W, 12 Ch AM 1W Germany 40 Ch FM 4W, 12 Ch AM 1W Europe 40 Ch FM 4W, 40 Ch AM 1W TCB-771... -
Page 13: Trouble Shooting
10. Trouble Shooting If you experience problems with your TCB-771 transceiver, first check the power supply source. Poor connection of the power supply source can cause problems such as no transmission, no reception or poor reception, and weak or no sound. Ensure that the microphone and antenna are also well connected. -
Page 14: Safety Requirement
The same colors are present on the battery and in the fuse box of the car. The unit must be wired for the negative ground only. To avoid damage, do not operate your CB radio without connecting a proper antenna. TCB-771... -
Page 15: Specification
60 dB Adjacent Channel Rejection 60 dB Conducted Spurious More than 60 dB Frequency Response 300 to 2500Hz Built-in Speaker 8 Ohms, round Squelch Adjustable; Threshold less than 1 microvolt * Specification is subject to change without prior notice. TCB-771... -
Page 16: Restrictions On The Use
40 Ch - 1W AM - Individual licence is required 40 Ch - 4W FM - Individual licence is required UK-RA-MPT 1382/MPT1320; UK-R&TTE - S.IL. 2000:730 POLAND 40 Ch - 4W FM / AM - Free use PL EU TCB-771... -
Page 17: Freequency Table
27.365 27.365 27.365 27.365 27.360 27.95125 27.375 27.375 27.375 27.375 27.375 27.370 27.96125 26.925 27.385 27.385 27.385 27.385 27.385 27.380 27.97125 26.935 27.395 27.395 27.395 27.395 26.945 27.395 27.390 27.98125 27.405 27.405 27.405 27.405 26.955 27.405 27.400 27.99125 AM/FM TCB-771... - Page 18 DECLARATION OF CONFORMITY We, TTI Tech Co.,Ltd (TTI house, 163-4, Poi-dong, Gangnam-gu, Seoul, Korea) declare on our sole responsibility that this equipment complies with the essential requirements of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC, and that any applicable Essential Test Suite measurements have been performed.
