- Page 1 PCN 641 T/IX/H PCN 642 /H(BK) PCN 642 T/H(BK) PCN 642 IX/H PCN 751 T/IX/H PCN 752 U/IX/H English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,8 Precautions and tips,8 Maintenance and care,9 Troubleshooting,9...
- Page 2 Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...

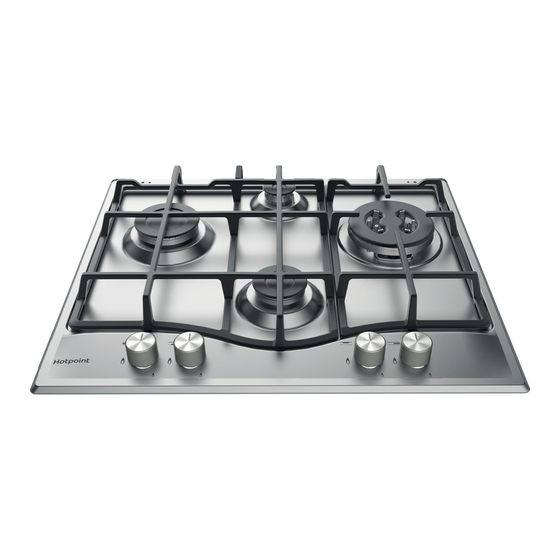

- Page 3 Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
- Page 4 Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully.
- Page 5 • Where the hob is not installed over a built-in oven, a wooden panel must ! The wires in the mains lead are coloured in accordance with the following be installed as insulation. This must be placed at a minimum distance of code: 20 mm from the lower part of the hob.
- Page 6 2. Unscrew the nozzles using a 7 mm socket spanner, and replace them DATA PLATE with nozzles for the new type of gas (see table 1 “Burner and nozzle characteristics”). Electrical see data plate connections 3. Reassemble the parts following the above procedure in the reverse order. 4.
- Page 7 PCN 642 IX/H II2H3+ 7,30 (531 g/h - G30) (521 g/h - G31) 220-240V~ 50/60Hz PCN 642 T/H(BK) PCN 641 T/IX/H II2H3+ 8,55 (622 g/h - G30) (611 g/h - G31) 220-240V~ 50/60Hz PCN 642 /H(BK) PCN 751 T/IX/H II2H3+ 10,20 (742 g/h - G30) (728 g/h - G31)
- Page 8 Start-up and use The more variable aspect in terms of pan stability can often be the pan itself, (or the positioning of that pan during use). ! The position of the corresponding gas burner is shown on every knob. Well balanced pans, with flat bases that are placed centrally over the burner, Gas burners with the pan handles aligned with one...
- Page 9 Disposal ! To avoid damaging the electric ignition device, do not use it when the burners are not in their housing. • When disposing of packaging material: observe local legislation so that the packaging may be reused. Gas tap maintenance •...
- Page 10 12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage.
- Page 12 195141573.00 01/2016 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.hotpoint.co.uk...
