Page 1: Table Of Contents
PHC 961 TS/IX/H English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,8 Precautions and tips,8 Maintenance and care,9 Troubleshooting,9 Product Guarantee and Repair Information,10... - Page 2 Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...

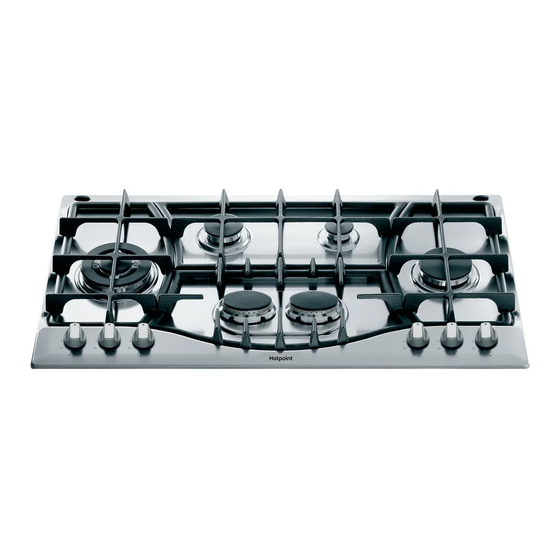

- Page 3 Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. SEMI-FISHBURNER 5. SAFETY DEVICES • Control Knobs for GAS BURNERS adjust the power or the size of the flame. •...
- Page 4 Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully.
- Page 5 ! The cable must not be bent or compressed. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be ! The cable must be checked regularly and replaced by authorised technicians removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 only (see Assistance).
- Page 6 • Setting the burners to minimum 1. Turn the tap to the low flame position; 2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady. 3.
- Page 7 Gas section Electric section Model Class Rated power (kW) Voltage and frequency Power (W) 11,50 (836 g/h-G30 821 g/h-G31) PHC 961 TS/IX/H II2H3+ 220-240V~ 50/60Hz The values in g/h refer to the capacities with liquid gas (Butane, Propane). PHC 961 TS/IX/H...
-
Page 8: Start-Up And Use,8
Start-up and use Practical Advice on Using the Half Fish-Kettle Burner The two “Half Fish-Kettle” burners, are eliptic in form and can be turned up to 90°. This makes the cooktop more flexible in terms of how it can be used. ! The position of the corresponding gas burner is shown on every knob. -
Page 9: Maintenance And Care,9
use of the appliance (e.g. for heating the room) constitutes improper • Stainless steel surfaces may be stained by calcareous water or aggressive use and is dangerous. The manufacturer may not be held liable for detergents if left in contact for too long. Any food spills (water, sauce, coffee, any damage resulting from improper, incorrect and unreasonable etc.) should be wiped away before they dry. - Page 10 The burner does not remain lit when set to minimum. Check to make sure that: • The gas holes are not blocked. • There are no draughts near the appliance. • The minimum setting has been adjusted properly. The cookware is unstable. Check to make sure that: •...
-
Page 11: Product Guarantee And Repair Information,10
12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage. - Page 12 195145534.00 05/2016 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.hotpoint.co.uk...
