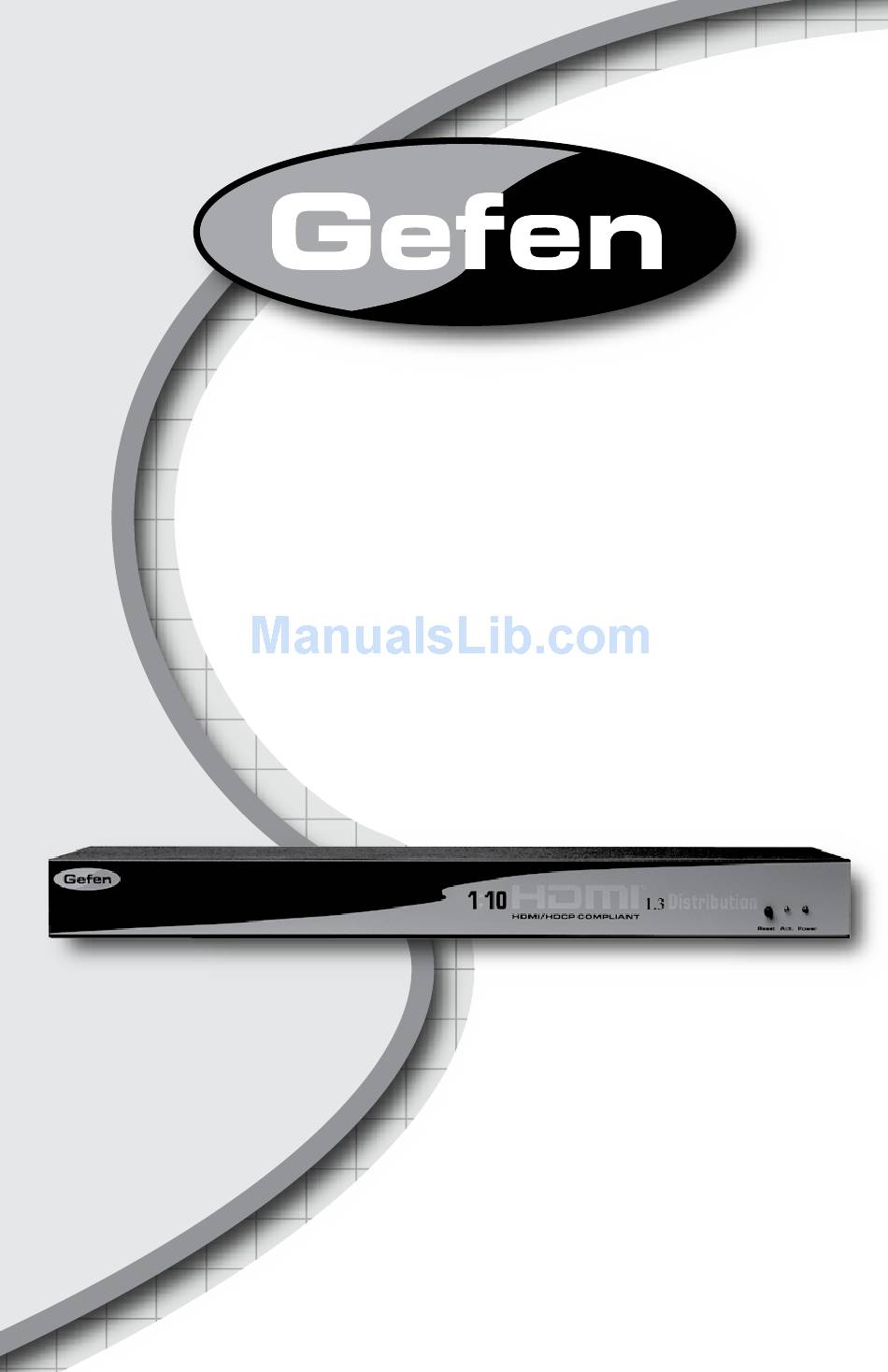

  • Page 1 1:10 HDMI 1.3 DA U S E R M A N U A L www.gefen.com...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. 1:10 HDMI 1.3 1.3 DA is a trademark of Gefen Inc. HDMI is a trademark of hdmi.org ©...

  • Page 3: Table Of Contents

    Introduction Features Panel Descriptions Connecting and Operating the 1:10 HDMI 1.3 DA Specifications Warranty TABLE OF CONTENTS...

  • Page 4: Introduction

    HDMI connections that can enable HDCP using “software key” decoding. Our Commitment Gefen will always offer the finest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers.

  • Page 5: Features

    Features • Connects up to ten HDMI™/DVI displays at the same time to one video source • Allows simultaneous display • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •...

  • Page 6: Panel Descriptions

    PANEL DESCRIPTIONS...

  • Page 7: Connecting And Operating The 1:10 Hdmi 1.3 Da

    CONNECTING AND OPERATING THE 1:10 HDMI 1.3 DA How to Connect the 1:10 HDMI 1.3 DA to your devices Connect the supplied cable from the HDTV HDMI source into the 1:10 HDMI 1.3 DA input. Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1:10 HDMI 1.3 DA.

  • Page 8: Specifications

    SPECIFICATIONS Video Amplifier Bandwidth...225 MHz Input Video Signal...1.2 volts p-p Input DDC Signal...5 volts p-p (TTL) Single Link Range...1080p/1920 x 1200 HDMI Connector...type A 19 pin female Power Supply...24V DC Power Consumption...60 watts (max) Dimensions...17”W x 1.75”H x 5.5”D Rackmountable...1U rack space Shipping Weight...8 lbs.
