Gefen HDMI-1410 User Manual

1:10 hdmi da
Hide thumbs

Advertisement

Table of Contents

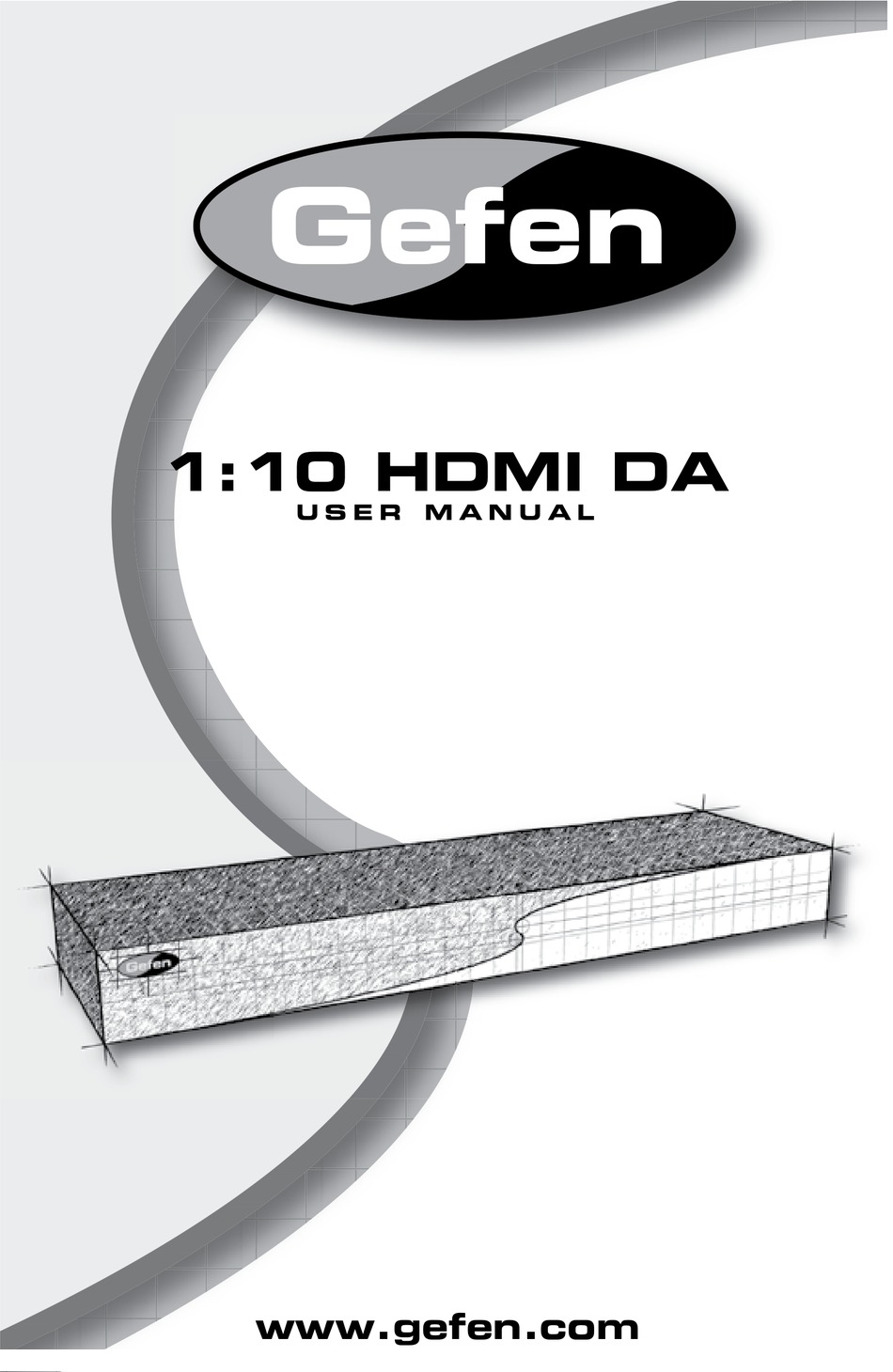

1:10 HDMI DA
U S E R
M A N U A L
www.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI-1410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gefen HDMI-1410

Summary of Contents for Gefen HDMI-1410

  • Page 1 1:10 HDMI DA U S E R M A N U A L www.gefen.com...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. 1:10 HDMI DA is a trademark of Gefen Inc. HDMI is a trademark of hdmi.org ©...

  • Page 3: Table Of Contents

    Introduction Features Panel Descriptions Connecting and Operating the 1:10 HDMI DA Specifications Warranty TABLE OF CONTENTS...

  • Page 4: Introduction

    HDMI connections that can enable HDCP using “software key” decoding. Our Commitment Gefen will always offer the finest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers.

  • Page 5: Features

    FEATURES Features • Connects up to ten HDMI™/DVI displays at the same time to one video source • Allows simultaneous display • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •...

  • Page 6: Panel Descriptions

    PANEL DESCRIPTIONS...

  • Page 7: Connecting And Operating The 1:10 Hdmi Da

    CONNECTING AND OPERATING THE 1:10 HDMI DA How to Connect the 1:10 HDMI DA to your devices Connect the supplied cable from the HDTV HDMI source into the 1:10 HDMI DA input. Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1:10 HDMI DA.

  • Page 8: Specifications

    SPECIFICATIONS Video Amplifier Bandwidth...1.65 Gbps Input Video Signal...1.2 volts p-p Input DDC Signal...5 volts p-p (TTL) Single Link Range...1080p/1920 x 1200 HDMI Connector...type A 19 pin female Power Supply...24V DC Power Consumption...60 watts (max) Dimensions...17”W x 1.75”H x 5.5”D Rackmountable...1U rack space Shipping Weight...8 lbs.
