Summary of Contents for Ubiquiti NS-5ACL

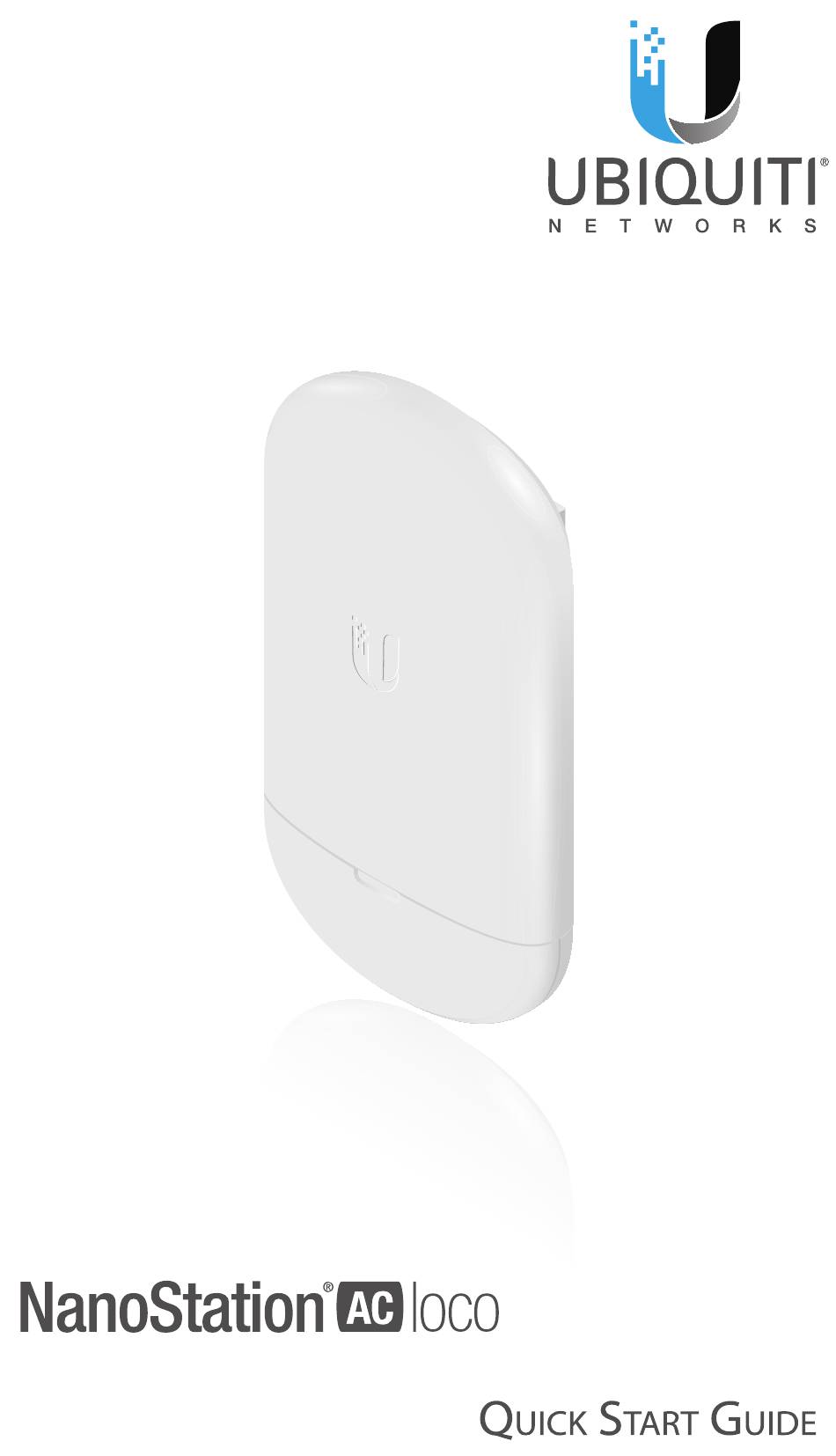

- Page 1 5 GHz airMAX ac Radio ® Model: NS-5ACL...
-
Page 2: Package Contents
Quick Start loco Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable • Surge protection should be used for all outdoor installations. -
Page 4: Hardware Overview
Hardware Overview Back View Mounting Bracket... -
Page 5: Port View
Port View Ethernet Reset Port Button The LED will light blue when the device is connected to a power source. Ethernet Port 10/100/1000 Ethernet port used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the NanoStation... -
Page 6: Hardware Installation
Hardware Installation 1. Remove the port cover by pressing down on the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet Port. 3. Replace the port cover. *640-00349-02* 640-00349-02... -
Page 7: Pole Mount
Pole Mount 1. Position the NanoStation loco at the desired location on a pole and insert a Zip Tie into the slot of the Mounting Bracket. - Page 8 2. Align the front of the NanoStation loco toward the other end of the wireless link. Then tighten the Zip Tie around the pole. 3. Connect the Ethernet cable from the NanoStation loco’s Ethernet port to a PoE‑enabled Ethernet port on a switch. WARNING: The switch port must comply with the power specifications listed in the...
- Page 9 1. Download the U Mobile app from the App Store (iOS) or Google Play (Android). ™ 2. Connect your device’s Wi‑Fi to the NanoStation loco SSID named: NS-5ACL:<MAC Address> Note: Ensure that DHCP is enabled on your Wi‑Fi adapter. 3. Launch the app.
- Page 10 5. Tap Connect on the Login screen. 6. Select your Country and tap Done. 7. Customize your settings as needed.
-
Page 11: Web Portal
Web Portal 1. Connect your device’s Wi‑Fi to the NanoStation loco SSID named: NS-5ACL:<MAC Address> Note: Ensure that your Wi‑Fi connection has DHCP enabled. 2. Launch a web browser and type the following URL into the address bar: http://setup.ubnt.com http://setup.ubnt.com 3. -
Page 12: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. -
Page 13: Specifications
Specifications NS‑5ACL Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") Weight 180 g (6.35 oz) Processor MIPS 74K Memory DDR2 64 MB Antenna Gain 13 dBi Networking Interface 10/100/1000 Mbps Ethernet Port Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power Supply 24V, 0.5A Gigabit PoE Supply* Max. -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 15: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 16: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 17 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 18 ISED Canada CAN ICES‑3(A)/NMB‑3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A‑NS5ACLW) has been approved by ISED Canada.
- Page 19 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique du type NS-5ACL est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp NS-5ACL der... -
Page 23: Online Resources
Português [Portuguese] O(a) abaixo assinado(a) UBIQUITI NETWORKS declara que o presente tipo de equipamento de rádio NS-5ACL está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: www.ubnt.com/compliance Română... - Page 24 New York, NY 10017 ©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, and NanoStation are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
