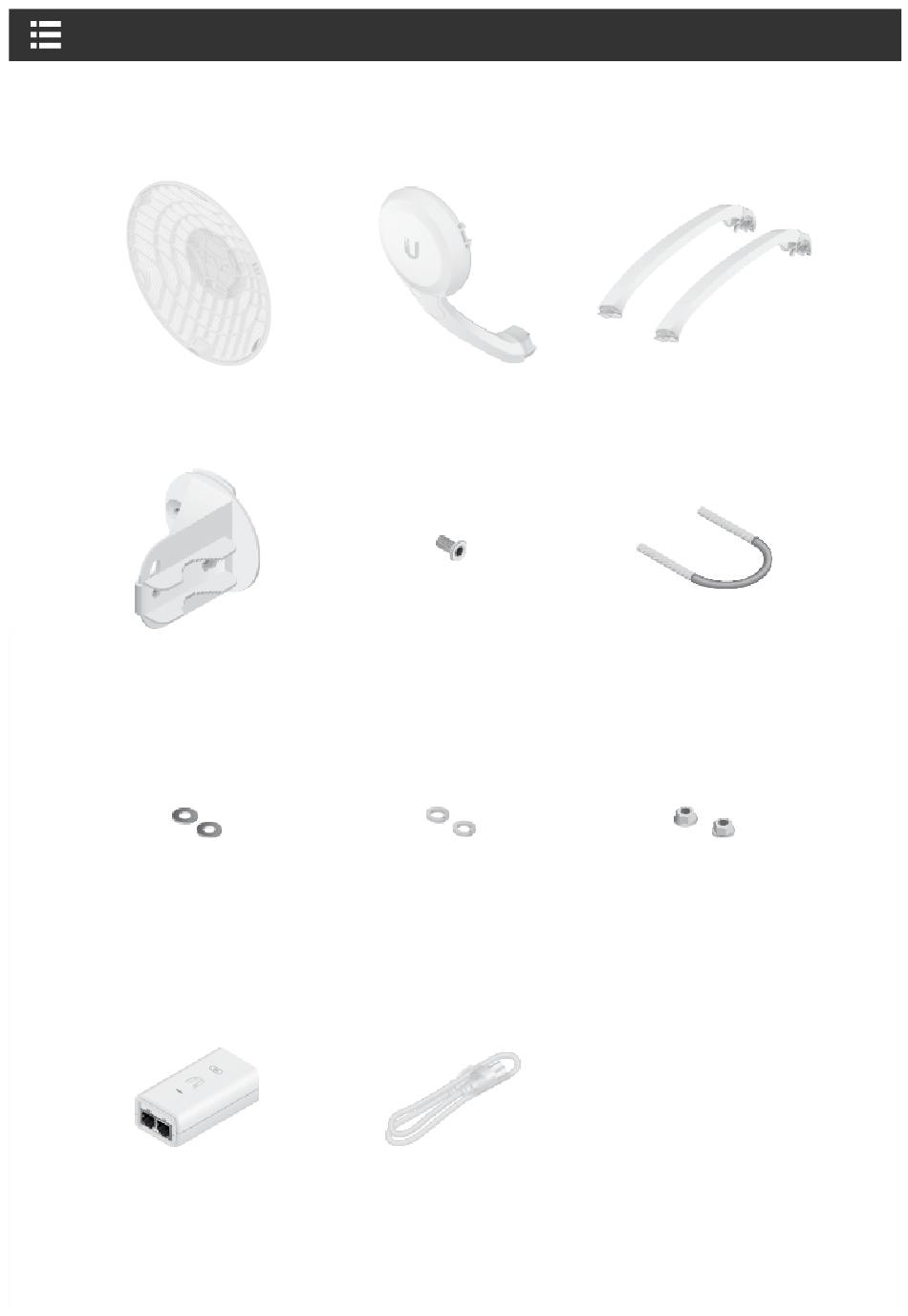

- Page 1 GBE-LR Quick Start Guide Package Contents Dish Main Arm Stabilizer Arms (Qty. 2) Mounting Bracket Screw U-Clamp Flat Washers (Qty. 2) Lock Washers (Qty. 2) Flange Nuts (Qty. 2) Gigabit PoE (24V, 0.5A) with Power Cord Mounting Bracket...
-
Page 2: Installation Requirements
Installation Requirements GBE-LR Quick Start Guide Clear line of sight between GigaBeam AP and station Vertical mounting orientation Mounting point: At least 1 m below the highest point on the structure For tower installations, at least 3 m below the top of the tower Outdoor, shielded Category 6 (or above) cabling and shielded RJ45 connectors are required for all wired Ethernet connections. - Page 3 GBE-LR Quick Start Guide 60 GHz LED Lights steady blue when the 60 GHz link is ready. 5 GHz LED Lights steady blue when the 5 GHz link is ready. LAN LED The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity.
-
Page 4: Installation
White Ready for use, not connected to Ubiquiti® GBE-LR Quick Start Guide Network Management System (UNMS™). See “UNMS Management”. Blue Ready for use, connected to UNMS. Steady Blue with Ready for use, unable to connect to UNMS, check Occasional Flashing connection to UNMS server. - Page 5 GBE-LR Quick Start Guide OPTIONAL Attach the stabilizer arms for added support. (This is recommended for long-range installations.)
- Page 6 GBE-LR Quick Start Guide Note: The GBE-LR can mount on either side of the pole. This section shows the GBE-LR mounted on the left; the procedure for mounting on the right is similar.
- Page 7 GBE-LR Quick Start Guide Right Left Note: Rotate the Mounting Bracket clockwise until it locks into position.
- Page 8 GBE-LR Quick Start Guide...
- Page 9 GBE-LR Quick Start Guide (Pole not shown)
- Page 10 GBE-LR Quick Start Guide...
-
Page 11: Connecting Power
GBE-LR Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in “Specifications”. - Page 12 GBE-LR Quick Start Guide Optional Configuration The device is set to DHCP by default, so it will try to automatically obtain an IP address. If that fails, it will use the default fallback IP address, 192.168.1.20. Proceed to the appropriate section, DHCP or “Fallback IP Address”: DHCP...
- Page 13 GBE-LR Quick Start Guide 4. Enter a Username and Password, confirm the Password, and click Save. 5. Click the icon. 6. Configure the following settings: a. For one device, enable Access Point mode. For the other device (the Station), keep Access Point disabled. b.
- Page 14 characters long. GBE-LR Quick Start Guide 7. Click Save Changes. 8. Configure each device (AP and Station) with a unique IP address: a. Click the icon. b. Review the Network settings to ensure that each device has a unique IP address.
- Page 15 4. Select your Country and Language. You must agree to the Terms of Use to use GBE-LR Quick Start Guide the product. Click Continue. 5. Enter a Username and Password, confirm the Password, and click Save. 6. Click the icon. 7.
- Page 16 c. In the WPA2 Preshared Key field, enter a combination of alphanumeric GBE-LR Quick Start Guide characters (0-9, A-Z, or a-z). Note: The key is an alphanumeric password between 8 and 63 characters long. 8. Click Save Changes. 9. Configure each device (AP and Station) with a unique IP address: a.
- Page 17 GBE-LR Quick Start Guide Tips To accurately align the radios for best performance, you MUST align only one end of the link at a time. You may need to use additional hardware to compensate for issues such as the improper orientation of a mounting pole or significant elevation differences between radios.
-
Page 18: Installer Compliance Responsibility
GBE-LR Quick Start Guide Note: Do NOT make simultaneous adjustments on the AP and Station. Station Visually aim the Station at the AP. To adjust the Station’s position, adjust the azimuth and elevation as described in step 1. 3. Open the Configuration Interface. Select Tools and then select Align Antenna. 4. -
Page 19: Specifications
GBE-LR Quick Start Guide Antenna The 5GHz Output Power field is provided to the professional installer to assist in meeting regulatory requirements. Specifications GBE-LR Dimensions 415 x 415 x 303 mm (16.34 x 16.34 x 11.93") Weight Without Mount 1.4 kg (3.09 lb) With Mount 1.8 kg (3.97 lb) Enclosure... -
Page 20: Safety Notices
GBE-LR GBE-LR Quick Start Guide Mounting Pole Mount (Included) ESD/EMP Protection ± 24kV Contact/Air Operating Temperature -40 to 60° C (-40 to 140° F) Operating Humidity 5 to 95% Noncondensing Certifications FCC, IC, CE Radio Max. Conducted TX Power 5/60 GHz Combined 25 dBm Channel Bandwidth 60 GHz... -
Page 21: Limited Warranty
specified may result in improper operation, damage to the equipment or pose a fire GBE-LR Quick Start Guide hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. 3. - Page 22 This radio transmitter FCC ID: SWX-GBELR / IC: 6545A-GBELR has been approved by FCC GBE-LR Quick Start Guide / ISED Canada. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à...
-
Page 23: Weee Compliance Statement
36 dBm. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. - Page 24 GBE-LR Quick Start Guide...
