Ubiquiti IsoStation IS-5AC Quick Start Manual

Ubiquiti IsoStation IS-5AC Quick Start Manual

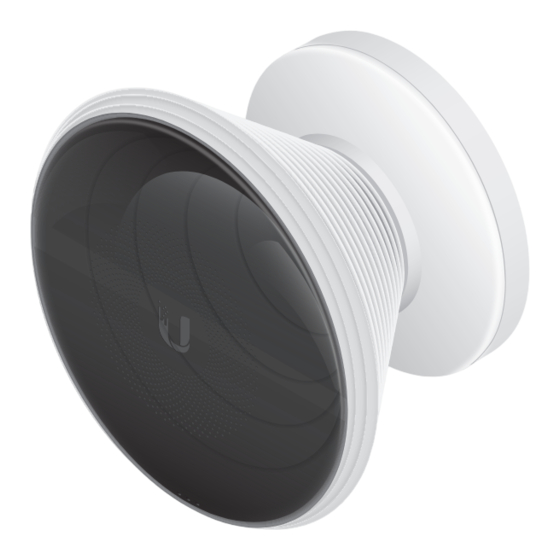

Shielded airmax ac radio with isolation antenna
Hide thumbs Also See for IsoStation IS-5AC:
Table of Contents

Advertisement

Quick Links

Download this manual

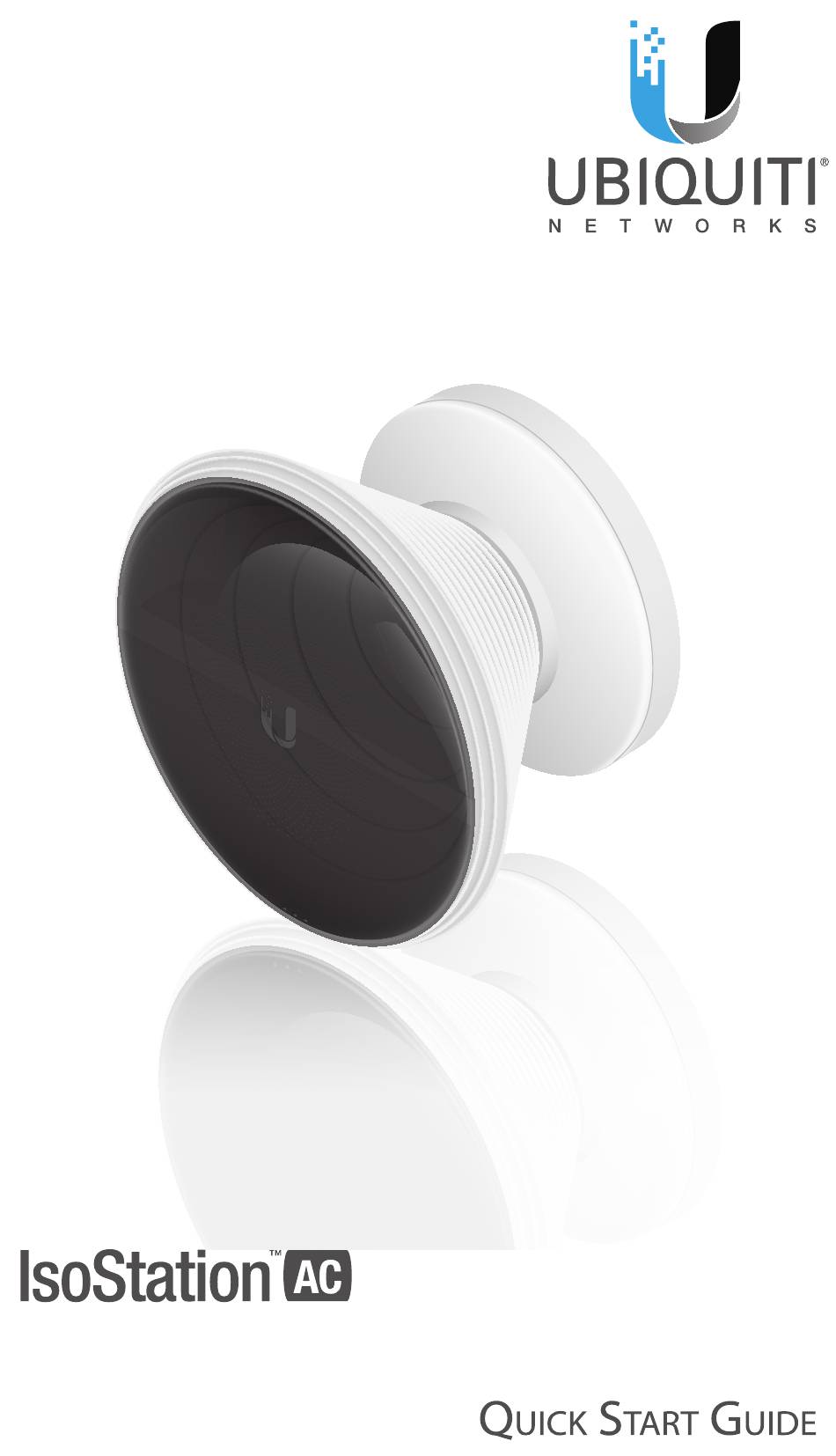

Shielded airMAX
ac Radio
®
with Isolation Antenna
Model: IS-5AC

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti IsoStation IS-5AC

Summary of Contents for Ubiquiti IsoStation IS-5AC

  • Page 1 Shielded airMAX ac Radio ® with Isolation Antenna Model: IS-5AC...

  • Page 2: Package Contents

    Quick Start with Mounting Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable • Surge protection should be used for all outdoor installations.

  • Page 4: Hardware Overview

    Hardware Overview Power Reset Button Ethernet Port Power LED The LED will light blue when the device is connected to a power source. Ethernet Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server.

  • Page 5: Hardware Installation

    Hardware Installation These instructions show the default horn antenna (beamwidth: 45°); however, the IsoStation is also compatible with the following antennas: • Horn-5-30 • Horn-5-60 • Horn-5-90 • U-OMT-Dish (refer to the U-OMT-Dish Quick Start Guide for installation instructions) 1. To install the horn antenna, insert the horn antenna into the IsoStation and align the arrow on the horn antenna with the Release Button.

  • Page 6: Pole Mounting

    Pole-Mounting The IsoStation was designed for quick mounting on a pole. 1. Open the Metal Strap and feed it through the base of the IsoStation. 2. Wrap the Metal Strap around the pole. Use a 7 mm socket wrench to turn the screw clockwise and securely fasten the clamp to the pole.

  • Page 7: Connecting Power

    Connecting Power 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Remove the rubber gasket from the port cover.
  • Page 8 3. Connect an Ethernet cable to the Ethernet port. 4. Replace the port cover.
  • Page 9 5. Fit the rubber gasket over the Ethernet cable, and then slide the gasket into the port cover. 6. Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. •...
  • Page 10 Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port on the PoE Adapter. 3. Connect the Power Cord to the PoE Adapter, and then plug the Power Cord into a power outlet.
  • Page 11 Accessing airOS via Wi-Fi Verify connectivity in the airOS® Configuration Interface. There are two methods, the UNMS app and Web Portal. Both are ™ available for 15 minutes immediately after you power on the IsoStation. If necessary, you can power cycle the IsoStation to re-enable its Wi-Fi.
  • Page 12 5. Tap Connect on the Login screen. 6. Select your Country and tap Done. 7. Customize your settings as needed.

  • Page 13: Web Portal

    Web Portal 1. Connect your device’s Wi-Fi to the IsoStation SSID named: IS-5AC:<MAC Address> Note: Ensure that your Wi-Fi connection has DHCP enabled. 2. Launch your web browser and go to: http://setup.ubnt.com http://setup.ubnt.com 3. Enter ubnt in the Username and Password fields. Select your Country and Language.

  • Page 14: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements.

  • Page 15: Specifications

    Specifications IS-5AC Dimensions 174 x 174 x 150 mm (6.85 x 6.85 x 5.91") Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56") Weight 725.7 g (1.60 lb) Without Horn 408.2 g (0.90 lb) Beamwidth 45° (Default Horn) Networking Interface (1) 10/100/1000 Ethernet Port Power...

  • Page 16: Safety Notices

    (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,...

  • Page 17: Warranty Conditions

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

  • Page 20: Australia And New Zealand

    CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage; l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

  • Page 21: Rohs/Weee Compliance Statement

    Country List AT BE BG CY CZ DE DK EE EL ES FR HR LU MT NL PL PT RO BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating...
  • Page 22 und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben.

  • Page 23: Declaration Of Conformity

    English Hereby, UBIQUITI NETWORKS declares that the radio equipment type IS-5AC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme...

  • Page 24: Online Resources

    Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, IsoStation, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
