Summary of Contents for Ubiquiti LBE-5AC-Gen2

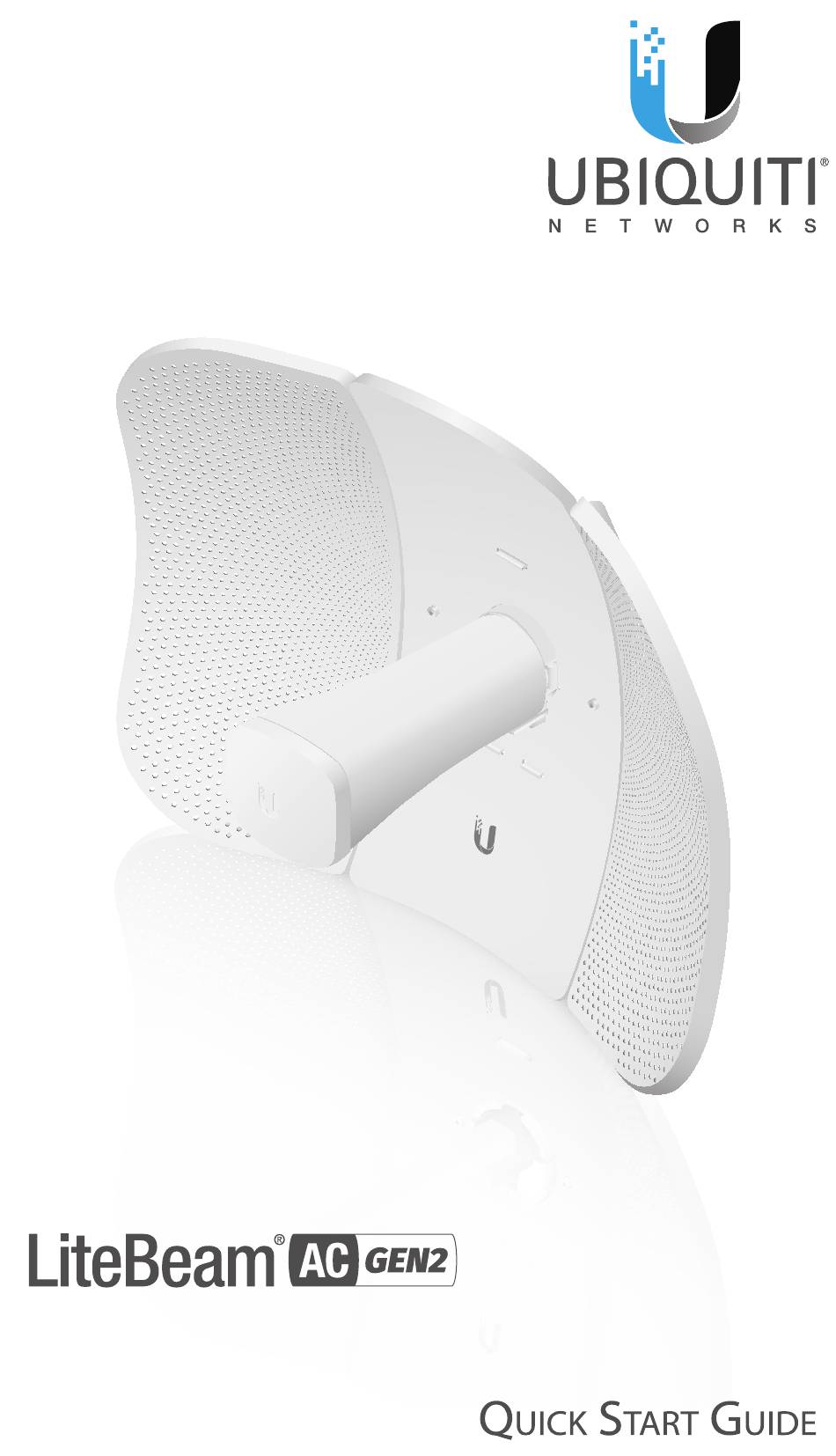

- Page 1 5 GHz airMAX ac Radio with ® InnerFeed Technology ® Model: LBE-5AC-Gen2...
-
Page 2: Package Contents
Mounting Bracket Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Application Examples The LiteBeam AC mounted outdoors with the reflector installed provides directional outdoor coverage (gain reflector‑dependent). -
Page 4: Hardware Overview
Hardware Overview Bottom View Technology LEDs Reset Button Ethernet Port Antenna Feed Re ector Assembly Securing Arms Port Cover Feed Receiver Elevation Mount Azimuth Mount... - Page 5 LEDs Ethernet The LED will light steady blue when an active Ethernet connection is made and flash when there is activity. Power The LED will light blue when the device is connected to a power source. Button Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the LiteBeam AC is powered on.
