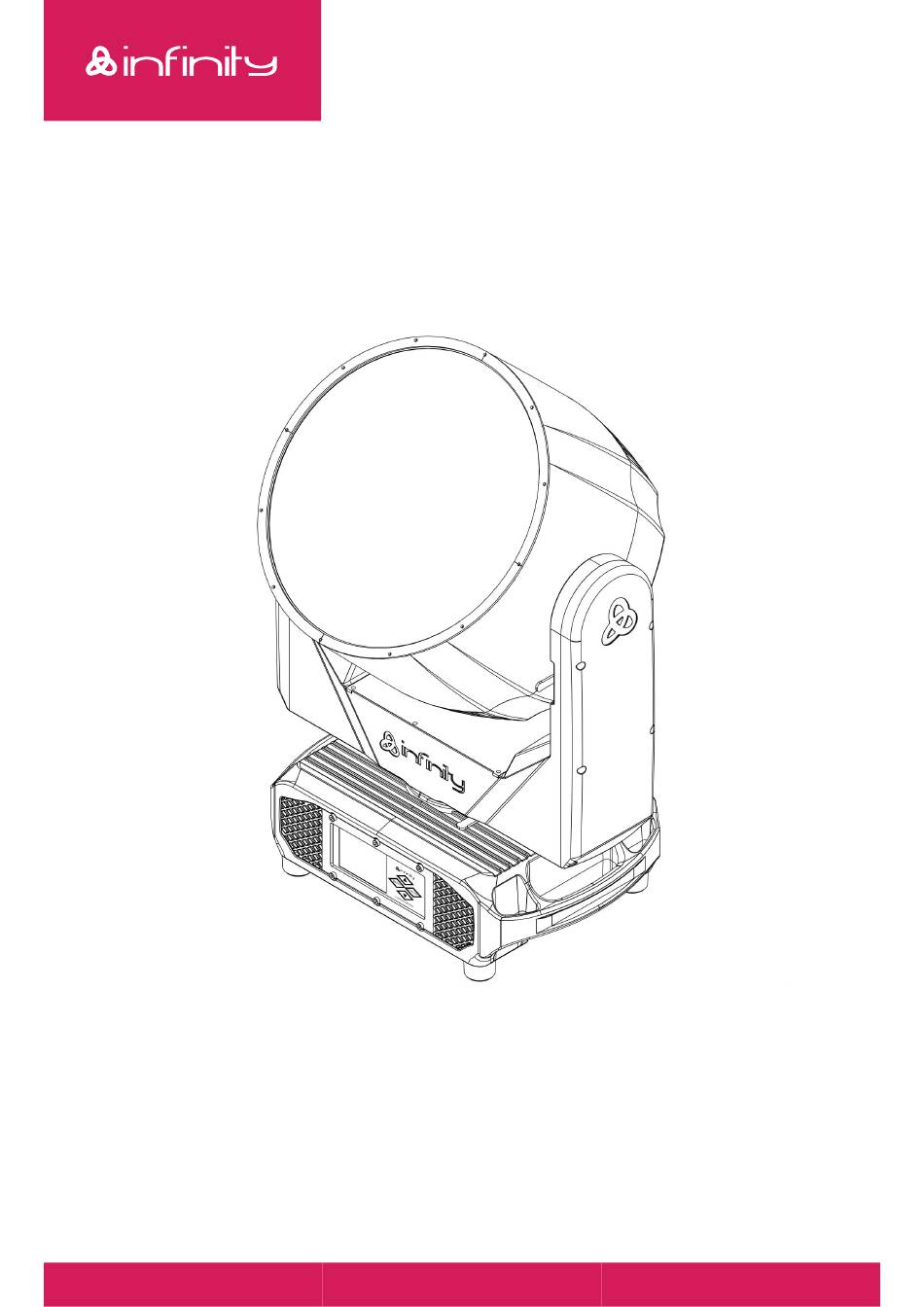

  • Page 1 USER MANUAL ENGLISH V1.0 Furion W602 WashBeam Product code: 41441...
  • Page 2 Furion W602 WashBeam Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion W602 WashBeam Table of contents 1. Introduction ............................
  • Page 4 Furion W602 WashBeam 6.7.2.1.1. Enter Lock Code ..................... . .

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion W602 WashBeam • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion W602 WashBeam 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion W602 WashBeam Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion W602 WashBeam WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.

  • Page 9: Requirements For The User

    Furion W602 WashBeam • • If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.

  • Page 10: Description Of The Device

    Description of the Device The Infinity Furion W602 WashBeam is an IP65-rated moving head with 19 x 45 W RGBW LEDs. This device has a motorized zoom that enables seamless transitions between a narrow 3° beam and a wide 34,1° wash.

  • Page 11: Back View

    Furion W602 WashBeam 3.2. Back View Figure 3 Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F20 AL, 250 V) IP65-rated 5-pin DMX signal connector IN IP65-rated 5-pin DMX signal connector OUT...

  • Page 12: Product Specifications

    Furion W602 WashBeam 3.4. Product Specifications Model: Furion W602 WashBeam Source: Light source type LED  Light source quantity 19  Light source power 45 W LED color type RGBW  Refresh rate 600 Hz Refresh rate (max.) 15 kHz Luminous flux (total) 11148 lm Luminous flux (red) 2262 lm...
  • Page 13 Furion W602 WashBeam Power connector OUT Power Pro True  DMX connector XLR 5P IN/OUT DMX connector IN XLR 5P  DMX connector OUT XLR 5P  Data connector etherCON IN/OUT Data connector IN RJ45  Data connector OUT RJ45  Mechanical Specifications: Length 330 mm Width 430 mm...

  • Page 14: Dimensions

    Figure 5 3.6. Optional Accessories You can additionally purchase the following accessory: • • D7278 Case for 2x Furion W602 WashBeam • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41441...

  • Page 15: Installation

    Furion W602 WashBeam Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 16 Furion W602 WashBeam Figure 7 Figure 8 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 17: Lock/Unlock The Device

    Furion W602 WashBeam 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (15) to the the right or slide the yoke locking mechanism (02) downwards.

  • Page 18: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 1 devices Furion W602 WashBeam • • at 200–240 V: 2 devices Furion W602 WashBeam Product code: 41441...

  • Page 19: Setup

    5.2. Stand-alone Setup When the Furion W602 WashBeam is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 20: Dmx Linking

    Furion W602 WashBeam Figure 10 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 21: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 179 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion W602 WashBeam correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 22: Ethernet Connection

    Furion W602 WashBeam 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 23: Art-Net/Sacn Linking

    Furion W602 WashBeam 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 24: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion W602 WashBeam supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 25: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 26: Display Lock

    Furion W602 WashBeam I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 27: Unlocking Without Password

    Furion W602 WashBeam 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 28: Menu Overview

    Furion W602 WashBeam 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7.1. DMX Address on page Address Setting 001–512 Screen Reverse AUTO Pan Reverse Tilt Reverse Zoom Reverse Pan Angle Tilt Angle BL.O.P/T Move Auto Pan Invert Activate Lock Code                    ...
  • Page 29 Furion W602 WashBeam Level 1 Level 2 Level 3 Level 4 Linear Square Dimmer Curve I Squa SCurve Smooth Dimmer Speed Fast 600 Hz 1200 Hz 2000 Hz PWM Option 4000 Hz 6000 Hz 15000Hz 100–255 Green 100–255 Color Balance Blue 100–255...
  • Page 30 Furion W602 WashBeam Level 1 Level 2 Level 3 Level 4 Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 40) WDMX Control Mode ArtNet sACN Basic Pixel Personality Advance User 76+14 NO/1~Advance Num Pan Fine NO/1~Advance Num Tilt...
  • Page 31 Furion W602 WashBeam Level 1 Level 2 Level 3 Level 4 Red 19 Fine NO/1~Advance Num Green 19 NO/1~Advance Num Green 19 Fine NO/1~Advance Num Blue 19 NO/1~Advance Num Blue 19 Fine NO/1~Advance Num White 19 NO/1~Advance Num White 19 Fine...
  • Page 32 Furion W602 WashBeam Level 1 Level 2 Level 3 Level 4 Pan Fine 000–255 Tilt 000–255 Tilt Fine 000–255 P/T Speed 000–255 Dimmer 000–255 Dimmer Fine 000–255 Shutter 000–255 Color 000–255 000–255 Red Fine 000–255 Green 000–255 Green Fine 000–255 Blue 000–255...

  • Page 33: Main Menu Options

    Furion W602 WashBeam 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 34: Settings Menu

    Furion W602 WashBeam 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 26 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 35: Lock Code

    Furion W602 WashBeam • • Auto Pan Invert: Invert the pan direction automatically, depending on the position of the device (ON/OFF) • • Lock Code (see 6.7.2.1. Lock Code) • • WDMX: Activate/deactivate Wireless DMX (ON/OFF) • • Wireless Unlink: Terminate the connection between the device and the transmitter (NO/YES) •...

  • Page 36: Enter Lock Code

    Furion W602 WashBeam 6.7.2.1.1. Enter Lock Code In this menu you can set Enter Lock Code for the device. 01) Press the UP/DOWN buttons to increase/decrease the values in order to create your personal code. Set the lock code 0000–9999.

  • Page 37: Dimmer Curve

    Furion W602 WashBeam 6.7.2.4. Dimmer Curve In this submenu you can select the dimming curve. 01) Press the UP/DOWN buttons to select one of the 4 options: • • Linear • • Square • • Inverse Square • • S-Curve 02) Press the ENTER button to confirm.

  • Page 38: Color Balance

    Furion W602 WashBeam 6.7.2.6. Color Balance In this submenu you can adjust color brightness of the LEDs. 01) Press the UP/DOWN buttons to select one of the 4 options: • • • • Green • • Blue • • White 02) Press the ENTER button to confirm the selection 03) Press the UP/DOWN buttons to change the value.

  • Page 39: Service Menu

    Furion W602 WashBeam 6.7.2.9. Service Menu In this submenu you can make fine adjustments of the home position of all moving parts, change the MAC address and the RDM identification number of the device or change RGBW. There are 2 passwords to enter the service menu: •...

  • Page 40: Password 2322

    Furion W602 WashBeam 6.7.2.9.2. Password 2322 01) Press the UP/DOWN buttons to insert the master code: 2322. 02) Select ENTER to confirm. 03) Press the UP/DOWN buttons to scroll through the 4 available options: • • • • Green •...

  • Page 41: Stand Alone

    Furion W602 WashBeam 6.7.3. Stand Alone In this menu you can set the built-in program. Press the UP/DOWN buttons to start one of the 9 built-in programs. The display shows: 6.7.4. Control Mode In this menu you can set the control mode, personality and user personality.

  • Page 42: Manual Control

    Furion W602 WashBeam 04) Press the ENTER button to confirm the selection. 6.7.5. Manual Control In this menu you can set Auto Test or Manual Test. 01) Press the UP/DOWN buttons to scroll through the 2 available options: • •...

  • Page 43: Manual Test

    Furion W602 WashBeam 6.7.5.2. Manual Test In this submenu you can test each function of the device individually or as a group. It is possible to customize the device by changing the value of each function manually. These functions are the same as the 179 DMX channels in Advance personality.

  • Page 44: Fixture Info

    Furion W602 WashBeam 6.7.6.1. Fixture Info In this submenu you can view the currently installed firmware version, operation mode, DMX address and other parameters of the device. Press the UP/DOWN buttons to see all available parameters. • • Ver: Shows the current software version •...

  • Page 45: Error Info

    Furion W602 WashBeam 6.7.6.3. Error Info In this submenu you can view whether there are any system errors. If you have selected Error Info and there are no errors the display shows: Note: In case of an error message, discontinue the use of the device and contact your Highlite International dealer for more information.

  • Page 46: Dmx Channels

    Furion W602 WashBeam 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Pixel Advanced DMX+ArtNet Function Setting Default Highlight 19 CH 96 CH 179 CH 76+14 CH Value 000–255 0–540° Pan fine 16bit 000–255 Fine positioning Tilt 000–255 0–260° Tilt fine 16bit 000–255 Fine positioning...

  • Page 47: Dmx Channels Overview

    Furion W602 WashBeam 6.8.2. DMX Channels Overview Basic Pixel Advance DMX (76)+ Function Value Setting Control type 19 CH 96 CH 179 CH ArtNet(14) 000–255 Pan adjustment 0°–540° Pan Fine 000–255 Pan adjustment, 16-bit Tilt 000–255 Tilt adjustment 0°–260° Tilt Fine 000–255 Tilt adjustment, 16-bit...
  • Page 48 Furion W602 WashBeam Basic Pixel Advance DMX (76)+ Function Value Setting Control type 19 CH 96 CH 179 CH ArtNet(14) 000–255 0–100% Red 16-bit 000–255 Fine adjustment Green 000–255 0–100% Green 16-bit 000–255 Fine adjustment Blue 000–255 0–100% Blue 16-bit 000–255 Fine adjustment...
  • Page 49 Furion W602 WashBeam Basic Pixel Advance DMX (76)+ Function Value Setting Control type 19 CH 96 CH 179 CH ArtNet(14) Cyan（R=0，G=255，B=255， step W=0） 050–086 R=0，G=255，B-，W=0 proportional Green（R=0，G=255，B=0， step W=0） 088–124 R+，G=255，B=0，W=0 proportional Yellow（R=255，G=255， step B=0，W=0） 126–162 R=255，G-，B=0，W=0 proportional Red（R=255，G=0，B=0， step W=0）...
  • Page 50 Furion W602 WashBeam Basic Pixel Advance DMX (76)+ Function Value Setting Control type 19 CH 96 CH 179 CH ArtNet(14) 070–074 Single color calibration ON step 075–079 Preset Color HTP OFF step 080–084 Preset Color HTP ON step 085–089 Fans Auto step 090–094 Fans Full...

  • Page 51: Rdm Information

    Furion W602 WashBeam 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E5XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 52: Troubleshooting

    Furion W602 WashBeam Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 53: Error Messages

    Furion W602 WashBeam 7.1. Error Messages In case one of the error messages below appears on the error information screen, discontinue the use of the device and contact your local dealer. For more information, refer to Error Info (see 6.7.6.3. Error Info on page 44).

  • Page 54: Maintenance

    Furion W602 WashBeam Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 55: Replacing The Fuse

    06) Replace the fuse holder in the opening and tighten the fuse cover. 8.3.2. Draining Condensation Water The Furion W602 WashBeam is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 56: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion W602 WashBeam, product code 41441, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
