Infinity Furion P402 Profile User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

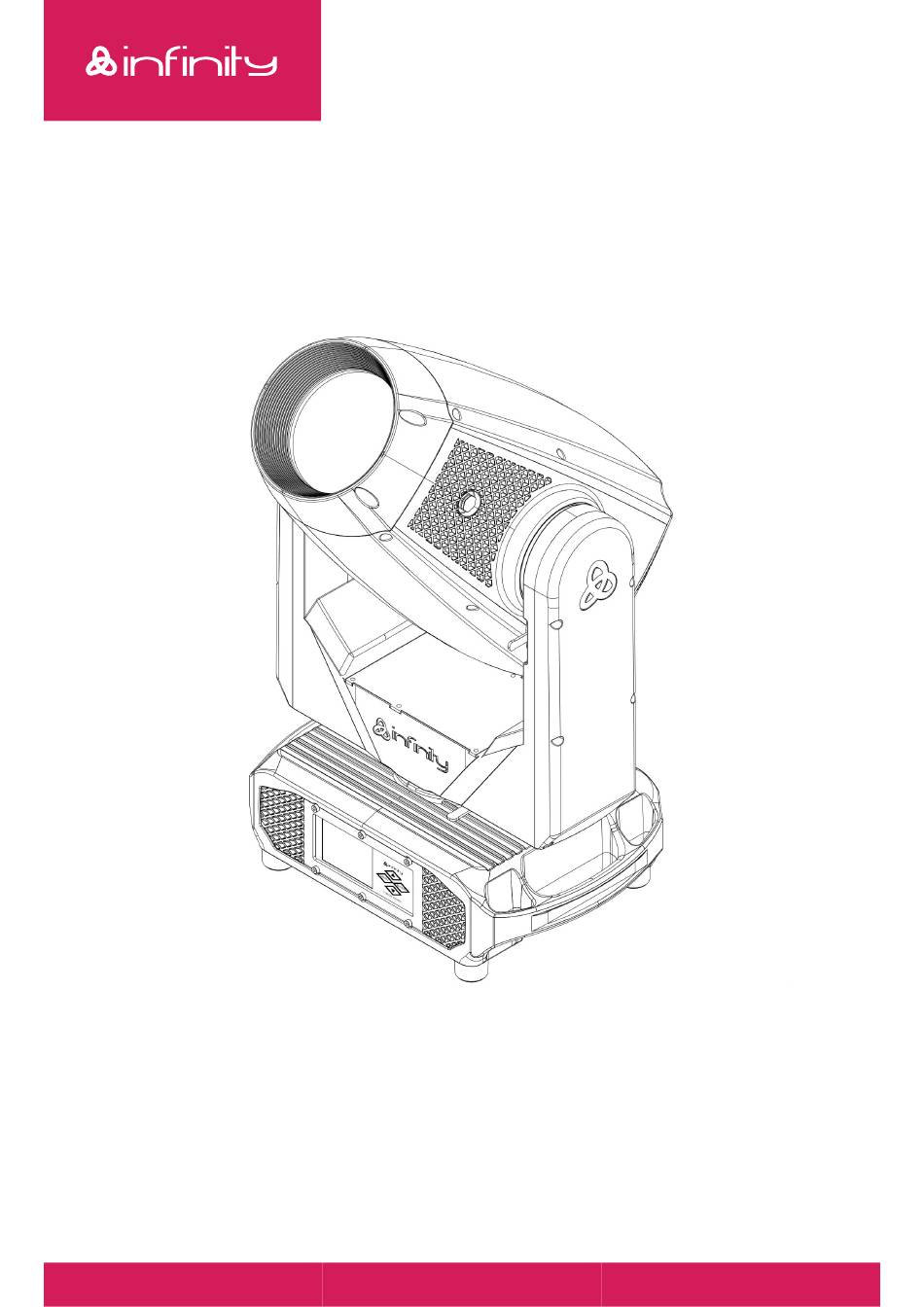

USER MANUAL
ENGLISH
V1.0
Furion P402 Profile
Product code: 41460
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furion P402 Profile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity Furion P402 Profile

Summary of Contents for Infinity Furion P402 Profile

  • Page 1 USER MANUAL ENGLISH V1.0 Furion P402 Profile Product code: 41460...
  • Page 2 Furion P402 Profile Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion P402 Profile Table of contents 1. Introduction ............................
  • Page 4 Furion P402 Profile 6.7. Main Menu Options ........................

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion P402 Profile • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion P402 Profile 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion P402 Profile Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion P402 Profile WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.

  • Page 9: Requirements For The User

    Furion P402 Profile • • If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.

  • Page 10: Description Of The Device

    Description of the Device The Infinity Furion P402 Profile is an IP65-rated moving head with a 350 W flat-field LED. This device has a motorized zoom that enables seamless transitions between a slender 5,2° beam and a wide 32,2° wash. This device has a color wheel with 8 colors, plus an open position and a rotating gobo wheel with 7 gobos.

  • Page 11: Back View

    Furion P402 Profile 3.2. Back View Figure 3 Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F10 AL, 250 V) IP65-rated 5-pin DMX signal connector IN IP65-rated 5-pin DMX signal connector OUT...

  • Page 12: Product Specifications

    Furion P402 Profile 3.4. Product Specifications Model: Furion P402 Profile Source: Light source type LED  Light source quantity 1  Light source power 350 W Refresh rate 600 Hz Refresh rate (max.) 15 kHz Luminous flux (total) 11442 lm 74,6  7400 K Optical: Beam angle minimum (circular) 5,2°...
  • Page 13 Furion P402 Profile Dichroic color wheel 1 8 + open Gobo system Glass  Gobo wheel index & rotate Yes  Gobo wheel 1 7 + open Gobo size 20 mm Image diameter 15 mm Movement: 540° Tilt 260° Pan/Tilt resolution 16-bit  Electrical Specifications and Connections: Power supply 100–240 V AC 50/60 Hz ...

  • Page 14: Effect Wheels

    Furion P402 Profile 3.5. Effect Wheels 3.5.1. Color Wheel Figure 5 3.5.2. Rotating Gobo Wheel Figure 6 Product code: 41460...

  • Page 15: Animation Wheel

    Furion P402 Profile 3.5.3. Animation Wheel Figure 7 Product code: 41460...

  • Page 16: Dimensions

    Optional Accessories You can additionally purchase the following accessory: • • D7279 Case for 2x Furion S402 Spot or P402 Profile • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41460...

  • Page 17: Installation

    Furion P402 Profile Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 18 Furion P402 Profile Figure 10 Figure 11 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 19: Lock/Unlock The Device

    Furion P402 Profile 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (17) to the the right or slide the yoke locking mechanism (03) downwards.

  • Page 20: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 4 devices Furion P402 Profile • • at 200–240 V: 8 devices Furion P402 Profile Product code: 41460...

  • Page 21: Setup

    5.2. Stand-alone Setup When the Furion P402 Profile is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 22: Dmx Linking

    Furion P402 Profile Figure 13 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 23: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 52 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion P402 Profile correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 24: Ethernet Connection

    Furion P402 Profile 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 25: Art-Net/Sacn Linking

    Furion P402 Profile 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 26: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion P402 Profile supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 27: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 28: Display Lock

    Furion P402 Profile I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 29: Unlocking Without Password

    Furion P402 Profile 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 30: Menu Overview

    Furion P402 Profile 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7.1. DMX Address Address Setting 001–512 page 36) Screen Reverse AUTO Pan Reverse Tilt Reverse Pan Angle Tilt Angle Auto Pan Invert Backlight Timer...
  • Page 31 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 Manual IP Mode DHCP 000–255 Network Setup Universe 001–256 IP Address 002.243.075.222                 SubMask 255.000.000.000 Activate Lock Code                     Lock Code Enter Lock Code BL.O.P/T Move BL.O.Color Move BL.O.Gobo Move Profile Mode...
  • Page 32 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 RDM ID5 RDM ID6 Reset User Hours Pan/Tilt Iris/Prism Color/CMY Reset Function Gobo/Gobo Rotate Blade Frost/Animation Factory Settings Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 43) Control Mode (see 6.7.4.
  • Page 33 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 Gobo NO/1~Advance Num Gobo Rotate NO/1~Advance Num Gobo Rotate Fine NO/1~Advance Num Prism NO/1~Advance Num Prism Rotate NO/1~Advance Num Prism Rotate Fine NO/1~Advance Num Zoom NO/1~Advance Num Zoom Fine...
  • Page 34 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 Color 000–255 Cyan 000–255 Cyan Fine 000–255 Magenta 000–255 Magenta Fine 000–255 Yellow 000–255 Yellow Fine 000–255 Virtual Colorwheel 000–255 Gobo 000–255 Gobo Rotate 000–255 Gobo Rotate Fine 000–255 Prism 000–255...
  • Page 35 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 V2. XXXXXX Running Mode DMX Address Temperature Fixture Hours 00000 Fixture Info User Hours 00000 IP Address 002.243.075.222 SubMask 255.000.000.000 29B40E8XXXXX 34.29.8F.80.80.80 BASE FAN1 Speed 2000 DFAN2 Speed 2000...
  • Page 36 Furion P402 Profile Level 1 Level 2 Level 3 Level 4 Iris Macro 000–255 Focus 000–255 Focus Fine 000–255 Focus Auto 000–255 Frost 000–255 Animation 000–255 Virtual Animation 000–255 Blade1 In 000–255 Blade1 In Fine 000–255 Blade1 Angle 000–255 Blade1 Angle Fine 000–255...

  • Page 37: Main Menu Options

    Furion P402 Profile 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 38: Settings Menu

    Furion P402 Profile 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 24 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 39: Dimmer Curve

    Furion P402 Profile • • PWM Option (see 6.7.2.2. PWM Option) • • WDMX: Activate/deactivate Wireless DMX (ON/OFF) • • Wireless Unlink: Terminate the connection between the device and the transmitter (NO/YES) • • DMX Fail: Set the behavior of the device in case of a DMX failure. There are 2 options: OFF...

  • Page 40: Pwm Option

    Furion P402 Profile 6.7.2.2. PWM Option In this submenu you can adjust the PWM (pulse-width modulation) frequency of the LEDs. 01) Press the UP/DOWN buttons to select one of the 6 options: • • 600 Hz • • 1200 Hz •...

  • Page 41: Lock Code

    Furion P402 Profile 6.7.2.5. Lock Code In this submenu you can set a personal lock code or change the current lock code. 01) Press the UP/DOWN buttons to insert the master code: 6468: 02) Press the ENTER button to confirm.

  • Page 42: Profile Mode

    Furion P402 Profile 6.7.2.6. Profile Mode In this submenu you can adjust the way you control the framing system. 01) Press the UP/DOWN buttons to scroll through the 2 available options: • • A/B: Adjust the position of the frames. One DMX channel controls the position of corner A and one DMX channel controls the position of corner B •...

  • Page 43: Service Menu

    Furion P402 Profile 6.7.2.7. Service Menu In this submenu you can make fine adjustments of the home position of all moving parts or change the MAC address and the RDM identification number of the device. Note: If you forget your previously set personal lock code, you can still insert the master code: 6468 which overrides the personal code.

  • Page 44: Reset Function

    Furion P402 Profile 04) Once you have selected the desired option, press the ENTER button to confirm the selection. 05) Press the UP/DOWN buttons to adjust the values to change the home position of all moving parts, the MAC addresses and the RDM identification numbers of the device. The adjustment range is 000–255.

  • Page 45: User Personality

    Furion P402 Profile • • Control Mode: DMX, WDMX, Art-Net, sACN • • Personality: Basic (34 channels), Advance (52 channels), User (up to 52 channels) • • User Personality (see 6.7.4.1. User Personality) 02) Press the ENTER button to confirm the selection.

  • Page 46: Auto Test

    Furion P402 Profile 6.7.5.1. Auto Test In this submenu you can automatically run an auto test of the functions of the device. (If you have selected Auto Test in the previous menu and pressed the ENTER button) The device automatically runs an auto test of the functions of the device and the display shows: 6.7.5.2.

  • Page 47: Fixture Info

    Furion P402 Profile • • Fan Info (see 6.7.6.2. Fan Info) • • Error Info (see 6.7.6.3. Error Info) • • Channel Info (see 6.7.6.4. Channel Info) 02) Press the ENTER button to confirm the selection. 6.7.6.1. Fixture Info In this submenu you can view the currently installed firmware version, operation mode, DMX address and other parameters of the device.

  • Page 48: Error Info

    Furion P402 Profile 6.7.6.3. Error Info In this submenu you can view whether there are any system errors. If you have selected Error Info and there are no errors the display shows: Note: In case of an error message, discontinue the use of the device and contact your Highlite International dealer for more information.

  • Page 49: Dmx Channels

    Furion P402 Profile 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Advance Function Setting Default Highlight 34 CH 52 CH Value 000–255 0°–540° 000–255 Fine positioning Pan Fine 16-bit 000–255 0°–260° Tilt 000–255 Fine positioning Tilt Fine 16-bit 000–255 From fast to slow Pan/Tilt Speed 000–255 0–100 %...
  • Page 50 Furion P402 Profile Basic Advance Function Setting Default Highlight 34 CH 52 CH Value 000–255 Outward to inward Frame 3 Position 000–255 Fine positioning Frame 3 Position 16-bit 000–255 -40° to +40° Frame 3 Angle 000–255 Fine adjustment Frame 3 Angle 16-bit 000–255 Outward to inward...

  • Page 51: Basic (34 Channels), Advance (52 Channels)

    Furion P402 Profile 6.8.2. Basic (34 Channels), Advance (52 Channels) Basic Advance Function Value Setting Color Control Type 34 CH 52 CH 000–255 Pan adjustment 0°–540° Pan Fine 000–255 Pan adjustment, 16-bit Tilt 000–255 Tilt adjustment 0°–260° Tilt Fine 000–255 Tilt adjustment, 16-bit Pan/Tilt Speed 000–255 From fast to slow...
  • Page 52 Furion P402 Profile Basic Advance Function Value Setting Color Control Type 34 CH 52 CH Yellow 16-bit 000–255 Fine adjustment 000–009 No function CMY Macro 010–127 CMY preset proportional 128–255 CMY macro, fast to slow proportional 000–004 Open step 005–006 Gobo 1 (index) Astroids step 007–008 Gobo 2 (index) Psycho...
  • Page 53 Furion P402 Profile Basic Advance Function Value Setting Color Control Type 34 CH 52 CH gobo index selected - set by CH 13/19 No function 001–255 Gobo indexing from 0 to 360° proportional gobo rotating selected - set by CH...
  • Page 54 Furion P402 Profile Basic Advance Function Value Setting Color Control Type 34 CH 52 CH 067–077 12.5 m, auto focus gobo wheel 1 step 078–088 15 m, auto focus gobo wheel 1 step 089–099 17.5 m, auto focus gobo wheel 1 step 100–110 20–60 m, auto focus gobo wheel 1...
  • Page 55 Furion P402 Profile Basic Advance Function Value Setting Color Control Type 34 CH 52 CH 129–255 Index from 0° to 60° (left) proportional 000–003 No function 004–031 Square, large to small proportional 032–059 Horizontal rectangle, large to small proportional 060–087 Vertical rectangle, large to small proportional 088–115 Rhomboid, large to small...
  • Page 56 Furion P402 Profile Basic Advance Function Value Setting Color Control Type 34 CH 52 CH 180–199 Reserved 200–204 Reset P/T step 205–209 Reset Iris/Prism step 210–214 Reset Color/CMY step 215–219 Reset Gobo/Gobo rotate step 220–224 Reset Zoom/Focus step 225–229 Reserved 230–234 Reset Frost/Animation...

  • Page 57: Rdm Information

    Furion P402 Profile 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E8XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 58: Troubleshooting

    Furion P402 Profile Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 59: Error Messages

    Furion P402 Profile 7.1. Error Messages In case one of the error messages below appears on the error information screen, discontinue the use of the device and contact your local dealer. For more information, refer to Error Info (see 6.7.6.3. Error Info on page 47).

  • Page 60: Maintenance

    Furion P402 Profile Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 61: Corrective Maintenance

    Furion P402 Profile 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

  • Page 62: Draining Condensation Water

    8.3.2. Draining Condensation Water The Furion P402 Profile is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 63: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion P402 Profile, product code 41460, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
  • Page 64 Infinity is a brand of Highlite International B.V.
