- Page 1 HD-SDI 4x1 Switcher U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 4x1 HD-SDI Switcher is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 4x1 HD-SDI Switcher RMT4-IR Installation Dip Switch Guide RS-232 Interface Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the 4x1 HD-SDI Switcher. Your complete satisfaction is very important to us. Switches between four HD-SDI Sources to one HD-SDI display. The 4x1 HD-SDI Switcher is unique in its ability to connect one HD-SDI display to four HD-SDI sources. -
Page 5: Features
FEATURES Features • Use one display to access four sources • Eliminates unnecessary hardware while increasing effi ciency • Discrete IR remote (included) • Discrete RS232 switching Includes: (1) 4x1 HD-SDI Switcher (1) 5v Power Supply (1) RMt-4IR Remote Control (1) User's Manual... -
Page 6: Panel Descriptions

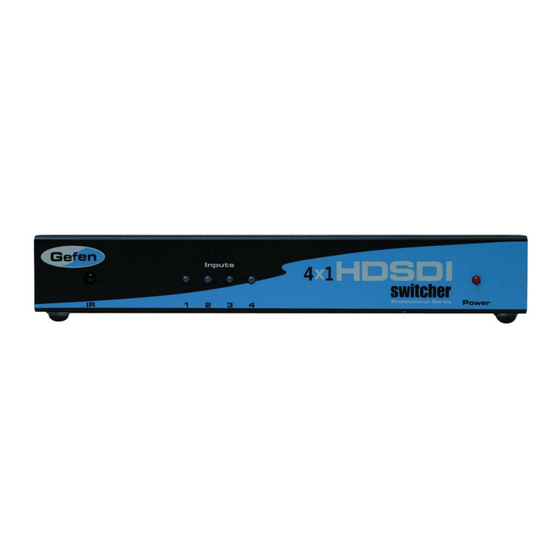

PANEL DESCRIPTIONS Front IR Eye Power LED Channel LED Indicator Indicator Back HDSDI Out 1-4 HDSDI Out RS-232 5V Power Input Supply Input... -
Page 7: Connecting And Operating The 4X1 Hd-Sdi Switcher
CONNECTING AND OPERATING THE 4x1 HD-SDI SWITCHER How to connect the HD-SDI 4x1 Switcher to your devices 1 Connect your HD-SDI inputs into one of the Inputs on the HD-SDI 4x1 Switcher. 2 Connect your display into output 1. 3 Connect the 5VDC power supply into the 4x1 HD-SDI Switcher. -
Page 8: Rmt4-Ir Installation
RMT4-IR INSTALLATION 1. Remove battery cover from the back of the RMT4-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Dip Switch Guide
The following are the 4 Infrared channels possible for both the RMT4-IR and the 4x1 HD-SDI Switcher. The dip switches on both the remote and the switcher itself must match in order to be operational. Channel 0: Channel 2: DIP SWITCH GUIDE Channel 1: Channel 3:... -
Page 10: Rs-232 Interface
ASCII RS-232 Settings Bits per second ... 19200 Data bits ... 8 Parity ... None Stop bits ...1 Flow Control ... None RS-232 INTERFACE Binary Table Corresponding Binary RMT4-IR Button 0011 0001 0011 0010 0011 0011 0011 0100... -
Page 11: Specifi Cations
SPECIFICATIONS Input/Output...SDI - SMPTE 259M-C (270Mbps Input/Output...HD-SDI - SMPTE 292M (1.485, 1.485/1.001 Gbps) Power Supply...5V DC Power Consumption...10 watts (max) Dimensions...7.5”W x 1.1”H x 3.5”D Shipping Weight...4 lbs. -
Page 12: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
