SmoothTalker BTEUX415 Quick Start Manual

Increase Coverage Increase Data
for Single Speeds up
M2M Device to 30 times
Made in
Canada
Fabriqué au
Canada
1-877-726-3444
Approved Equipment List
Smoothtalker approved accessories most be used with this booster to maintain
warranty.
ANTENNA CABLES
ACX100, ACX900
CBXmaXfe10,20,30,40,50,60
CBNmaNfe10,20,30,40,50,60
CBGmaGfe 10,20,30,40,50,60
ANTENNAS
SEM2, 11, 14, series
SEM2M, 11M, 14M, series
SEM2LGM, 11LGM, 14LGM, 26LGM series
SEM2LGML 11LGML, 14LGML, 26LGML series
SEM2TH, 11TH, 14TH, 26TH series
SEM2THL, 11THL, 14THL, 26THL series
SEMTHMM series
SEMTHPB series
SEMRP1X , SEMRP1XL
SRBL series
SEMD1 series
SEMDA2 series
SEMO series
SEMDP1 series
SEMDY series
SEMDYD series
5
Easy Install
Improve Modem
Poor Indoor Signal
Automatic power
stealth
control protects the
tech
®
Mobile Network
Smoothtalker.com
Gwelectronics.se

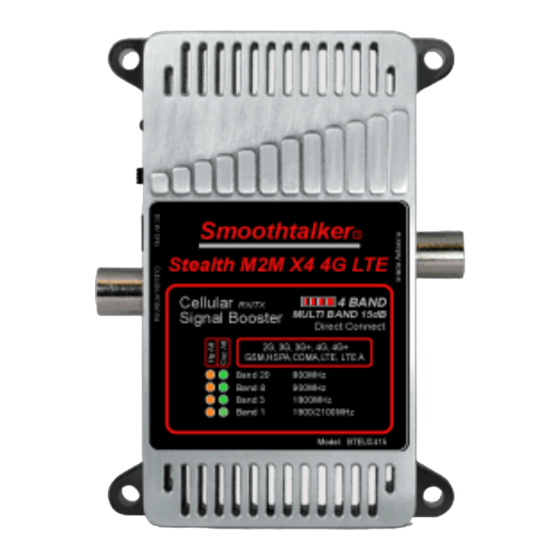

STEALTH M2M X4 4G LTE
Direct Connect Cellular Machine to Machine
Signal Booster Extreme Power
User Manual
Cellular
RX/TX 15dB 4 BAND
Signal Booster
MULTI BAND 15dB
Machine to Machine
DIRECT CONNECT
Extreme Power
2G, 3G, 3G+, 4G, 4G+
GSM,HSPA,CDMA,LTE, LTE A
Band 20 800MHz
Band 8 900MHz
Band 3 1800MHz
Band 1 2100MHz
Installation
1) This Direct Connect M2M Booster is designed to be placed between the cellular
device and it's outside antenna. Make all connections as in Fig. 1 & 2 on Pg.1 or
Fig. 3 on Pg. 4.
2) Placement: Place the outside antenna in the middle of the vehicle roof.
If the vehicle has a sunroof please place the antenna on the roof towards the back
window. Place the coupling holder in desired location.
Connect the booster as shown in Fig. 2 on Pg.1.
Important: Use only the power supply included with the booster. Connecting any
other power supply at any time will result in damage to the booster and will void
the warranty. Do not turn on the power switch until ALL cables have been
screwed or plugged into the booster or you can cause damage to the booster.
Stealth M2M X4 Parts Included
(Power supply and antenna may vary depending on Kit purchased)
4 BAND
MULTI BAND
15dB
BTEUX415
stealth
tech
®
POWER 12V DC CLA or 12V DC FUSED
SUPPLY or 220V AC/DC
Smoothtalker.com
2
