SmoothTalker BTEUX415 User Manual

Declaration of Conformity

In accordance with EU Directives and Regulations
Mobile Communications Inc.
230 Earl Stewart Dr. Aurora, ON. Canada L4G6V8,
as the manufacturer hereby declares under our sole responsibility that the, Product(s):
Mobile Signal Enhancer, Model name/s: Smoothtalker :
BTEUX430 Mobile CX4, BTEUX415 Stealth M2M X4
Is/are in conformity with the requirements of the RE Directive 2014/53/EU:
The radio equipment meets the following essential requirements
Article 3.1 a): Health and Safety Conform
Article 3.1 b): Electromagnetic Compatibility Conform
Article 3.2: E ective and E cient Use of Radio Spectrum Conform
Radio EN 301 908-1 V11.1.1, EN 301 908-15 V11.1.2, EN 303 609 V12.5.1
EN 301 908-11 V11.1.2
Article 3.2
EMC EN 301 489-1 V2.2.0, EN 301 489-50 V2.2.0
Article 3.1(b)
Safety EN 62368-1: 2014
Article 3.1(a)
Health RF Exposure EN 62311: 2008
Article 3.1(a)
An EU Type Examination Certi cate for this Product was issued in accordance with Annex III
(Module B) of the 2014/53/EU Radio Equipment Directive by Bay Area Compliance
Laboratories Corp. (2014/53/EU Radio Equipment Directive Noti ed Body Identi cation
Number 1313)
This product has been tested and certi ed CE, RoHS.
For Inquires please contact Us
info@smoothtalker.com

Approved Equipment List

Smoothtalker approved accessories must be used with this ampli er to maintain
warranty.
ANTENNA CABLES
ACX100, ACX900
CBXmaXfe10,20,30,40,50,60
CBNmaNfe10,20,30,40,50,60
CBGmaGfe 10,20,30,40,50,60
ANTENNAS
SEM2, 11, 14, series
SEM2M, 11M, 14M, series
SEM2LGM, 11LGM, 14LGM, 26LGM series
SEM2LGML 11LGML, 14LGML, 26LGML series
SEM2TH, 11TH, 14TH, 26TH series
SEM2THL, 11THL, 14THL, 26THL series
SEMTHMM series
SEMTHPB series
SEMRP1X , SEMRP1XL
SRBL series
SEMD1 series
SEMDA2 series
SEMO series
SEMDP1 series
SEMDY series
SEMDYD series
5
stealth
tech
®
Automatic power
control protects the
Mobile Network
Smoothtalker.com

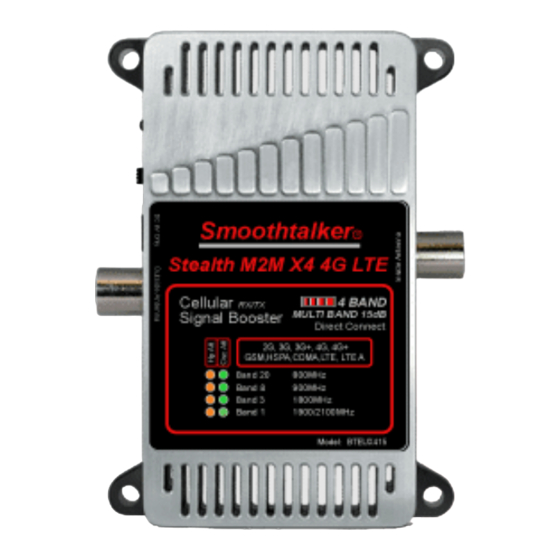

STEALTH M2M X4 4G LTE
Direct Connect Machine to Machine
Signal amplifier Extreme Power
User Manual
Mobile
RX/TX 15dB 4 BAND
Signal Amplifier
MULTI BAND 15dB
Machine to Machine
DIRECT CONNECT
Extreme Power
2G, 3G, 3G+, 4G, 4G+
GSM,HSPA,CDMA,LTE, LTE A
Band 20 800MHz
Band 8 900MHz
Band 3 1800MHz
Band 1 2100MHz

Installation

1) This Direct Connect M2M ampli er is designed to be placed between the Mobile
device and it's outside antenna. Make all connections as in Fig. 1 & 2 on Pg.1 or
Fig. 3 on Pg. 4.
2) Placement: Place the outside antenna in the middle of the vehicle roof.
If the vehicle has a sunroof please place the antenna on the roof towards the back
window. Place the coupling holder in desired location.
Connect the ampli er as shown in Fig. 2 on Pg.1.
Important: Use only the power supply included with the ampli er. Connecting any
other power supply at any time will result in damage to the ampli er and will void
the warranty. Do not turn on the power switch until ALL cables have been
screwed or plugged into the ampli er or you can cause damage to the ampli er.
Stealth M2M X4 Parts Included
(Power supply and antenna may vary depending on Kit purchased)
4 BAND
MULTI BAND
15dB
BTEUX415
stealth
tech
®
POWER
100-240V AC/DC
SUPPLY
Smoothtalker.com
2
