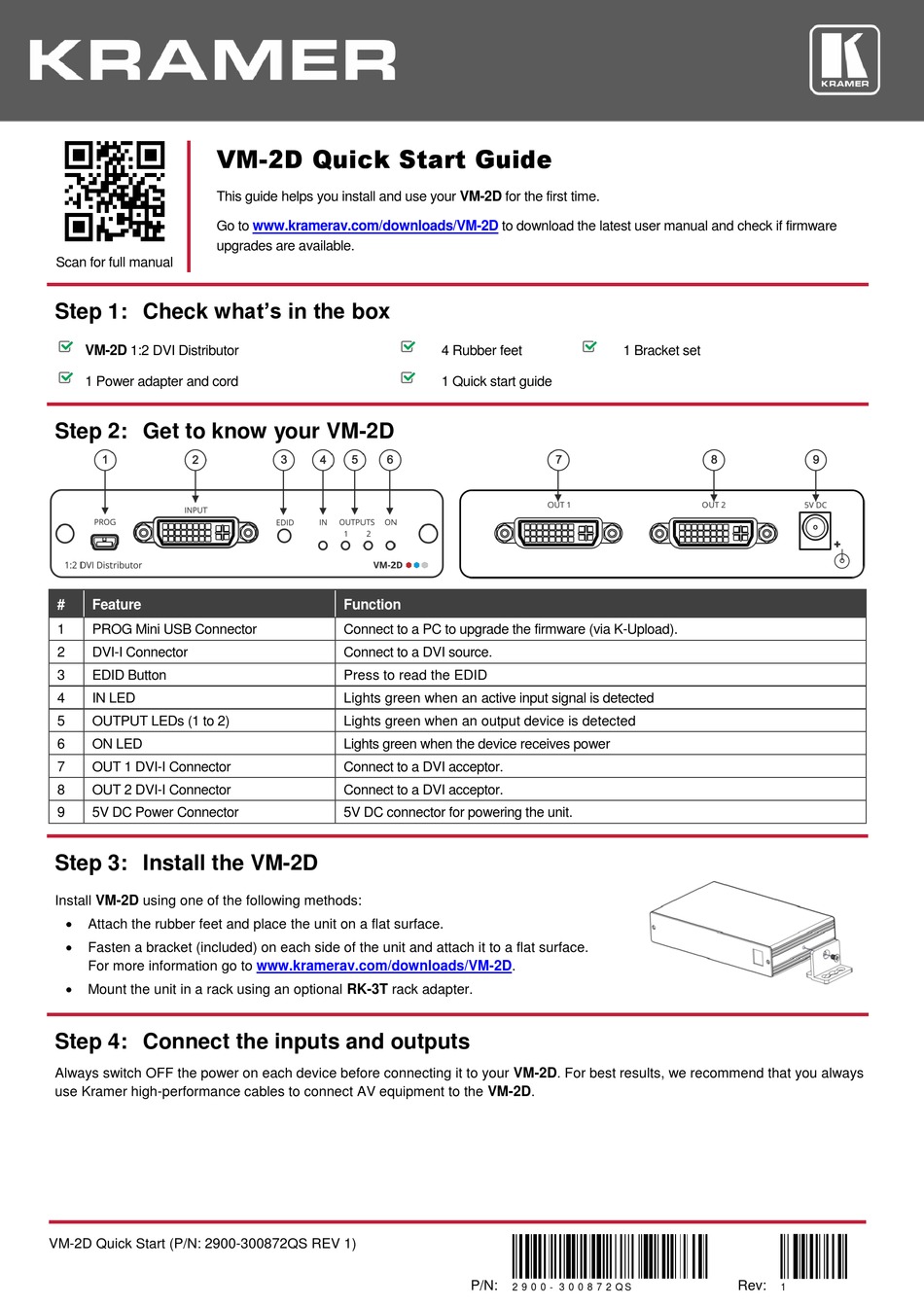

Kramer VM-2D Quick Start Manual

VM-2D Quick Start Guide
This guide helps you install and use your VM-2D for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

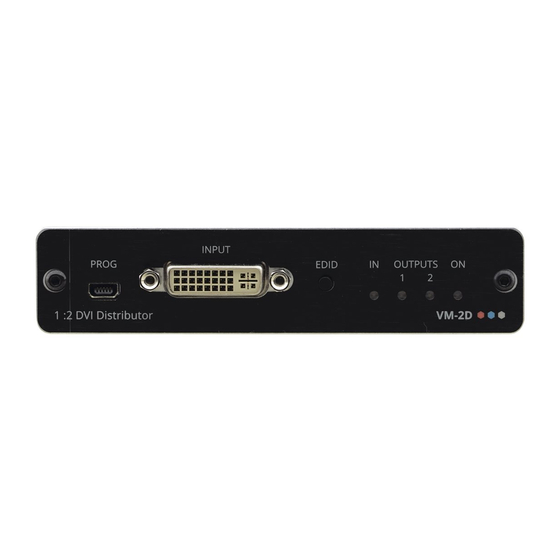

VM-2D 1:2 DVI Distributor
1 Power adapter and cord

Step 2: Get to know your VM-2D

# Feature
1 PROG Mini USB Connector
2 DVI-I Connector
3 EDID Button
4 IN LED
5 OUTPUT LEDs (1 to 2)
6 ON LED
7 OUT 1 DVI-I Connector
8 OUT 2 DVI-I Connector
9 5V DC Power Connector

Step 3: Install the VM-2D

Install VM-2D using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/VM-2D.

Mount the unit in a rack using an optional RK-3T rack adapter.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-2D. For best results, we recommend that you always
use Kramer high-performance cables to connect AV equipment to the VM-2D.
VM-2D Quick Start (P/N: 2900-300872QS REV 1)
www.kramerav.com/downloads/VM-2D
Function
Connect to a PC to upgrade the firmware (via K-Upload).
Connect to a DVI source.
Press to read the EDID
Lights green when an active input signal is detected
Lights green when an output device is detected
Lights green when the device receives power
Connect to a DVI acceptor.
Connect to a DVI acceptor.
5V DC connector for powering the unit.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N:
2 9 0 0 - 3 0 0 8 7 2 Q S
1 Bracket set
Rev:
1
