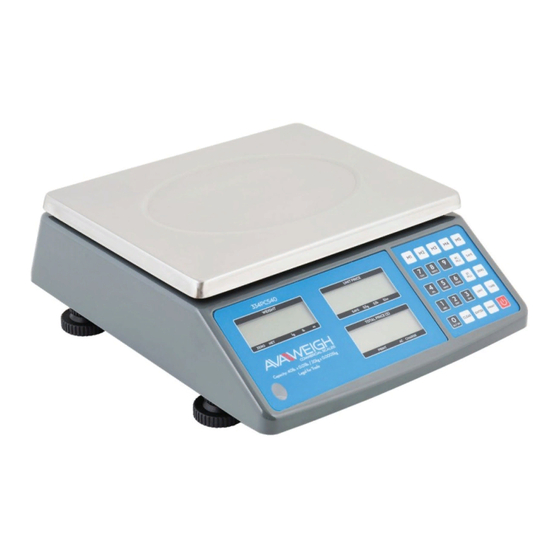

- Page 1 9/2020 USER MANUAL Digital Price Computing Scales Legal for Trade 334PCS15 334PCS40 334PCS40T 334PCS60 334PCS60T 15 lb. 40 lb. 40 lb. w/ Tower 60 lb. 60 lb. w/ Tower...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General & Safety Information ..................1 ........................Unpacking & Setup ......................• Packing List ..................................• Assembly ....................................Display & Keypad ......................• Faceplate (334PCS40) ..............................• Faceplate (334PCS40T) .............................. • Keypad Functions ................................•... - Page 3 SPECIFICATIONS 334PCS40 334PCS40T 334PCS15 334PCS60 334PCS60T LB unit: 40lb x 0.01lb LB unit: 40lb x 0.01lb LB Unit: 15lb x 0.05lb LB Unit: 60lb x 0.02lb LB Unit: 60lb x 0.02lb OZ Unit: 960oz x .5oz MAX CAPACITY OZ unit: 640oz x 0.2oz OZ unit: 640oz x 0.2oz...
-
Page 4: Unpacking & Setup
UNPACKING & SETUP 1. Take the scale out of the box and place it on a firm, level surface. Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat, or direct sunlight. 2. Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel). -
Page 5: Display & Keypad
DISPLAYS 334PCS40 334PCS40 334PCS40 Front Display WEIGHT UNIT PRICE WEIGHT UNIT PRIC 334PCS40 SAVE WXYZ WEIGHT UNIT PRICE ZERO SAVE $/kg $/lb $/oz ZERO SAVE $/kg ZERO PQRS SAVE TOTAL PRICE ($) TOTAL PRICE WXYZ $/kg $/lb $/oz ZERO SAVE UNIT TARE Capacity: 40lb. -
Page 6: Keypad Functions
WEIGHT KEYPADS UNIT PRICE 334PCS40 $/kg $/lb $/oz ZERO SAVE TOTAL PRICE ($) Capacity: 40lb. x 0.01lb. / 20kg x 0.005kg Legal for Trade PRINT AC CHARGE SAVE WXYZ ZERO PQRS UNIT TARE CLEAR ENTER PRINT ALT GR 334PCS40T 334PCS40T SAVE TOTAL PRICE ($) WXYZ... -
Page 7: Character Display Key
DISPLAY CHARACTERS SYMBOL DIGIT SYMBOL DIGIT SYMBOL DIGIT SYMBOL DIGIT Â Æ Ç È É Ê Ë Î Ï Ô Ù Û À Ü... -
Page 8: Operation & Settings
OPERATIONS & SETTINGS NORMAL WEIGHING MODE 1. Place the scale on a flat, stable surface. Level the scale using the leveling bubble at the lower left side of the display. 2. With the weighing platter empty, turn on power switch (located underneath on the right-hand side of the scale). - Page 9 SAVE FUNCTION 1. Under non-save mode, tare and unit price will be cleared automatically Press SAVE key to enter save mode. 2. Under save mode, tare and unit price will not be cleared automatically; Press SAVE key to exit save mode, if the gross weight is 0, to clear tare weight and unit price. PRINT FUNCTION In normal weighing mode, the zero function can be operated when the scale reading is stable (the weighing unit light is dim).
- Page 10 INPUT THE UNIT PRICE DIRECTLY 1. Use numerical key to enter unit price (range: 0000.00~9999.99) 2. Press ENTER key within 3s to confirm the unit price 3. Press CLEAR key to remove the input number 4. Put the weighing objects on the scale, the WEIGHT window will show its weight and TOTAL PRICE window will show it total value.
- Page 11 RECALL DIRECT PLU 1. Recall the stored direct unit price by pressing M1-MXX key, the recalled unit price will be displayed in UNIT PRICE window. The TOTAL PRICE window will display the first six characters of the item name, followed by the actual total price. RECALL INDIRECT PLU 1.
- Page 12 DETAILS ABOUT RS232 COMMUNICATION 1. Under the normal working mode, press and hold ON/OFF key and 4 key at the same time until the WEIGHT window shows “SETUP” . Under this mode, you can set the RS232 baud rate, data format and communication format.
- Page 13 8. Then, the WEIGHT window will display “USb.dFt” (data format), the TOTAL PRICE window will display data format xxx. Use 1, 2, 3 key to select data format: 1—8N1 8 bits data, no odd or even , 1 start bit, 1stop bit 2—7O1 7 bits data, 1 even , 1 start bit, 1stop bit 3—7E1 7 bits data, 1 odd, 1 start bit, 1stop bit, Press ENTER key to confirm the input and go to the next step, or use ON/OFF key to exit this mode.
- Page 14 9. Then, the UNIT PRICE window shows “Urt.CFt” (communication format), the TOTAL PRICE window shows communication format xxx. Use the numerical keys 0, 2 to select the communication format: 0—Non communication 2—When the scale becomes stable, the data will be output after pressing PRINT key, the format when “232.out”...
- Page 15 DATE & TIME SETTING 1. Under the normal working mode, press and hold 5 and ON/OFF key for more than 3s to enter into this mode. In this mode, you can set the system date and time. Note: the date and time will be lost after the scale is powered off if the rechargeable battery is not installed. 2.
- Page 16 OS-2130D ORIGIN SETTING 1. Under the normal working mode, press and hold 8 and ON/OFF key for more than 3s to enter this mode. In this mode, you can set the origin point (OS-2130D). 2. The WEIGHT window displays “SETUP”, the UNIT PRICE window displays “ORG.X”(Origin.X), and the TOTAL PRICE window displays the X direction offset number.
- Page 17 5. Choosing “Download” in “Serial” menu or F8, the scale will display “DNLOAD”, the status bar will display the present download information, if it displays “downloading business name”, it means it’s downloading the store name. If it displays “Downloading Mxx”, it means it’s downloading the information of M1~M9 (direct unit price).
-
Page 18: Calibration
CALIBRATION The calibration switch is located underneath the scale base. When the switch is set towards the USB or RS232 interface, it means CAL switch is on. When the switch is set towards the power switch, it means the CAL switch is off. 1. -
Page 19: Display Symbol Meanings
DISPLAY SYMBOL MEANINGS Weight signal is too large No proper data can be displayed Weight signal is too small Zero point is over the setting range Zero point is below the setting range Error in unit key operation The setting parameter(s) is not in normal range There is an error in calibration ADC is over max. -
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Check that the batteries are Batteries loaded incorrectly, correctly loaded, if correct, replace or adapter/plug loose/not batteries. Check power supply connected connections. No Display Damage to electrical Replace with new PCB components Key button malfunction Replace with new Key button Power-On Problem... -
Page 21: Battery Charging
PROBLEM POSSIBLE CAUSE SOLUTION Different Areas of the Platform Give Platform or feet are not level; Ensure the platform is level and Different Weight Load cell broken; that all four feet are on a solid, Readings Objects between Load Cell & level surface;...
