Summary of Contents for AVA WEIGH 334MSD600

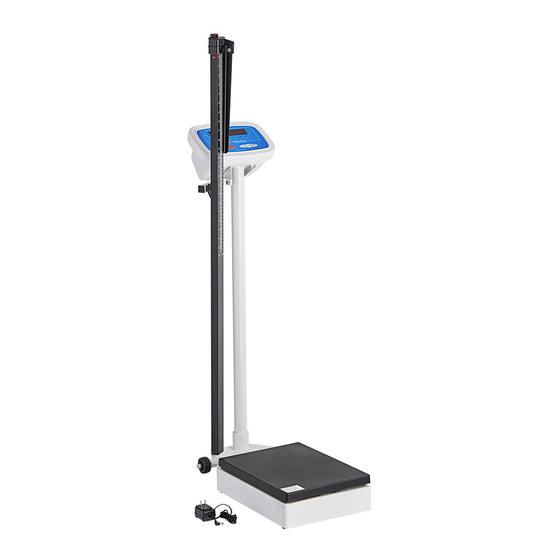

- Page 1 05/2020 USER MANUAL Digital BMI Physician Scale w/ Height Rod 334MSD600 600 lb.
-
Page 2: Table Of Contents
TABLE OF CONTENTS General & Safety Information .................1 Specifications......................2 Unpacking & Setup ....................3 • Packing List ..................................3 • Tools Required ..................................3 • Installation Procedure ..............................3 Display & Keypad ....................... 5 • Indicator Display ................................5 • Controls & Functions ..............................5 •... -
Page 3: Specifications
SPECIFICATIONS 334MSD600 MAXIMUM CAPACITY 600 lb. / 300kg MINIMUM WEIGHT 2 lb. / 1 kg SCALE DIVISION 0.1 lb. / 0.05kg WEIGHING UNITS lb. / kg 24" - 83" (60cm - 212cm) HEIGHT RANGE DIVISION OF HEIGHT MEASUREMENT Entry via keypad (0.5" / 1 cm) -
Page 4: Unpacking & Setup
UNPACKING & SETUP PACKING LIST • Indicator • Manual • 12V 500mA Adapter • Height Rod • Pillar TOOLS REQUIRED • Philips Head Screwdriver (Not Supplied) • Small Hex Allen Wrench (Included) • Large Hex Allen Wrench (Included) INSTALLATION PROCEDURE 1. - Page 5 8. Locate the load cell cable (13) ready for connection. 9. Place the indicator cable (4) and the load cell cable (13) together near the hole on the base (16). 10. Plug the two connectors (15) together. 11. Position the connector inside the base (16).
-
Page 6: Display & Keypad
600lb x 2lb / 300kg x 0.1kg Zero Hold HOLD TARE UNIT PRINT 334MSD600 CONTROLS & FUNCTIONS FUNCTIONS To turn the scale on or off. POWER To zero the scale if the display drifts from zero. To tare the scale, if necessary. -
Page 7: Function Keys
DISPLAY CHARACTERS SYMBOL DIGIT SYMBOL DIGIT SYMBOL DIGIT... -
Page 8: Operation & Settings
OPERATIONS & SETTINGS WEIGHING 1. Position the Physician Scale on an even floor and press the ON/OFF key. 2. The instrument performs a self-test after which it is ready for operation. 3. Press the ON/OFF key and the machine switches off. 4. -
Page 9: Calibration
CALIBRATION Before calibrating the scale, you should ensure that you have a suitable known weight for calibration. 1. When in normal weighing mode with the scale at zero press and hold down TARE and ON/OFF keys to enter the calibration mode. 2. -
Page 10: User Parameters
USER PARAMETERS This indicator has 4 parameter settings that can be selected. 1. When the scale is in normal weighing mode, press and hold down the ON/OFF key and the UNIT key for 3 seconds until ‘Setup’ is shown on the display. 2. - Page 11 1. RS-232 connection between the Scale and the Host: Female Pin 3 Pin 2 Pin 5 NOTE: Pins 1,4,6,7,8 & 9 are not connected. NOTE: The RS232 function will not operate if PH has been set to 0 or 2. (See User Parameters on Page 7.) 2.
- Page 12 5. Commands and Response Command: W<CR> (57h 0dh) Response: <LF>^^^^^^u1u2<CR><LF>H1H2H3<CR><ETX>---over capacity <LF>______u1u2<CR><LF> H1H2H3 <CR><ETX>---under capacity <LF>---------u1u2<CR><LF> H1H2H3<CR><ETX>---zero-point error < L F > < p > w 1 w 2 w 3 w 4 w 5 w 6 < d p > w 7 u 1 u 2 < C R > < L F > H 1 H 2 H 3 < C R > <ETX>...
-
Page 13: Error Messages
ERROR MESSAGES ERROR CAUSE Zero Point is over the setting range Zero Point is below the setting range ADC is over maximum range ADC is below minimum range EEPROM Error Calibration Error The capacity will be displayed Battery voltage or input power is below 5.6V The capacity has been exceeded by the person standing on the scale...
