Summary of Contents for AVA WEIGH 334PCSP30

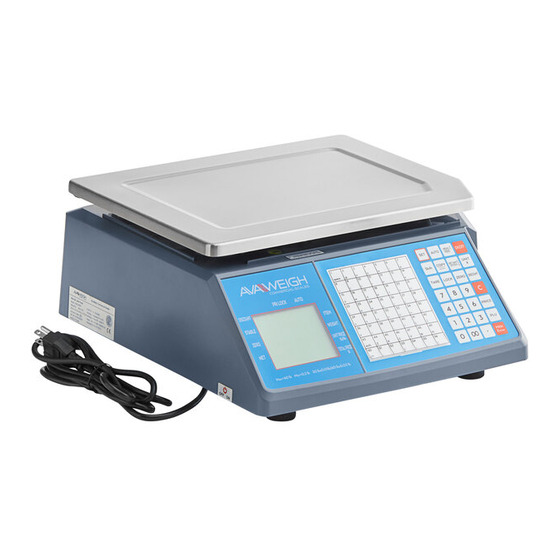

- Page 1 01/2022 USER MANUAL Digital WiFi Price Computing Scales with Thermal Label Printer 334PCSP30 334PCSP30T 334PCSP60 334PCSP60T 30 lb. 30 lb. w/ Tower 60 lb. 60 lb. w/ Tower...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General & Safety Information .................1 Specifications......................2 • Features Summary ................................2 Installation ........................3 • Installing the Scale ................................3 • Installing the Thermal Label Paper .........................4 • Label Paper ..................................5 • Keyboard .....................................6 Overall Appearance ....................7 Operation & Settings ....................7 •... -
Page 3: Specifications
SPECIFICATIONS 334PCSP30/30T 334PCSP60/60T MIN WEIGHT 100g MAX WEIGHT 30 lb. 60 lb. 15 lb. x 0.005 lb. 30 lb. x 0.01 lb. WEIGHT RANGE 30 lb. x 0.01 lb. 60 lb. x 0.02 lb. ACCURACY GRADE NTEP Class III OIML R76/2006-A-NL1-18.12... -
Page 4: Installation
INSTALLATION INSTALLING THE SCALE 1. Unbox the machine and components FIG. 1 FIG. 2 2. Place the scale on a flat surface 3. For the 334PCSP30T/ 334PCS60T models, locate the tower indicator and identify the cable that runs down the length of the pole (Fig. -
Page 5: Installing The Thermal Label Paper
INSTALLING THE THERMAL LABEL PAPER 1. Locate the printer panel on the right side of FIG. 6 FIG. 7 the scale if you are looking at the face of the scale. (Fig. 6) 2. Pull down on the top of the panel to expose the printer. -
Page 6: Label Paper
9. Once the label has been pulled through the FIG. 12 outside of the printer, take the end of the label roll and run the labels on the left side and out the right side of the final black spool in the middle of the printer. -
Page 7: Keyboard
Press the [Menu Feed ↑] button to adjust the label position upward. • Hold the [↑] button to align the paper. • Press the [SET AMT ↓] button to adjust the label position downward. 334PCSP30 & 334PCSP60T Keyboard 334PCSP30 & 334PCSP60 Keyboard... -
Page 8: Overall Appearance
1. Main Unit 2. Tray 3. Display Group • Liquid Crystal Display 334PCSP30T & 334PCSP60T • Display Bar • (4) Screws 4. Thermal Label Paper 5. (1) Fuse 6. User Manual 7. Serial Cable 8. Power Cable 334PCSP30 & 334PCSP60... -
Page 9: Weighing & Pricing
OPERATIONS & SETTINGS WEIGHING & PRICING There are three methods for weighing and pricing. If the PLU information has been downloaded from the PC or edited in the scale in advance, follow Method 1 and Method 2. If not, take Method 3. -
Page 10: Tare Operation
TARE OPERATION The operation is suitable for the goods that need to be packed, ex. egg, beans etc. There are two methods used for the following situation: 1. Packages and goods separated and 2. Packages and goods non-separated. Method 1: Suitable for packages and separated goods Example: Selling 1 box of apples, suppose the apple's unit price is $6/lb., the hotkey is 05, and the box's weight is 1 lb. -
Page 11: Choosing Unit Of Weight
CHOOSING UNIT OF WEIGHT Method: Press and hold the button [UNIT] for 1 second (listen for a beep). Then, choose new charge unit. Ex. choose "g" as unit. Wait for 2 seconds for the new unit of weight to be confirmed. CHARGING BY PIECE NOTE: For the following operation, you need to open the "charging by piece"... -
Page 12: Automatic Fast Packaging
AUTOMATIC FAST PACKAGING This function can be applied to high-volume labels of similar but different weights for a product. Procedure: Activate the [AUTO PRN] and [PRI LOCK] function. Choose a single product or enter a unit price. Put the goods on the scale tray one by one, and the scale will start to print label automatically. -
Page 13: Wireless Scale Setting
WIRELESS SCALE SETTING NETWORK CONNECTION MODE ETHERNET/WIRED WIRELESS CONNECTION CONNECTION WIFI ROUTER COMPUTER LABEL SCALE ROUTER SET UP 1. Set the SSID name of the router (No more than 15 characters) 2. Set the type of router’s authentication, encryption algorithm, password, Encryption type set as: WPA2-PSK Encryption algorithm set as: AES Password: No more than 15 characters... -
Page 14: Function Setting
FUNCTION SETTING This function can be locked with a password. Password can be set and reset through PC. INPUT SETTINGS OF SINGLE ITEM Step One: Press button [PLU] until screen shows "single item edit" to enter the edit mode Step Two: Type 6 digits of fresh commodity code and press button [PRN/ENTER] to confirm. When the screen shows "Product Name", enter the product name of single item. - Page 15 SYSTEM SET UP That operation can be lock by password. The password is set in PC and can be changed at anytime. 1. Press [set] button and hold on 3s to enter system setting status. 2. Press [↑] or [↓] or direct number key accordingly to select item. 3.
- Page 16 • [↑] / [↓] Running account overflowing alarm: Set alarm when the running account overflows • [↑] / [↓] Summation printing: print summation label, total amount/total quantity/quantity of total label(clicking twice (set) to set) • [↑] / [↓] Sum all quantity of single goods’ label: print all information of all sales goods((clicking twice (set) to set)) •...
- Page 17 LOCK SETTING, PLU, DISCOUNT, PRICE, and TARE functions can be locked via pass code. Password of each function is independent, which can be set via pc software then downloaded to each scale, and it can be changed at any time. For more details please check the security item in the function setting II which is in the software operating instructions.
-
Page 18: Troubleshooting
TROUBLESHOOTING SCALES CRASH Boot up without any response Reasons: a. Bad contact between the power plug and socket. b. The power cord is disconnected c. Fuse blown d. The power board is damaged e. Bad motherboard Solutions: Use millimeter to check them one by one, use method of exclusion to find the solution. Boot up without any sound, No display, backlight. - Page 19 d. The photoelectric module behind the printer is bad Solutions: a. Adjust the settings in following key order on the scale [SETTING] → Enter the system setting → Press hotkey [ S ] → Enter the select label type (0: Label, 1: Receipt, 2: Label, without recycle paper roll) → Press [PRN/ENTER] It’s also available to adjust software on computer.
- Page 20 Weird characters show on label or character can't be printed out (Including Chinese and English) Reasons: a. Haven't downloaded fonts or single-byte character b. Font conflict Solutions: a. Re-download fonts (including single-byte and double-byte character) b. Re-select single-byte and double-byte fonts by files/option/label scale fonts, then download Chinese and English fonts KEY ISSUES Keys are ringing but the display is normal...
- Page 21 Zero point instability Reasons: a. Environmental impact, such as vibration, wind, or strong magnetic interference b. The weighing electric circuit is damp c. The wind resistance function has not opened d. The leveling mat is not level Solutions: a. Remove the interference factors b.
- Page 22 ERROR CODE CODE ERROR CODE ERROR Er-01 Er-09 Total amount over Salesman error Er-02 Label is too high Er-10 Close orange handle Er-03 Nothing to copy Er-11 No PLU / LF code Er-04 Er-12 Gap error Change weight Er-05 Er-13 Weight error No paper Er-06...
-
Page 23: Acceleration Of Gravity
ACCELERATION OF GRAVITY COUNTRY CITY G (m/sec COUNTRY CITY G (m/sec 9.800 9.816 Greece Athens Scotland Glasgow South Africa Cape Town 9.796 Spain Madrid 9.800 Netherlands Amsterdam 9.813 Singapore Singapore 9.781 Norway Oslo 9.815 Argentina Buenos Aires 9.797 United New Zealand Auckland 9.799 London... -
Page 24: Warranty
AVAWEIGH LIMITED WARRANTY AvaWeigh warrants its equipment to be free from defects IMPLIED WARRANTIES, INCLUDING THE IMPLIED in material and workmanship for a period of 1 year. This is WARRANTIES OF MERCHANTABILITY AND OF FITNESS the sole and exclusive warranty made by AvaWeigh covering FOR A PARTICULAR PURPOSE.
