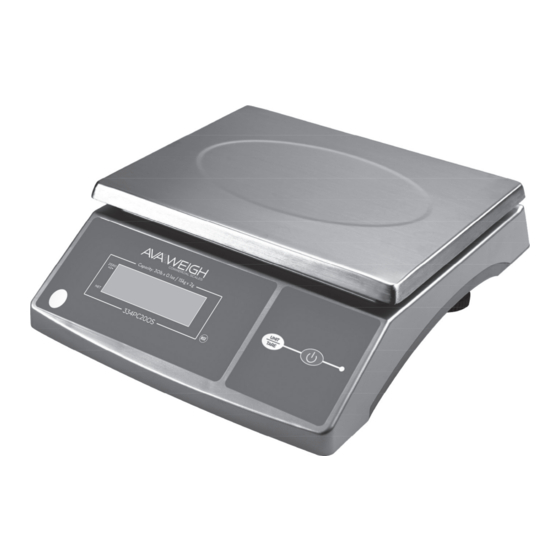

- Page 1 06/2020 USER MANUAL Digital Portion Scales with Oversized Platform 334PC10OS 334PC20OS 334PC40OS 334PC60OS 10 lb. 20 lb. 40 lb. 60 lb.
-
Page 2: Table Of Contents
TABLE OF CONTENTS General & Safety Information .................1 Specifications......................2 Unpacking & Setup ....................3 • Packing List ..................................3 • Unpacking & Setup .................................3 Display & Keypad ....................... 4 • Display Characters .................................4 • Control Panel ..................................5 • Function Keys ..................................5 Operation &... -
Page 3: Specifications
SPECIFICATIONS 334PC10OS 334PC20OS 334PC40OS 334PC60OS 10 lb. / 5kg 20 lb. / 10kg 40 lb. / 20kg 60 lb. / 30kg MAX CAPACITY INCREMENTS 0.002 lb. / 1g / 0.05oz. 0.005 lb. / 2g / 0.1oz. 0.01 lb. / 5g / 0.2oz. -
Page 4: Unpacking & Setup
UNPACKING & SETUP PACKING LIST • Scale • Manual • C9V 600mA Power Adapter • (4) AA Batteries UNPACKING & SETUP 1. Remove the scale from the box and place it on a firm, level surface. Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. -
Page 5: Display & Keypad
DISPLAY CHARACTERS SYMBOL DIGIT SYMBOL DIGIT SYMBOL DIGIT... -
Page 6: Control Panel
CONTROL PANEL Leveling Bubble Display Power Key Unit/Tare Key FUNCTION KEYS DEFINITION FUNCTION Power on the scale Short Press: (when off) (when on) Sets display to zero Power off the scale Long Press: (when on) Tare a weight Short Press Switch between unit of measurement Long Press... -
Page 7: Operation & Settings
OPERATIONS & SETTINGS POWER ON / POWER OFF 1. Place the scale on a flat, stable surface. Level the scale using the leveling bubble at the lower left side of the display. 2. With the weighing platter empty, press the ON/OFF/ZERO key to power on the scale. The self-check will run, show the version number “... - Page 8 CALIBRATION 1. Prepare standard weights, and make the scale with no load. 2. When the scale is off, press and hold down TARE/UNIT button, and then press ON/OFF/ZERO button at the same time until appears. Release the two buttons. 3. Be sure no weight on the scale, and press ON/OFF/ZERO button, 0 in CAL-0 will be flashed. is displayed, press and hold TARE/UNIT button to choose the unit (kg or lb) 4.
-
Page 9: Troubleshooting
DISPLAY SYMBOL MEANING Power-on zero-point is over (calibration zero-point) +20%FS) when scale is turned on, or the reading weight is over (power-on zero-point) +5%FS when pressing ZERO button Power-on zero-point is below (calibration zero-point) -20%FS) when scale is turned on, or the reading weight is + (power-on zero-point) -5%FS when pressing ZERO button The current weight is over 100% FS+9d Zero point at calibration...
