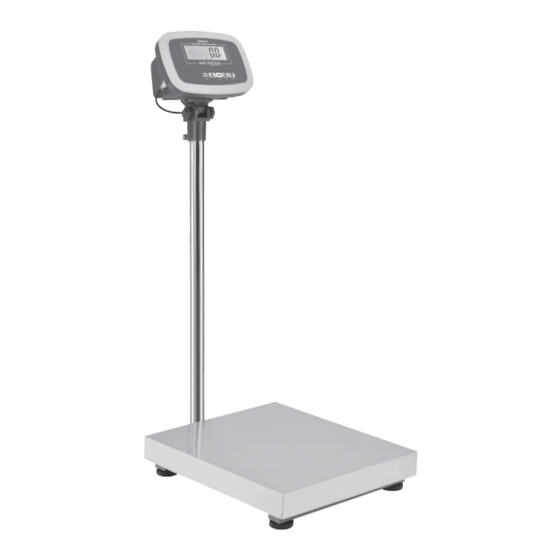

- Page 1 05/2020 USER MANUAL Digital Receiving Bench Scale w/ Tower Display 334BS150T 334BS330T 150 lb. 330 lb.
-
Page 2: Table Of Contents
TABLE OF CONTENTS General & Safety Information .................1 Specifications......................2 Unpacking & Setup ....................3 Display & Keypad ....................... 4 Operation & Settings ....................7 User Parameters ......................9 RS232/USB Communications ................11 Troubleshooting ...................... 14 GENERAL & SAFETY INFORMATION • Risk of electric shock: disconnect all power sources before making cable connections to the floor scale platform or indicator. -
Page 3: Specifications
SPECIFICATIONS 334FS150T 334FS330T MAX CAPACITY 150 lb. / 60kg 330 lb. / 150kg MIN CAPACITY 1 lb. / 0.5kg 2 lb. / 1kg SCALE DIVISION 0.05 lb. / 0.02kg 0.1 lb. / 0.05kg PLATFORM SIZE 11.81” x 15.75” (300 x 400mm) TOWER HEIGHT 26”... -
Page 4: Unpacking & Setup
UNPACKING & SETUP TOOLS REQUIRED Fig. 1 • Phillips Head Screwdriver • Allen Wrench (Included) UNPACKING & ASSEMBLY Fig. 2 1. Take all the contents out of the box. 2. Remove the (4) inner hexangular set screws on the rear side of the shorter post. -
Page 5: Display & Keypad
DISPLAY CHARACTERS SYMBOL DIGIT SYMBOL DIGIT SYMBOL DIGIT... - Page 6 INDICATOR DISPLAY 334BS150T Capacity: 150lb x 0.05lb / 60kg x 0.02kg ZERO UNIT PRINT TARE ON OFF TOTAL COUNT HOLD • Kg - Indicates when the scale is weighing in Kilograms. • Lb - Indicates when the scale is weighing in Pounds.
- Page 7 FUNCTION KEYS NOTE: Normally, the 2nd function of a key needs to be pressed down for > 3 sec. to be activated. FUNCTION MODE Turn the scale on or off. Weighing Mode Zero the scale if the display drifts from zero. Exits current mode.
-
Page 8: Operation & Settings
OPERATIONS & SETTINGS NORMAL WEIGHING MODE 1. Power on the scale by pressing the ON/OFF key. 2. If the display stabilizes but doesn’t show zero, press the ZERO key to set new zero point. 3. Place the objects on the scale platform and read the weight on the indicator. Note: Objects should be placed at the center of the platform. - Page 9 ACCUMULATION MODE Accumulation can be used in both weighing and counting modes. 1. In normal weighing or counting mode, when reading is stable, press the ACC/TOTAL key to accumulate the current weight or quantity into memory, TOTAL will be blink on and off in 2 seconds.
-
Page 10: User Parameters
USER PARAMETERS 1. When the scale is in normal weighing mode, press and hold the ZERO and UNIT/COUNT keys for 3 seconds until is shown on the display. 2. In the Setup mode, press the ↑ key to change the flashing digits, press the → key to shift the flashing data entry position from left to right, and press the TARE key to confirm and move to the next parameter setting. - Page 11 PARAMETER X/XY REMARK DEFAULT P8.x 0 = 1 1 = 2 2 = 5 Division Select 0 = x1 1 = x0.1 P9.x 2 = x0.01 Decimal Point in Calibration 3 = x0.001 4 = x0.0001 5 = 10 /19 /15 P10.x 0 = kg Calibration Unit...
-
Page 12: Rs232/Usb Communications
PARAMETER X/XY REMARK DEFAULT 0 = ±0.5d 1 = ±1d 2 = ±1.5d 3 = ±2d P18.x 4 = ±3d 5 = ±4d 6 = ±5d 7 = ±6d Check Weight Stability Range 8 = ±7d 9 = ±8d 0 = FS+0d 1 = FS+9d 2 = 101%FS 3 = 102%FS... - Page 13 When Parameter P4.x in section 7 is set to 0 No RS232 and USB function. It will not transmit or receive any data although the scale is equipped with RS232 or USB. The RS232 and USB function can be only activated when scale is in normal weighing mode.
- Page 14 KEY TO SYMBOLS USED <LF> Line Feed character (hex 0AH) <CR> Carriage Return character (hex 0DH) <ETX> End of Text character (hex 03) <SP> Space (hex 20H) H1H2H3 Three status bytes. Refer to Table1 for definition. <p> Polarity character including minus sign for negative weight and a space character for positive weight W1-W7 Weight data...
-
Page 15: Troubleshooting
STATUS BITS DEFINITIONS Byte 1 (H1) Byte 2 (H2) Byte 3 (H3) 0 = Stable 0 = Not Under Capacity 01 = Normal Work Mode 1 = Not Stable 1 = Under Capacity 10 = Hold Work Mode 00 = Not Define 0 = Not at Zero Point 0 = Not Over Capacity 11 = Not Define... - Page 16 AVAWEIGH LIMITED WARRANTY AvaWeigh warrants its equipment to be free from defects IMPLIED WARRANTIES, INCLUDING THE IMPLIED in material and workmanship for a period of 1 year. WARRANTIES OF MERCHANTABILITY AND OF FITNESS This is the sole and exclusive warranty made by AvaWeigh FOR A PARTICULAR PURPOSE.
Need help?
Do you have a question about the 334BS150T and is the answer not in the manual?
Questions and answers
How do I perform calibration
To calibrate the AVA WEIGH 334BS150T, follow these steps:
1. Ensure the scale is in normal weighing mode and reading zero.
2. Press and hold both the ZERO and TARE keys to enter Calibration mode.
3. When the indicator shows a prompt, press the TARE key to proceed or ZERO to exit.
4. The scale will display its maximum capacity and then the division value.
5. Press the TARE key again to confirm and continue, or ZERO to exit.
6. Follow further prompts (not fully listed) to complete calibration using a known weight in kilograms.
Make sure you have a known calibration weight before starting.
