Resolution Honeywell RE210P Quick Start Manual

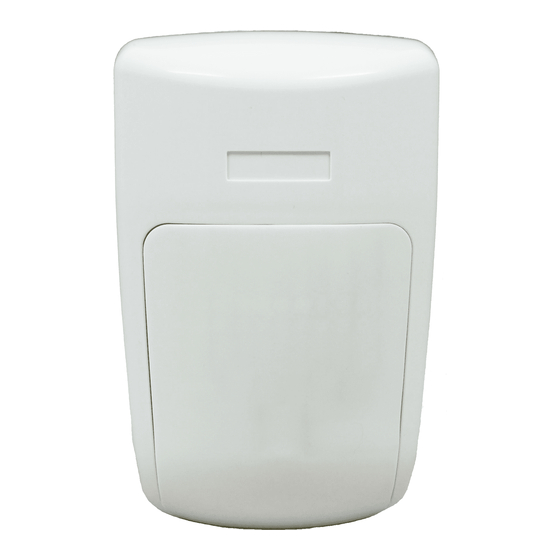

RE210P Honeywell
PIR Motion Sensor
the external contact is opened. It is battery powered and
requires no installation tools. A Pyroflex
HighBar signal processing allows for industry-leading pet
™
immunity and catch performance.

Features

• Industry-leading pet immunity and catch performance
• Supports both motion zone and an external contact zone
• Mountable on walls or in corners
• 5 year warranty
Enroll
by placing the panel into wireless enrollment mode and
then tripping the tamper three times.

Enrollment Tips

• Program as an RF type (Supervised RF)
• Loop 1 = Motion
• Loop 2 = External Contact
• Loop 4 = Tamper
Install
using the included 3M VHB
sensor on a wall or in a corner. The tape should be applied
to the back when wall mounting or to the back bevels when
corner mounting. Alternatively, screw mounting can be
done by punching out the screw mounting holes.

Installation Tips

• Mount 7.5 to 9.5 feet from the floor for an
optimal balance between catch performance
and pet immunity.
• Remove the cover and circuit board before
trying to punch out the screw mounting holes.
• Ensure the bug foam stays intact and
snug around the IR sensing element when
re-installing the circuit board.

External Contact (not evaluated by ETL)

• Use a normally-closed contact because the
motion sensor will transmit an alarm when it
sees the external contact open.
• Do not use end-of-line resistors.
Verify proper enrollment and operation using your control panel's installation manual.
