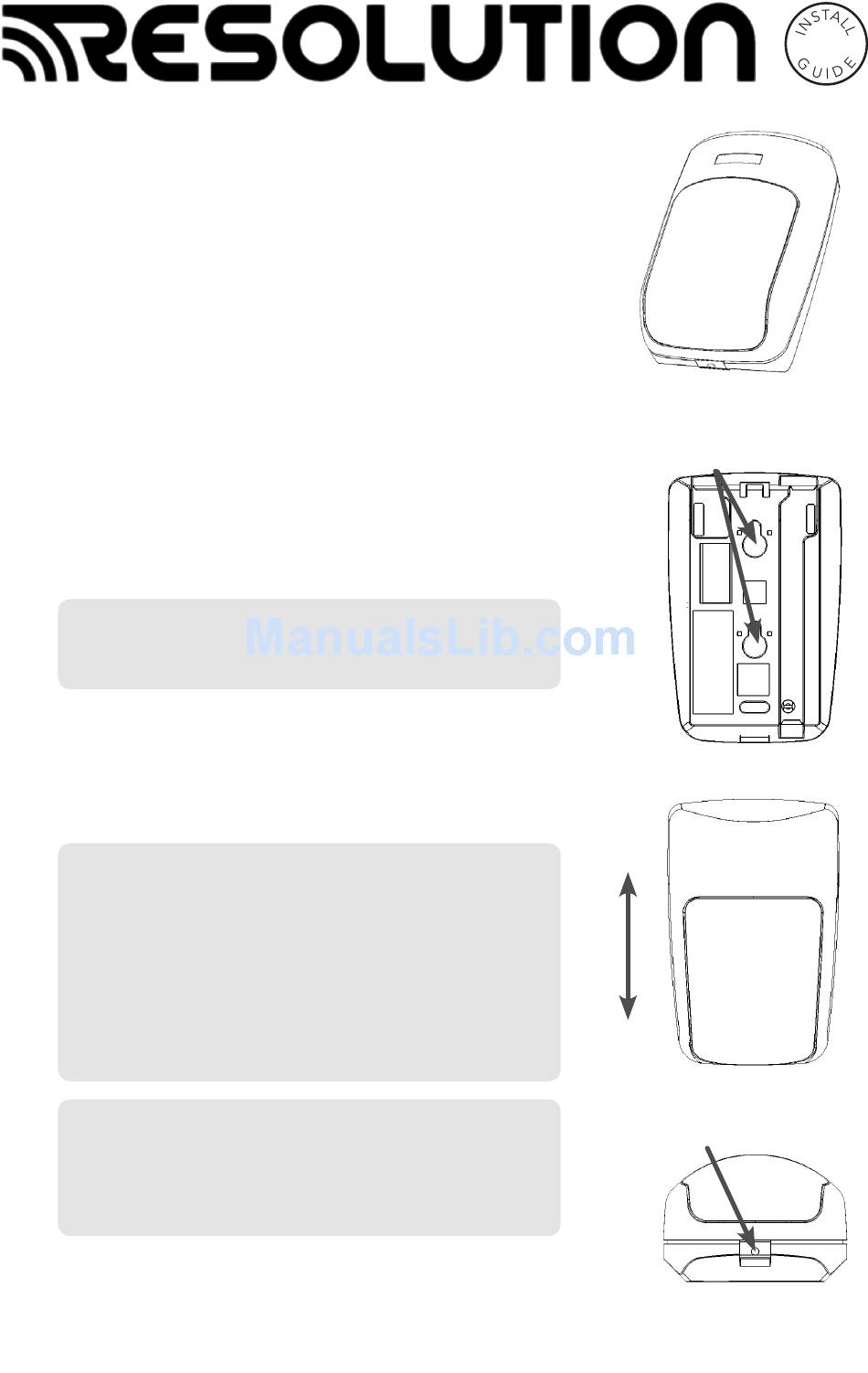

Resolution CryptiX RE610P Series Install Manual

RE610P Series CryptiX
CryptiX PIR Motion Sensor
or when the external contact is opened. It is battery
powered and requires no installation tools. A Pyroflex
sensor with HighBar
leading pet immunity and catch performance.
Features
• Industry-leading pet immunity and catch performance
• Supports both motion zone and an external contact zone
• Mountable on walls or in corners
• 5 year warranty
Enroll
by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the motion
sensor. Alternatively, the motion sensor can be enrolled by
scanning its bar code using the HeliLink app or by entering
its 8-character serial number on the interactive service
provider's web portal.
Options for sending an Enrollment Signal
• Remove the battery tab, OR
• Remove the cover to trip tamper
Install
using the included 3M VHB
sensor on a wall or in a corner. The tape should be applied
to the back when wall mounting or to the back bevels when
corner mounting. Alternatively, screw mounting can be
done by punching out the screw mounting holes.
Installation Tips
• Mount 7.5 to 9.5 feet from the floor for an
optimal balance between catch performance
and pet immunity.
• Remove the cover and circuit board before
trying to punch out the screw mounting holes.
• Ensure the bug foam stays intact and snug
around the IR sensing element when re-
installing the circuit board.
External Contact (not evaluated by ETL)
• Use a normally-closed contact because the
motion sensor will transmit an alarm when it
sees the external contact open.
• Do not use end-of-line resistors.
CE installations must use a cover-securing screw.
Use the Helix installation guide to verify proper system setup.
™ PIR Motion Sensor
alarms when motion is sensed
signal processing allows for industry-
™
tape to adhere the motion
®
™
Mounting Screw Holes
Ceiling
Floor
Cover-Securing Screw Hole
