2.3.2 The Rear Panel

The rear panel contains the following features. (View from left to right)
AC power socket: Please use the power adapter which is supplied with the MR4-WR642G
108Mbps Wireless Router only, the use of a different adapter may result in product damage.
Four 10/100Mbps RJ45 LAN ports for connecting the router to the local PC(s)
RJ45 WAN port for connecting the router to a cable/DSL Modem, or Ethernet
MR4-WR642G
Status
Off Power off
On Power on
On The router is initializing
Flashing The router is working properly
Off The router has a hardware error
Off There is no wireless device linked to the router
Flashing The Wireless function is enabled
Off There is no device linked to the corresponding port
There is a device linked to the corresponding port but no
On
activity
Flashing There is an active device linked to the corresponding port

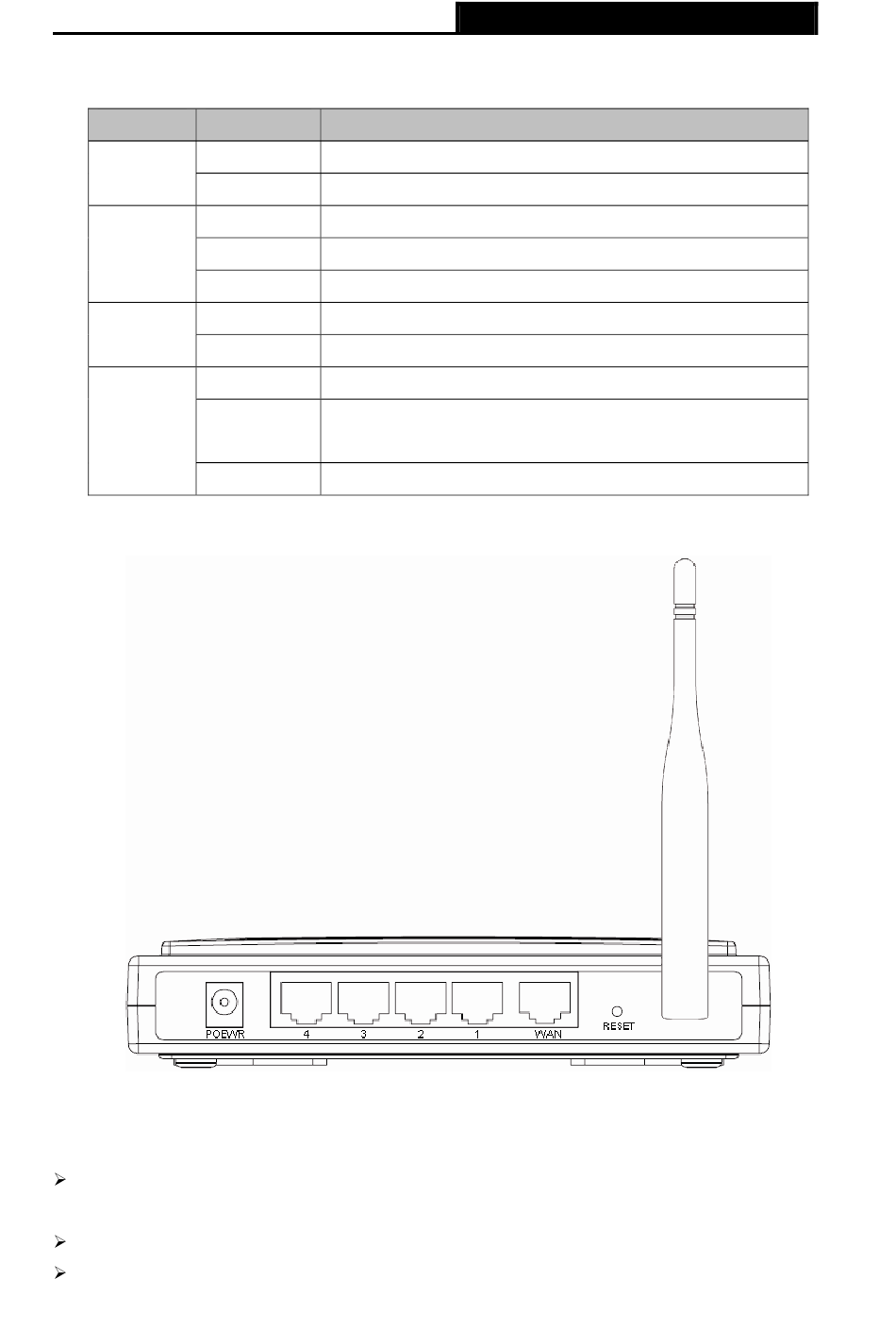

Figure 2-2 Rear Panel sketch
