TP-Link MR100 Quick Installation Manual

Quick Installation Guide

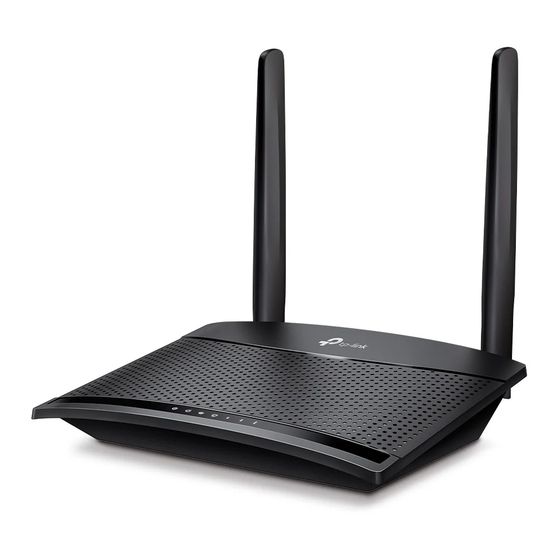

Wireless 4G LTE Router
Images may differ from actual products.
©2019 TP-Link 7106508509 REV1.0.0
2. Verify the Hardware Connection
Check the following LEDs' status. If the Internet LED
connected to the internet successfully.
Power Internet Wi-Fi
On On On
Note: If the Internet LED does not turn on, please refer to Q2 of Need Help? in this guide.
For better internet connection, make sure 2 or 3 bars of the Signal Strength LED
are lit. Otherwise, try relocating the router to a spot that may receive a stronger mobile
network signal, such as near a window.
is on, your router is
1. Connect the Hardware
Power adapter
Router
c. Connect the
power adapter
to the router.
3. Enjoy the Internet
Wired
Connect your computer to the router's LAN port via an Ethernet cable.
Wireless
a. Find the default SSID (network name)
and wireless password printed on the
label at the bottom of the router.
b.
Click the network icon of your computer or go to Wi-Fi settings of your smart device,
and then select the SSID to join the network.
a. Install the antennas and
position them upwards.
b. Insert the Micro SIM card
into the slot until you
hear a click.
SIM card requirement
!
+ +
Nano SIM card + Provided SIM card adapter + Provided sticker
Micro SIM card
Model: TL-MR100
300Mbps Wireless N 4G LTE Router
Power: 9V 0.85A
Default Access: S/N:XXXXXXXXXXXXX EU/1.0
http://tplinkmodem.net
MAC:XX-XX-XX-XX-XX-XX
MAC:XX-XX-XX-XX-XX-XX
Wireless Password/PIN: XXXXXXXX
SSID:TP-Link_XXXX
IMEI:XXXXXXXXXXXXXXX
Wireless Password/PIN: XXXXXXXX
TP-Link Technologies Co., Ltd.
No.5 Keyuan Road, Nanshan, Shenzhen, 518057, PRC
SSID:TP-Link_XXXX
Standard
SIM card
