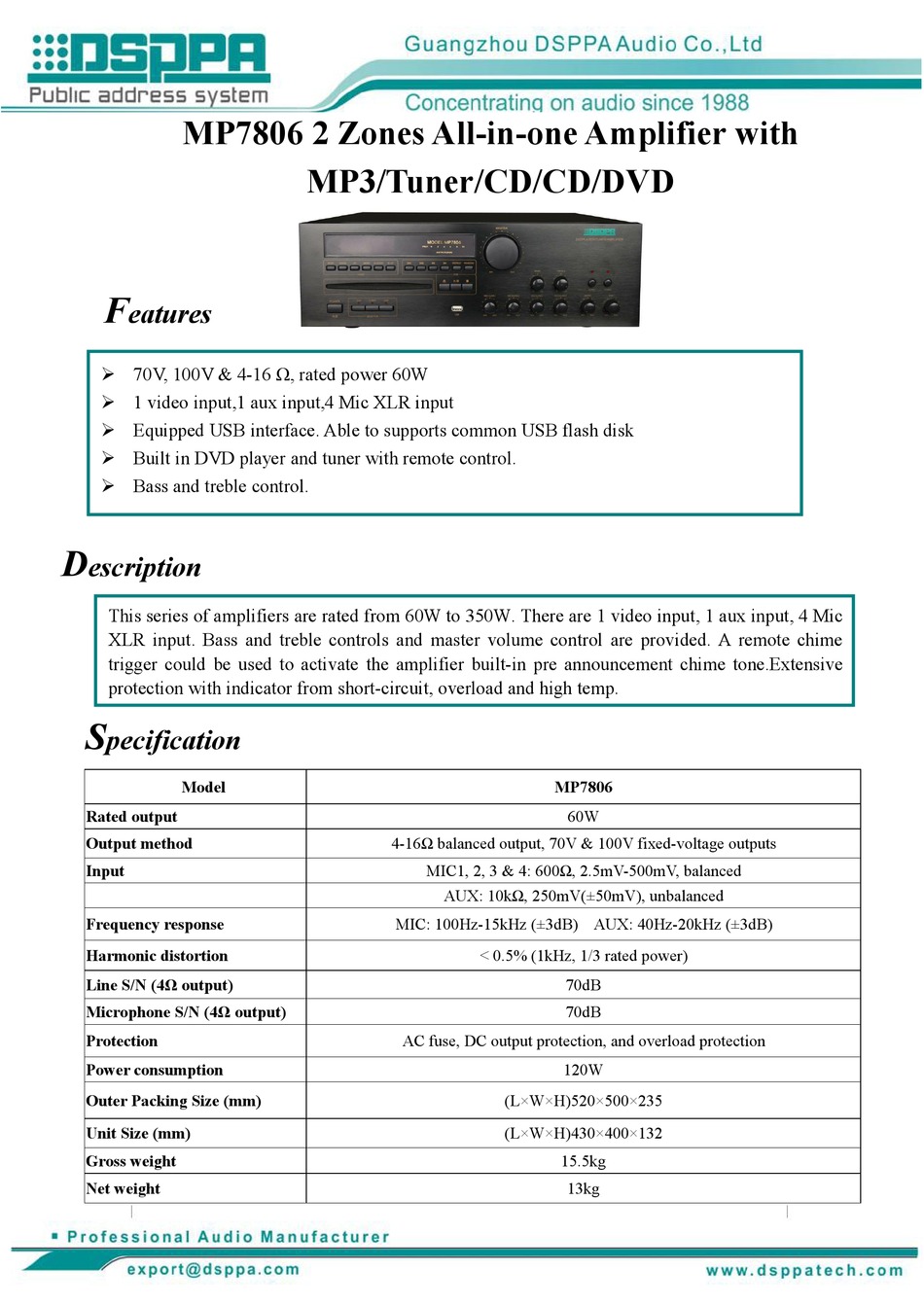

DSPPA MP7806 Quick Start Manual

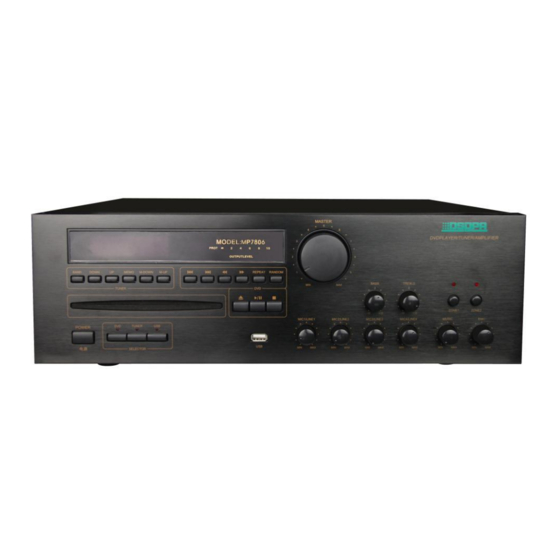

MP7806 2 Zones All-in-one Amplifier with
F
eatures
 70V, 100V & 4-16 Ω, rated power 60W
 1 video input,1 aux input,4 Mic XLR input
 Equipped USB interface. Able to supports common USB flash disk
 Built in DVD player and tuner with remote control.
 Bass and treble control.
D
escription
This series of amplifiers are rated from 60W to 350W. There are 1 video input, 1 aux input, 4 Mic
XLR input. Bass and treble controls and master volume control are provided. A remote chime
trigger could be used to activate the amplifier built-in pre announcement chime tone.Extensive
protection with indicator from short-circuit, overload and high temp.
S
pecification
Model
Rated output
Output method
Input
Frequency response
Harmonic distortion
Line S/N (4Ω output)
Microphone S/N (4Ω output)
Protection
Power consumption
Outer Packing Size (mm)
Unit Size (mm)
Gross weight
Net weight
MP3/Tuner/CD/CD/DVD
4-16Ω balanced output, 70V & 100V fixed-voltage outputs
MIC1, 2, 3 & 4: 600Ω, 2.5mV-500mV, balanced
AUX: 10kΩ, 250mV(±50mV), unbalanced
MIC: 100Hz-15kHz (±3dB) AUX: 40Hz-20kHz (±3dB)
< 0.5% (1kHz, 1/3 rated power)
AC fuse, DC output protection, and overload protection
MP7806
60W
70dB
70dB
120W
(L×W×H)520×500×235
(L×W×H)430×400×132
15.5kg
13kg
