Amcrest IP2M-848EW/ User Manual page 71

Section 4: This section of the Live tab shows the picture that the camera is broadcasting. The bitrate is shown in the
top left corner, the native resolution is shown in the top right corner, the time stamp is shown below the native
resolution, and the camera type is shown in the bottom left corner.
Section 5: This section of the Live tab shows the PTZ functionality of the camera. For more information on the features
listed in this menu, refer to section 5.2. of this user manual.
5.2 PTZ

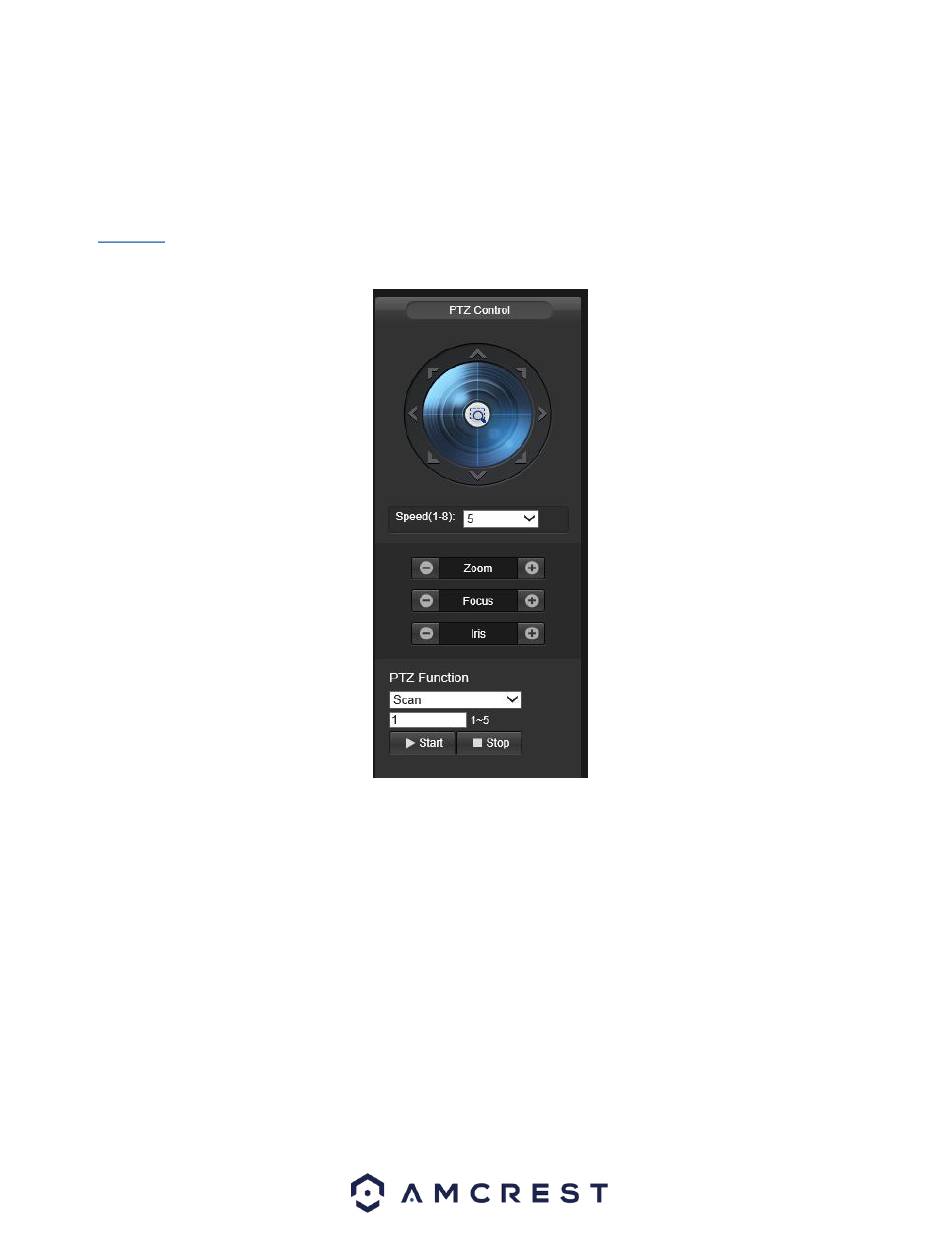

The PTZ tab allows the user to change the position of the camera. Below is a screenshot of the PTZ tab:
The PTZ control panel allows the user to position the camera in different ways
The arrows on the PTZ control panel allow the user to move the camera's position in a specific direction. The button in
the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed
dropdown box allows the user to control the speed at which the camera moves. The values range from 1 to 8, 8 being
the fastest.
The zoom and focus buttons allow the user to digitally zoom in and out, focus, and just the camera's image on the live
screen.
The dropdown box under PTZ Function allows the user to configure presets, scans, tours, etc.
Preset allows the user to designate specific PTZ positions for the camera. To create and manage presets, follow the
steps below:
o
Configure the camera positioning as needed.
o
Input the preset number, and then click the + Add button
o
Click - Del to delete the current preset.
o
Click Go To access a preset.
71
