WWW.GAMAINC.COM

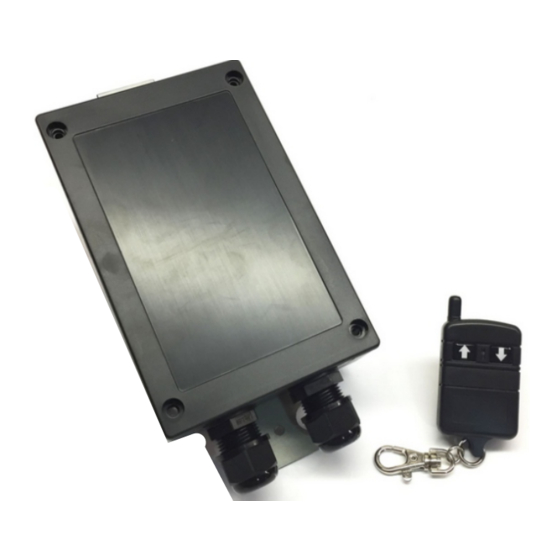

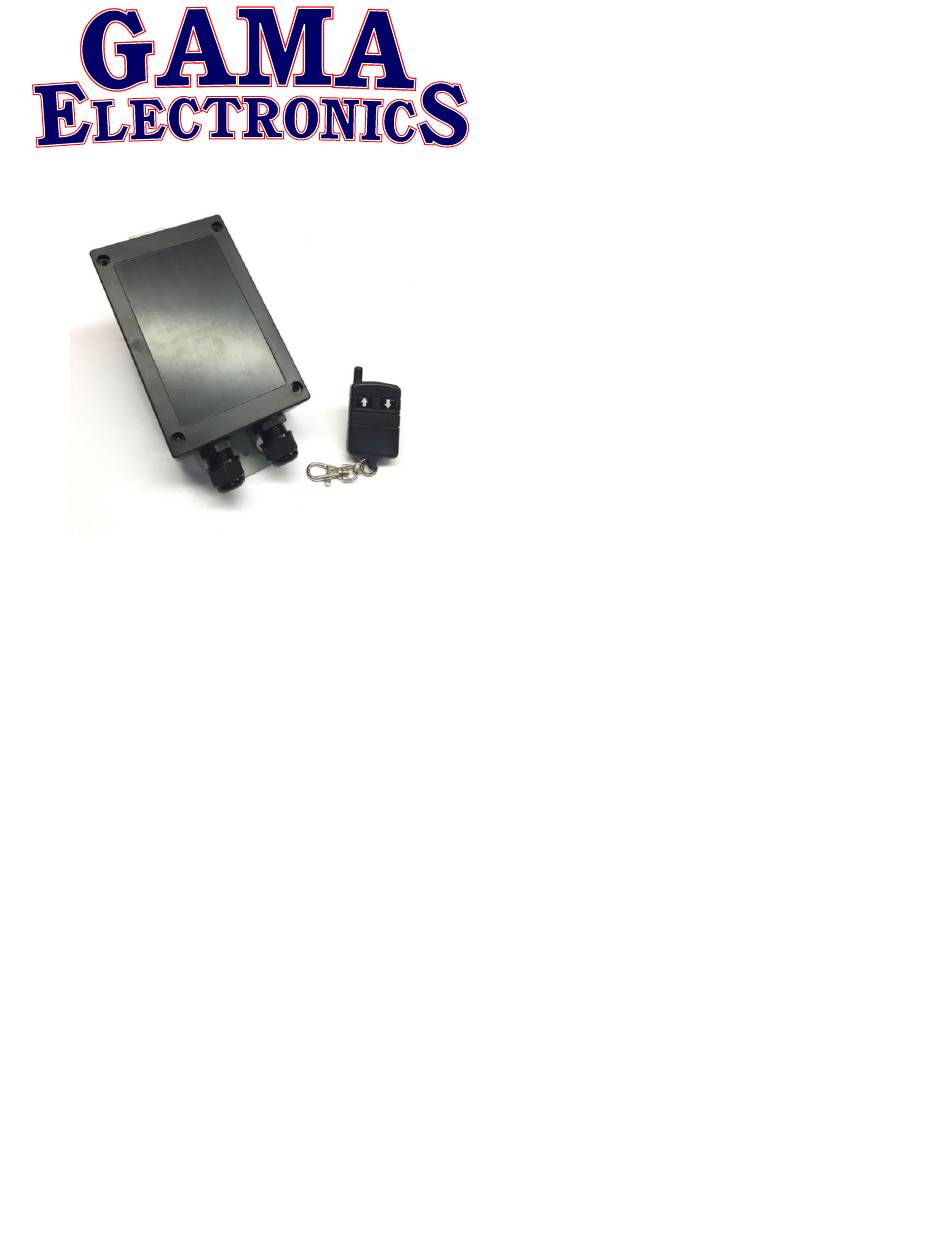

The RF240V-2WP is a 340MHz AC motor control, intended to be used in conjunction with a 2-Button transmitter. The
receiver can be configured for either momentary or latching operation. The unit operates on 240VAC and provides two
isolated dry contact closures. All of the electronic components are encapsulated so the receiver is capable of being
operated in harsh environments.
Momentary and Latching Operation Setup:
To place a control in momentary mode set ALL 4 dip switch settings to the OFF position. In momentary mode, the relay
output is energized as long as a transmitter button is held down. Once the button Is released, operation will cease.
To place a control in latching mode se ALL 4 dip switch settings to the ON position. Pressing the transmitter button once
will energize the relay output. Pressing the same button a second time will de-energize the relay output.
Maximum Ratings: Power for the receiver is 240VAC. The output relays are rated at 25A @ 240VAC, 1½ HP 240VAC.
RF240V-2WP
Instruction Manual
Included in this Kit:
(1) RF240V-2WP Receiver
(1) 2-Button Transmitter with Light
(1) Long Range Antenna LRA340
Available accessories:
- Package of 6 A23 12V Alkaline Batteries A23-6
- 2-Button Waterproof Transmitter KF340-2WP
- Rechargeable Transmitter GKF-WPTX-2
- 2-Button Keyfob Transmitter KF340-2
**See PAGE 3 FOR SETUP**
Page 1 REV A 01/04/19
Advertisement
Table of Contents
Related Manuals for GAMA Electronics RF240V-2WP-NIS
Summary of Contents for GAMA Electronics RF240V-2WP-NIS
- Page 1 RF240V-2WP Instruction Manual WWW.GAMAINC.COM Included in this Kit: (1) RF240V-2WP Receiver (1) 2-Button Transmitter with Light (1) Long Range Antenna LRA340 **See PAGE 3 FOR SETUP** Available accessories: - Package of 6 A23 12V Alkaline Batteries A23-6 - 2-Button Waterproof Transmitter KF340-2WP - Rechargeable Transmitter GKF-WPTX-2 - 2-Button Keyfob Transmitter KF340-2 The RF240V-2WP is a 340MHz AC motor control, intended to be used in conjunction with a 2-Button transmitter.
- Page 2 RF240V-2WP Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique internal address along with the data as to which button is pressed and transmitted. The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter.
- Page 3 100 feet. When additional range is needed, or if the control is placed locations adverse to RF signal reception, a long range antenna can be added to the system. GAMA Electronics long range antenna, part number LRA- 340, replaces the internal antenna on the system. In normal operating conditions expected range is greater than 500 feet.
- Page 4 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
